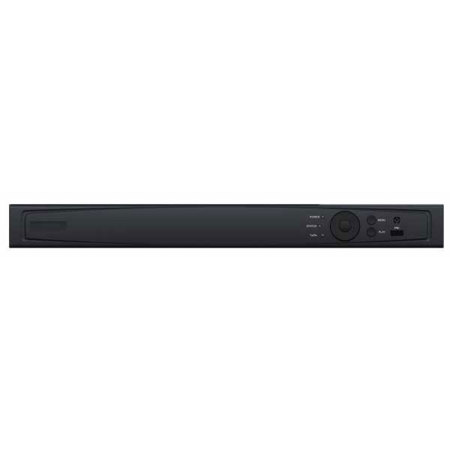

Securitytronix 16 Channel 4K Tribrid Video Recorder, No HDD
See all Securitytronix items

Securitytronix 16 Channel 4K Tribrid Video Recorder for TVI, AHD, IP and Analog Cameras, No HDD

SKU: STTVRAR31416

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Securitytronix TVR-AR314 Specifications

  • Video compression

    H.264

  • Video input

    16-ch
    BNC interface (1.0Vp-p, 75 Ohms), supporting coaxitron connection

  • Supported HDTVI input

    1080p/25Hz, 1080p/30Hz, 720p/25Hz, 720p/30Hz, 720P/50Hz, 720p/60Hz

  • Supported AHD input

    720p/25Hz, 720p/30Hz

  • CVBS input

    Supported

  • IP video input

    2-ch
    Up to 2.0 MP resolution

  • Audio compression

    G.711u

  • Audio input

    1-ch, RCA (2.0 Vp-p, 1 KOhms)

  • CVBS output

    Supported

  • HDMI/VGA output

    1-ch, 4K (3840 x 2160)/30Hz, 2K (2560 x 1440)/60Hz, 1920 x 1080/60 Hz, 1280 x 1024/60 Hz, 1280 x 720/60Hz, 1024 x 768/60 Hz

  • Encoding resolution

    When 1080p Lite mode not enabled: 1080p(non-real-time)/720p/VGA/WD1/4CIF/CIF
    When 1080p Lite mode enabled: 1080p lite/720p lite/VGA/WD1/4CIF/CIF

  • Frame rate

    Main stream: 1/16 fps to real time frame rate
    Sub-stream: WD1/4CIF at 12fps/2CIF (non-real-time); CIF/QVGA/QCIF (real time)

  • Video bit rate

    32 Kbps to 6 Mbps

  • Audio output

    1-ch, RCA (Linear, 1 KOhms)

  • Audio bit rate

    64 Kbps

  • Dual-stream

    Supported

  • Stream type

    Video, Video & Audio

  • Synchronous playback

    16-ch

  • Remote connections

    128

  • Network protocols

    TCP/IP, PPPoE, DHCP, EZVIZ Cloud P2P, DNS, DDNS, NTP, SADP, NFS, iSCSI, UPnP, HTTPS, ONVIF

  • SATA

    2 SATA interfaces

  • Internal HDD

    Up to 6TB HDD capacity

  • Two-way audio input

    1-ch, RCA (2.0 Vp-p, 1 KOhms) (using the audio input)

  • Network interface

    1, RJ45 10M/100M/1000M self adaptive Ethernet interface

  • USB interface

    1 USB 2.0 on the front panel
    1 USB 3.0 on the rear panel

  • Serial interface

    1; RS-485 serial interface, half-duplex

  • Power supply

    12 VDC

  • Consumption (without HDD)

    < 30 W

  • Working Temperature

    -10 to 55 deg. C (14 to 131 deg. F)

  • Working humidity

    10% to 90%

  • Dimensions (WxDxH)

    12.4 x 9.5 x 1.8" (31.50 x 24.13 x 4.57cm)

  • Weight

    < 4.4 lbs (2.00kg) (without HDD)

1 Accessories for Securitytronix 16 Channel 4K Tribrid Video Recorder for TVI, AHD, IP and Analog Cameras, No HDD

  • All Accessories (1)
  • Monitors (1)
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
Orion Images Economy Wide Series 24RCE 23.6" Full HD LED CCTV Monitor
$325.00

About Securitytronix TVR-AR314

• Compatible with HD-TVI, AHD, IP and analog cameras
• Supports HDCAM-C protocol for connecting cameras over coax
• H.264+ compatible for high video quality with low bitrates
• Simultaneous HDMI, VGA and CVBS outputs
• HDMI/VGA output at up to 4K (3840 x 2160) resolution
• One-key recording configurable
• Main stream and sub-stream parameters configurable for simultaneous recording
• Supports channel-zero encoding
• Supports 1080p lite mode for real-time 1080p lite and 720p lite resolution
• Instant playback for assigned cameras during multi-channel live view mode
• Up to 4/8/16-ch synchronous playback at 1080p resolution
• Playback at up to 256X speed
• Main stream and sub-stream selectable for local/remote playback
• Playback by smart search and VCA search
• Customization of tags, searching and playing back by tags
• Manual video quality diagnostics
• Supports locking and unlocking of video files
• HDD quota and group management; different capacity can be assigned to different cameras under quota mode
• Two SATA interface provided
• One RJ45 10M/100M/1000Mbps self adaptive network interface
• Supports access via Cloud P2P
• Supports SIMPLE DDNS (Dynamic Domain Name System)
