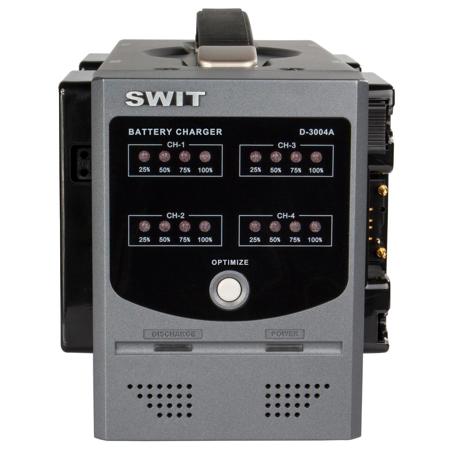

SWIT Electronics 4-channel Simultaneous Charger for Gold Mount Batteries

The SWIT D-3004A is a 4-channel simultaneous charger for Gold mount batteries, with 1 channel discharging function. It will self-identify Li-Ion / Ni-MH batteries, and launch the compatible charging program. The 4-level LEDs indicate the charging status of each channel.

D-3004A is compatible with SWIT Gold Mount batteries, including Li-ion, Ni-MH and Ni-Cd batteries, and can clear the memory effect of Ni-Cd batteries.

4-ch Simultaneous Charger For Gold mount batteries
With Max 200W power, the D-3004A can charge 4pcs Gold mount camera batteries simultaneously. The charging output is DC15-20V, 2A each channel.

LED Charging Indicators for Each Channel
The D-3004A has LED charging indicators on the front panel, display the real time capacity percentage of each channel when charging.

Discharging Function
When the batteries will not be used for a period of time, it is recommended that keep half capacity in the batteries before storage, to ensure a good condition of the cells and prolong the battery life. So the CH-1 channel of D-3004A can discharge the battery. Mount the battery on CH-1, and press "OPTIMIZE" button on the front panel, the battery will start to discharge at average 1A current.
