SWIT S-4607 Bi-directional Optical/SDI Converter
See all Swit Electronics items

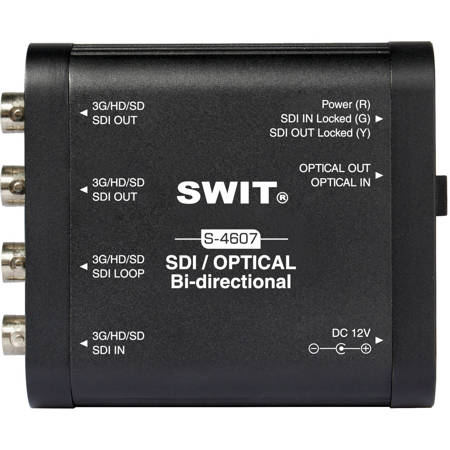

SWIT Electronics S-4607 Bi-directional Optical/SDI Converter

SKU: SWTS46070
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

SWIT Electronics S-4607 Specifications

  • Input

    3G/HD/SD SDIx1
    Opticalx1

  • Output

    3G/HD/SD SDI loop out x1, Optical convert out x1
    3G/HD/SD SDI convert out x2

  • Optical Format

    SMPTE 297-2006:
    Input wavelength: 1260-1580nm
    Output wavelength: 1310nm

  • SDI Format

    SMPTE-425M: 1080p (60 / 59.94 / 50)
    SMPTE-274M:
    1080i (60 / 59.94 / 50)
    1080p (30 / 29.97 / 25 / 24 / 23.98)
    SMPTE-296M: 720p (60 / 59.94 / 50)
    SMPTE-125M: 480i (59.94)
    ITU-R BT.656: 576i (50)

  • Max SDI cable length

    100 m

  • Max SM fiber length

    20 km

  • Power

    =4W

  • Working Voltage

    DC 6-18V

  • Working Environment

    Temperature: 0 deg.C -+70 deg.C, Humidity:10%-90%

  • Dimensions

    98x84x29mm / 3.86x3.31x1.14"

  • Net weight

    250g / 8.82oz

0 Accessories for SWIT Electronics S-4607 Bi-directional Optical/SDI Converter

About SWIT Electronics S-4607

The Swit S-4607 is a portable full-duplex bi-directional Optical fiber and 3G/HD/SD-SDI converter. It can convert SDI input to Optical output and convert Optical input to SDI output. The single-mode fiber ensures max 20km reliable transmission and support hot swap of optical module. The S-4607 is heavy duty housing design, protecting the BNC connectors well and supplied various screw threads in the bottom, for convenient installing.

SWIT Electronics S-4607 Features

  • Portable full-duplex bi-directional converter
  • Convert 3G/HD/SD-SDI to Optical
  • Convert Optical to 3G/HD/SD-SDI
  • Single-mode fiber, max 20km reliable transmission
  • Support hot swap of optical module
  • Power/SDI status indicator
  • Heavy duty housing
  • Bottom screw threads for installing

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Portable full-duplex bi-directional converter
  • Convert 3G/HD/SD-SDI to Optical
  • Convert Optical to 3G/HD/SD-SDI
  • Single-mode fiber, max 20km reliable transmission
  • Support hot swap of optical module
  • Power/SDI status indicator

What's in the box:

  • Swit S-4607 Bi-directional OPTICAL/SDI Converter
  • Power Adaptor
  • Swit 2 Years Warranty
