Name: Tonelux Out of the Box 16-Channel Stereo Summing Mixer
Brand: Tonelux
SKU: TLOTB16
Price: 1499.99 USD
Availability: Discontinued

Tonelux Out of the Box 16-Channel Stereo Summing Mixer

Tonelux OTB-16

Tonelux

Adorama

Audio

PA & Live Sound

Mixers

Recording Mixers

Tonelux Recording Mixers

Tonelux OTB-16

Buy: Tonelux Out of the Box 16-Channel Stereo Summing Mixer Circuitry: Analog, Number of Bus Outs: 2

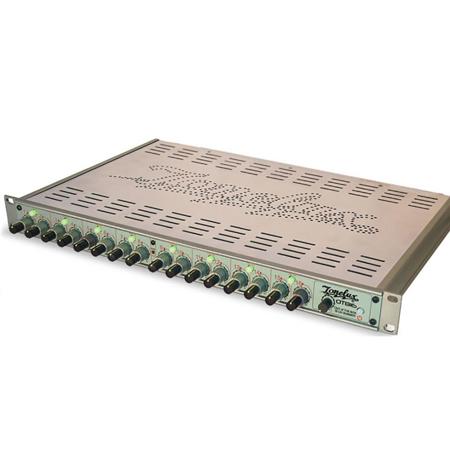

The OTB16 is a 16 channel 1U mixer with 16 balanced inputs and the famous Tonelux discrete summing bus. Each channel has a level control, a panner with a center detent, a level indicator and each pair of channels has a LINK button to link the right level control to the left control Access to the OTB16 is through 2 eight channel Balanced Dsub inputs at a level of +4dBu nominal, using the DA-88 type pinout.The summing of the 16 channels is through the famous Tonelux TX-240 and TX-260 discrete op-amps and then through the Tonelux TX-100 output transformer. The Mixer output can be adjusted with the MSTR Fader, sending the signal out of the two XLR connectors marked "MIX OUT".Additionally there is a Monitor output for monitoring or for expansion, which is balanced but transformer less. This output is before the MSTR Fader. Also on the rear panel are 2 additional Balanced inputs to the MIX bus via 1/4" jacks. These can be used to insert other mixers into the Tonelux mix bus or they can be used as the inputs from other OTB-16 mixers for expansion. The power for the OTB-16 can be 120 or 230 volts AC 50/60 Hz.
