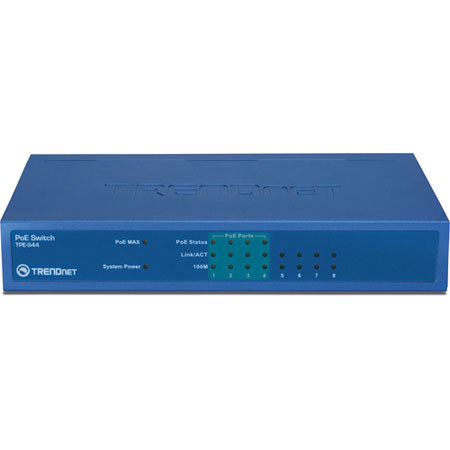

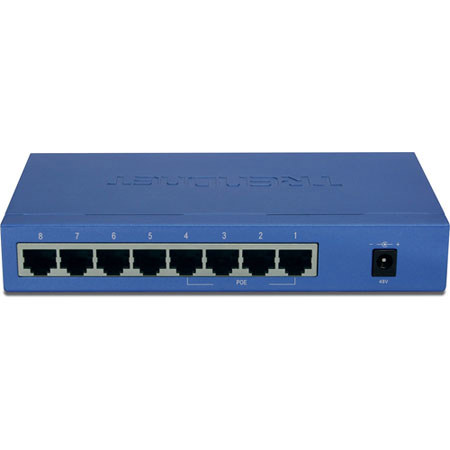

TRENDnet TPE-S44 8-Port 10/100Mbps PoE Switch
See all TRENDnet items

TRENDnet TPE-S44 8-Port 10/100Mbps PoE Switch

SKU: TNTPES44
(1)

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
TRENDnet TPE-TG44G 8-Port Gigabit GREENnet PoE+ Switch
$96.99
$67.43
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2011-01-14T19:00:00

Rated 5 out of 5

Excellent Item for the money

It only has a couple of months running but works like a charm! Cheap, and it works really well for the price I paid, worth every penny!

GParra

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

TRENDnet TPE-S44 Specifications

  • Hardware Standard

    IEEE 802.3 10Base-T
    IEEE802.3u 100Base-TX
    IEEE 802.3af Power over Ethernet

  • Network Media

    10Mbps: Cat 3,4,5 Unshielded Cable
    100Mbps: Cat 5, 5E, 6 Unshielded Cable

  • Protocol / Topology

    CSMA/CD ; Star

  • Ports

    4 x 10/100Mbps Auto-MDIX POE Ports (1~4)
    4 x 10/100Mbps Auto-MDIX Fast Ethernet Ports (5 ~8)

  • Data Transfer Rate

    Ethernet: 10/20Mbps (half/full duplex)
    Fast Ethernet: 100/200Mbps (half/full duplex)

  • RAM Buffer / Filtering

    96 Kbytes / 1K entry per device

  • Power

    48V DC 0.8A External Power Adapter

  • Diagnostic LEDs

    Per Unit: Power, Power MAX
    Per Port: Link/Activity, Speed
    PoE: PoE Status, Link/Activity, Speed

  • Power over Ethernet

    Power budget: 30 watts (max)
    Up to 15.4 watts per Port; PD classification Identify
    PoE Over Current Protection; PoE Circuit Sorting Protection
    PoE Power on RJ-45 pin 3,6 for Power+ and pin 1,2 for Power-

  • Power Consumption

    6.3 watts max (no PD Device connected)
    36.3 watts max (with 30w PoE Device connected)

  • Temperature

    Operating: 0½ ~ 40½C (32½ ~ 104½F)
    Storage: -10½ ~ 70½C (14½ ~ 158½F)

  • Humidity

    10%- 90% (non-condensing)

  • Certification

    FCC, CE

  • Dimensions

    171 x 98 x 29mm (6.7 x 3.7 x 1.1in.)

  • Weight

    430g (13.8oz.)

About TRENDnet TPE-S44

The TRENDnet TPE-S44 8-Port Smart Switch integrates Power over Ethernet (PoE) and network management features into a cost effective and scalable solution. The TPE-S44 reduces equipment cost by delivering data and power over existing network cable infrastructure.

TRENDnet TPE-S44 Features

  • IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
  • 8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports
  • Built-in 4 PoE Ports (Port 1 ~ Port 4)
  • Supports PoE Power Maximum 15.4 watts for each POE port
  • Supports PoE Powered Device (PD) classification identify
  • Full Wire-Speed Non-Blocking Reception and Transmission
  • Store and Forward Switching Method
  • 96Kbytes RAM Data Buffer and 1K entries MAC Address Table
  • Extensive Diagnostic LED's on the Front Panel
  • IEEE 802.3x Flow Control for Full-Duplex Mode; Back Pressure Flow Control for Half-Duplex Mode

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • IEEE 802.3af Power over Ethernet (PoE) Standard Compliant
  • 8 x 10/100Mbps Auto-Negotiation and Auto-MDIX Fast Ethernet RJ45 Ports
  • Built-in 4 PoE Ports (Port 1 ~ Port 4)
  • Supports PoE Power Maximum 15.4 watts for each POE port
  • Supports PoE Powered Device (PD) classification identify
  • Full Wire-Speed Non-Blocking Reception and Transmission

What's in the box:

  • TRENDnet TPE-S44 8-Port 10/100Mbps PoE Switch
  • Multi-Language Quick Installation Guide
  • Power Adapter (48V DC 0.8A)
  • TRENDnet 5 Years Limited Warranty
