Allen & Heath ZED-22FX 22-Channel Multipurpose Mixer - SKU#1510520

Picture does not represent the actual item
See what's in the box

See all Allen & Heath items

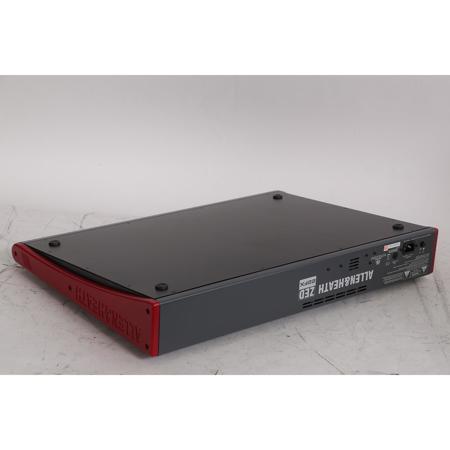

Used Allen & Heath ZED-22FX 22-Channel Multipurpose Mixer with FX and USB In/Out for Live Sound/Recording, 20Hz-20kHz Frequency, 16 Mono Mic/line, 4 Stereo Channels

SKU: US1510520
Be the first to review this item

This item is no longer available.

Buy it New

Allen & Heath ZED-22FX 22-Channel Multipurpose Mixer with FX and USB In/Out
Allen & Heath ZED-22FX 22-Channel Multipurpose Mixer with FX and USB In/Out
$1299.99
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Browse our FAQ

See Terms & Conditions

Allen & Heath ZED-22FX Specifications

  • Input: Mono channel (XLR) Input

    +6 to -63dBu for nominal (+17dBu in max)

  • Input: Mono channel Line Input

    +10 to -26dBu (+30dBu maximum)

  • Input: Insert point (TRS Jack socket)

    0dBu nominal +21dBu maximum

  • Input: Stereo Input (Jack sockets)

    0dBu nominal (control = Off to +10dB)

  • Input: Stereo input (phono sockets)

    0dBu nominal (control = Off to +10dB)

  • Output: L, R & Mono Outputs

    0dBu nominal. +21dBu maximum.

  • Output: Aux Outputs (Jack sockets)

    0dBu nominal. +21dBu maximum.

  • Output: Alt Outputs (phono sockets)

    0dBu nominal. +21dBu maximum.

  • Output: Rec Outputs (phono sockets)

    0dBu nominal. +21dBu maximum.

  • Frequency Response

    Mic in to Mix L/R Out, 30dB gain +0.5/-1dB 20Hz to 20kHz
    Line in to Mix L/R out 0dB gain +0.5/-1dB 10Hz to 30kHz
    Stereo in to Mix L/R out +0.5/-1dB 10Hz to 30kHz

  • THD+n

    Mic in to Mix L/R Out, 0dB gain 1kHz +10dBu out 0.004%
    Mic in to Mix L/R Out, 30dB gain 1kHz 0.014%
    Line in to Mix L/R out 0dB gain 0dBu 1kHz 0.005%
    Stereo in to Mix L/R out 0dB gain +10dBu 1kHz 0.003%

  • Headroom

    Analogue Headroom from nominal (0Vu) 21dB
    USB in & out headroom from nominal (0Vu) 14dB

  • USB Audio CODEC (Coder/Decoder)

    USB Audio In/Out USB 1.1 compliant 16bit
    Sample Rate 32, 44.1, or 48kHz

  • Noise

    Mic Pre EIN at max gain 150R input Z 22-22kHz -127dBu
    Mix L/R out, L/R faders = 0, 22-22kHz ZED-22FX -84dBu

  • Dimensions

    18.3 x 25.4" / 464.82 x 645.16mm

  • Weight

    23.14lbs / 10.5kg

About Allen & Heath ZED-22FX 22-Channel Multipurpose Mixer - SKU#1510520

Enhance your live sound and recording experiences with the high-quality Allen & Heath ZED-22FX 22-Channel Multipurpose Mixer. This professional-grade mixer is designed for musicians and sound engineers who demand versatility and advanced features in a compact, travel-friendly package.

The ZED-22FX stands out with its 22 channels, including 16 mono mic/line inputs and 4 stereo channels, offering ample options for mixing vocals, drums, guitars, bass, and keys. Its wide frequency range of 20Hz-20kHz ensures a broad spectrum of sound, capturing every nuance of your audio performance.

This mixer is equipped with a USB in/out feature, making it incredibly easy to capture stereo recordings and integrate with your computer for live sound applications. No more fumbling with soundcard inputs or dealing with incorrect levels. Simply connect a USB cable to your ZED-22FX, select the USB routing on the mixer and the device on your computer, and you're ready to record or stream with CD-quality audio.

The ZED-22FX also boasts a dedicated FX bus and 16 internal time-delay effects, adding extra ambience to your mix. These effects, crafted by expert DSP engineers, are designed to enhance every performance and are easily controlled using three buttons and nine display LEDs.

The mixer's responsive 3-band, swept mid-frequency EQ design utilizes MusiQ, optimized for equalizing individual instruments. The DuoPre pre-amps, based on the proven pre-amps from the successful PA series, offer a huge 69dB gain range, ensuring better control of signal level and minimal noise.

The ZED-22FX also comes with Cakewalk SONAR x1 LE, allowing you to start creating your own music right away. Just add a PC, and you're ready to record from your ZED mixer, create tracks, and arrange songs.

In summary, the Allen & Heath ZED-22FX 22-Channel Multipurpose Mixer offers a powerful, flexible solution for live sound and recording, combining high-quality components, advanced features, and user-friendly design in a durable, portable package.

Used Guarantee

30-day money back!

Sell or Trade your Gear

Get started in 3 easy steps

What's in the box:

  • Allen & Heath ZED-22FX 22-Channel Multipurpose Mixer with FX and USB In/Out
  • USB Cable
  • Power Cable
  • Carrying Bag
