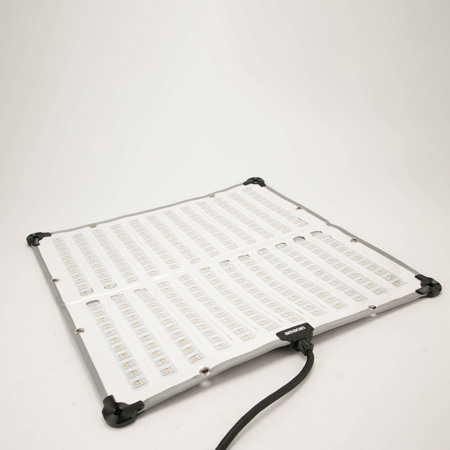

Used Aputure Amaran F22c 2x2' 200W RGBWW Flexible LED Mat Fixture, Gold-Mount

SKU: US1693852

This item is no longer available.

Overview
Compare
Learn
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

2023-11-01T07:31:44

Rated 4 out of 5

Very good but the output little disappointing

I am overall happy with the light, It is versitile and easy to assemble. I read how people complained about the fan being loud, but it is not bad at all. However, I was a bit disappointed with its output. It is a 200W light however when I put it against my 1x4 Aladdin (also 200w) the Amaran is maybe half the intensity. Perhaps, being RGB it cannot match the output of a bi-color light, so if that is the case than it's a fair trade off.

RALPH K.

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Aputure Amaran F Specifications

  • Photometrics

    With Soft Box (2.5 Stop Diffusion)

    2500K
    0.5m: 18,040 lux / 1,676 fc
    1m: 5,500 lux / 511 fc
    2m: 672 lux / 62 fc

    3200K
    0.5m: 18,760 lux / 1,743 fc
    1m: 5,750 lux / 534 fc
    2m: 703 lux / 65 fc

    4300K
    0.5m: 19,720 lux / 1,832 fc
    1m: 5,930 lux / 551 fc
    2m: 736 lux / 68 fc

    5600K
    0.5m: 21,260 lux / 1,975 fc
    1m: 6,420 lux / 596 fc
    2m: 790 lux / 73 fc

    6500K
    0.5m: 22,250 lux / 2,067 fc

  • Photometrics (Contd.)

    1m: 6,770 lux / 629 fc
    2m: 823 lux / 77 fc

    7500K
    0.5m: 23,250 lux / 2,160 fc
    1m: 7,080 lux / 658 fc
    2m: 870 lux / 81 fc

    With Soft Box (1/2 Grid Cloth)

    2500K
    0.5m: 11,260 lux / 1,046 fc
    1m: 3,780 lux / 351 fc
    2m: 505 lux / 47 fc

    3200K
    0.5m: 11,900 lux / 1,106 fc
    1m: 4,030 lux / 374 fc
    2m: 534 lux / 50 fc

    4300K
    0.5m: 12,470 lux / 1,159 fc
    1m: 4,300 lux / 400 fc

  • Photometrics (Contd..)

    2m: 564 lux / 52 fc

    5600K
    0.5m: 13,400 lux / 1,245 fc
    1m: 4,610 lux / 428 fc
    2m: 603 lux / 56 fc

    6500K
    0.5m: 13,860 lux / 1,288 fc
    1m: 4,840 lux / 450 fc
    2m: 630 lux / 59 fc

    7500K
    0.5m: 14,610 lux / 1,357 fc
    1m: 4,980 lux / 463 fc
    2m: 661 lux / 61 fc

    With Soft Box (2.5 Stop Diffusion)

    2500K
    0.5m: 8,800 lux / 818 fc
    1m: 2,690 lux / 250 fc
    2m: 333 lux / 31 fc

  • Photometrics (Contd...)

    3200K
    0.5m: 9,110 lux / 846 fc
    1m: 2,870 lux / 267 fc
    2m: 352 lux / 33 fc

    4300K
    0.5m: 9,570 lux / 889 fc
    1m: 3,000 lux / 279 fc
    2m: 372 lux / 35 fc

    5600K
    0.5m: 10,340 lux / 961 fc
    1m: 3,260 lux / 303 fc
    2m: 402 lux / 37 fc

    6500K
    0.5m: 10,820 lux / 1,005 fc
    1m: 3,400 lux / 316 fc
    2m: 421 lux / 39 fc

    7500K
    0.5m: 11,340 lux / 1,054 fc
    1m: 3,550 lux / 330 fc
    2m: 441 lux / 41 fc

  • CCT

    2500K - 7500K

  • CRI

    >=95

  • TLCI

    >=97

  • CQS

    >=96

  • TM-30 RF (Average)

    94

  • TM-30 RG (Average)

    102

  • SSI (Tungsten)

    >=83

  • SSI (D56)

    >=73

  • Color Chipset

    Red, Green, Blue, Warm White, Cool White

  • Beam Angle (HalfPeak Angle)

    Control Grid: 45 Degree

  • Max Power Output

    <=200W

  • Max Power Consumption

    <=240W

  • Operating Current

    5A

  • Operating Voltage

    AC Power Supply: 48V DC
    3-Pin XLR DC: 48V/5A DC

    Gold-Mount Battery
    Half Output: 12 - 16.8V (14.4V/10A); 22V - 33.6V (26V/6A, 28.8V/5A)
    Full Output: 22V - 33.6V (26V/11A, 28.8V/10A)

  • DC Input

    48V 3-Pin XLR

  • AC Power Cable

    IEC C13 AC Power Cable (4m)

  • Operating Temperature

    -4 Degree F - 113 Degree F (-10 Degree C - 40 Degree C)

  • Control Methods

    On-board, SidusLink App, DMX via USB-C to 5-Pin DMX512 In & Out Adapter Cable

  • Connectivity

    Bluetooth 5.0 (Sidus Mesh)

  • Bluetooth Operating Range

    >=262.5' (80m)

  • Firmware Upgradeable

    Sidus Link OTA

  • Display Type

    OLED

  • Cooling Method

    Lamp Head:Passive Cooling
    Control Box: Active Cooling

  • Mounting

    Tilting Mounting Support, Right-Angle Baby Pin Adapte (16mm), Straight Baby Pin Adapter (16mm)

  • Estimated LED Lifetime (L70)

    50,000 Hours

  • Estimated LED Lifetime (L70)

    50,000 Hours

  • Estimated Color Shift Over Lifetime

    2% over 6,000 Hours (CCT)

  • Certifications

    CE, FCC, cTUVus, KC, NCC, ROHS

  • Battery Info

    Optional, not included

  • Battery Material

    Lithium Ion

  • Battery Type

    Non-universal

  • Battery Quantity

    1

  • Dimensions

    Fixture
    No Accessory: 23.6x 23.6x .2" (60x 60x 0.5cm)
    With Soft Box: 24.6 x 24.6 x 4.13" (62.5 x 62.5 x 10.5cm)

    Aperture: 20.4x 20" (52x 51cm)
    Control Box: 7.4x 5.9x 2.7" (19x 15x 7cm)
    Carrying Case: 25.9x 13.7x 4.1" (66x 35x 10.5cm)

  • Weight

    Fixture
    No Accessory: 30.4 oz (861.82g)
    With Softbox: 6.25 lbs (2.83kg)

    Control Grid: 4.16 oz (116g)
    Control Box: 2.6 lbs (1.2kg)
    Power Supply: 2.4 lbs (1.1kg)
    Mounting Bracket: 22.4 oz (635.02g)
    Total: 17.45 lbs (7.92kg)

Related Articles & Videos

Aputure Announces New Mat Lights and Tube Lighting Options

Aputure Announces New Mat Lights and Tube Lighting Options

Aputure designs and manufactures cinema lighting fixtures, light-shaping accessories, and lighting software. Globally, you can find the company's products in studios, on-location sets, photography studios, and live events. Aputure is mo...

Read more

About Aputure Amaran F22c 2x2' 200W RGBWW Flexible LED Mat Fixture, Gold-Mount 1693852

Experience the pinnacle of lighting innovation with the Amaran F22c 2x2' 200W RGBWW Flexible LED Mat Fixture, a Gold-Mount solution designed for the discerning filmmaker, videographer, and photographer. This high-output, full-color LED mat redefines performance and versatility, offering an unparalleled 6,420+ lux at 1 meter (5600K) from its ultra-lightweight and compact form factor.

Crafted for durability and quality, the Amaran F22c boasts a robust construction that belies its flexible design. The fixture's 200W output power illuminates your subjects with a stellar CRI and TLCI scores of 95+ and 97+, ensuring accurate color rendition and consistency across all your projects.

Versatility is at the heart of the F22c, featuring RGBWW LEDs that grant complete creative control over your lighting palette. With tunable CCT ranging from a warm 2,500K to a crisp 7,500K, and stepless dimming from 0 to 100%, you can effortlessly adapt to any lighting condition. The 360 Degree HSI control, 46 color gel presets, and up to 15 unique lighting effects open up a world of possibilities for creative expression.

The Amaran F22c's ease of use is further enhanced by the SidusLink app control, allowing for precise adjustments and real-time monitoring of your lighting setup. The compact, folding X-Frame quickly transforms the F22c into a rigid panel, compatible with a variety of mounting options, including a C-Stand grip head and standard light stands.

Enhance your lighting design with the included foldable softbox, two strengths of diffusion, and a fabric grid, all utilizing integrated hook-and-loop fabric for quick changes. For even more versatility, the F22c can be paired with an Amaran F22 lantern modifier, creating a volumetric lantern or pancake light effect with this full-color fixture.

Portability is paramount with the F22c, featuring an integrated 3-meter long head cable and an additional 3-meter extension, allowing for a total reach of 6 meters from its control box. The LED and heat dissipation design of the F22c delivers a powerful output while maintaining a feather-weight profile, perfect for on-location shoots.

Powering the F22c is flexible, with a multi-voltage battery plate supporting 14.4V batteries for half power or 26V/28.8V batteries for full intensity. AC power supply is also an option, with each unit coming with a specially designed battery plate bracket for a seamless experience.

The F22c's soft carrying case ensures that this portable lighting powerhouse can accompany you to any production, anywhere. With the SidusLink app, you gain access to features like Source Match, Color Picker, and Custom FX, enhancing your lighting capabilities directly from your smartphone or tablet.

For those requiring professional-level control, the F22c can be integrated into DMX setups using a special USB-C to 5-Pin DMX512 In & Out Adapter Cable, bringing advanced control to this flexible lighting solution.

The Amaran F22c stands out as the ideal choice for content creators, indie filmmakers, and videographers who demand a flexible, powerful, and intuitive lighting solution. With its 200W chipset, traditional 2' x 2' form factor, and innovative features, the F22c outshines its competitors, making it a must-have for any serious visual storyteller.

Aputure Amaran F22c 2x2' 200W RGBWW Flexible LED Mat Fixture, Gold-Mount 1693852 Features

  • 200W Output 2'x2' RGBWW Flexible LED Mat
  • 240W Max Power Draw
  • 6,420+ lux @ 1 meter (5600K)
  • HSI Full Color Control
  • Tunable CCT from 2,500K to 7,500K
  • Tunable Green-Magenta Adjustment (Plus/Minus Green)
  • Stepless Dimming from 0 to 100%
  • SidusLink App Control
  • 3 Meter Head Cable Extension
  • DMX Control via USB-C to 5-Pin DMX512 In & Out Adapter (Sold Separately)
  • 46 Color Gel Presets
  • 4 User-Configurable Preset Buttons
  • 15 Built-in Lighting FX: Paparazzi, Lightning, TV, Candle, Fire, Strobe, Explosion, Faulty Bulb, Pulsing, Welding, Cop Car, Color Chase, etc.
  • Frequency Selection: Tune Out Flicker, Up to +2000Hz Adjustment
  • Easy Mounting AC Power Supply with Included Battery Bracket
  • Multiple DC Power Solutions: 14.4V/26/28.8V/48V (3-Pin XLR)
  • Lantern Accessory with Light Control Skirt (Sold Separately)

What's in the box:

  • Aputure Amaran F22c 2x2' 200W RGBWW Flexible LED Mat Fixture (Gold-Mount)
  • F22c Control Box
  • F22c Head Cable Extension (3m)
  • F22 Support Bracket
  • Flex Light Right Angle Baby Pin Adapter
  • Flex Light Straight Baby Pin Adapter
  • Tilting Stand Mount
  • F22 Softbox Frame
  • F22 Diffusion Cloth 1 (1/2 Grid Cloth)
  • F22 Diffusion Cloth 2 (2.5 Stop)
  • F22 Light Control Grid
  • AC Power Supply
  • AC Power Cable
  • Amaran Flex Light Carrying Case
  • Original Box
