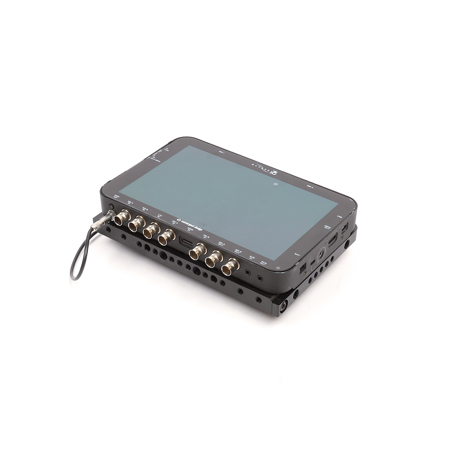

Convergent Design Odyssey7 RAW Monitor & Recorder, 2 In/2 Out, 2 Audio Channels
Convergent Design Odyssey7: Picture 1 thumbnail
Convergent Design Odyssey7: Picture 2 thumbnail
Convergent Design Odyssey7: Picture 3 thumbnail
Convergent Design Odyssey7: Picture 4 thumbnail

Picture does not represent the actual item

See all Convergent Design items
Clearance
Used Condition: Flawed

Used Convergent Design Odyssey7 RAW Monitor & Recorder, 2 In/2 Out, 2 Audio Channels

SKU: US1967775 MFR: CD-ODYSSEY7
Be the first to review this item
$419.00
OR
$70/mo suggested payments with 6‑month special financing. Learn how.
Earn VIP Reward Points
See all Used options (1) from $419

What`s in the box:

  • Convergent Design Odyssey7 RAW Monitor & Recorder
See more
Free Shipping

See Options

1
Add to List

Need help? Ask our experts.

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Convergent Design Odyssey7 Specifications

  • Display

    7.7" OLED, 1280x800, RGB 8-Bit, 3400:1 Contrast, 176° Viewing, True Blacks

  • SDI Video I/O

    SD/HD/3G Support: Single/Dual Link, 2-Inputs, 2-Outputs

  • SDI Video Formats

    HD/2K RGB 444 8/10/12-Bit up to 60p/60psf
    HD/2K YCC 422 8/10-Bit Up to 120p, QHD/4K 422 up to 30fps
    ARRIRAW (16:9) 12-bit up to 60fps, ARRIRAW (4:3) 12-bit up to 48fps
    Canon Raw QHD/4K 10-bit up to 60fps

  • HDMI Video I/O

    HDMI I/O Version 1.4a support

  • HDMI Video Formats

    Up to 1080p60 422 8-bit

  • LUT Support

    ARRI, Canon, Sony

  • Monitor Analysis Tools

    Focus Assist, YRGB Waveform, Histogram, False Color, Vectorscope, Zebras
    H/V Flip/Flop, 1:1 Mode, Recticule Markers, Horizon Indicator

  • Recorder Options

    Avid DNxHD up to 1080p30/1080i60, HD/2K Uncompreseed RGB 444 up to 60fps
    HD/2K Raw up to 120 fps, ARRIRAW (16:9) up to 60fps, (4:3) up to 48fps, Canon RAW QHD/4K up to 60fps

  • Record File Formats

    DNxHD = .mov, Uncompressed = .dpx, HD/2K Raw = .dng
    Canon Raw = .rmf, ARRIRAW = .ari

  • Record Triggers

    Touchscreen, SDI record trigger (ARRI, Canon, Panasonic, Red, Sony)
    Optional remote cable

  • Digital Audio I/O

    2-Channel Embedded Audio (48KHz, 24-bit)

  • Analog Audio I/O

    Mono Speaker, 3.5mm headphone output, mono unbalanced consumer input

  • Remote Control

    RS-232 I/O, programmable GPIO

  • Timecode

    LTC I/O (BNC) or Embedded SDI/HDMI TC

  • Wireless Control

    Bluetooth LE with iPhone/Android App

  • Recording Media

    2.5" professional server grade SSD in 240/480/960 GB sizes, 500MB/sec read/write speed, SATA-3 (6 GHz) interface, compatible with off the shelf USB 3.0 and Thunderbolt adapters

  • User Interface

    Capacitive Touchscreen, Two mechanical Function Keys

  • Firmware Update

    Via USB Port to host computer, download updates from website

  • DC Power Input

    10 to 34 VDC with built-in reverse polarity protection; built-in power switch

  • Power Dissipation

    8 Watts (monitor only), 8-15 Watts (monitor and record mode)

  • Enviromental

    14 to 104°F (Operating), -4 to 158°F (Storage)
    -10 to +40°C (Operating), -20 to +70°C (Storage)

  • Weight

    1.2 lbs (540g) cast-magnesium case

  • Dimensions

    7.9 x 6.1 x 1.0" (200 x 155 x 25 mm) measured from end of BNC to SSD tabs

About Convergent Design Odyssey7 RAW Monitor & Recorder, 2 In/2 Out, 2 Audio Channels

Odyssey7 and Odyssey7Q. The Odyssey family is intended to follow users as they journey through their careers from DSLRs to high-end 4K raw cine cameras, hugging the ever-changing camera technology curve and adapting to change without invasive hardware changes or costly upgrades. The Odyssey series combines Convergent Design's knowledge and experience of both broadcast and cinematography recorders, while adding the capabilities of a high-end professional monitor for an amazing $1295 USD (Odyssey7 - monitor only)

The Odyssey family is a professional 7.7" OLED monitor with high-end monitor features, including Waveform, Zebras, Histogram, Vectorscope, Focus Assist, False Color, Timecode Display and Audio Level Meters, and 1:1 Pixel mode. Odyssey7 includes HDMI I/O, and SD/HD/3G-SDI I/O; in both single and dual link configurations. As you have come to expect from Convergent Design, Odyssey is low power, lightweight and comes in a rugged magnesium case.

The Odyssey7Q adds two bi-directional SDI's (2-In, 2-I/O, 2-Out), enabling a 4K@60fps-ready option. Additional computational power supports recording/playback of up to four-compressed HD/2K simultaneously, support for one video stream up to 120fps and concurrent proxy and raw recording. Odyssey7Q includes a built-in Quad Splitter and Four-Channel Live Switcher.

Odyssey7 and Odyssey7Q can be upgraded to a full professional recorder with the following options: Compressed (Avid DNxHD up to 120fps), Uncompressed HD/2K RGB 444 (up to 60p), 2K/HD Raw, ARRIRAW (full 16:9 and 4:3 support), and Canon 4K RAW.
