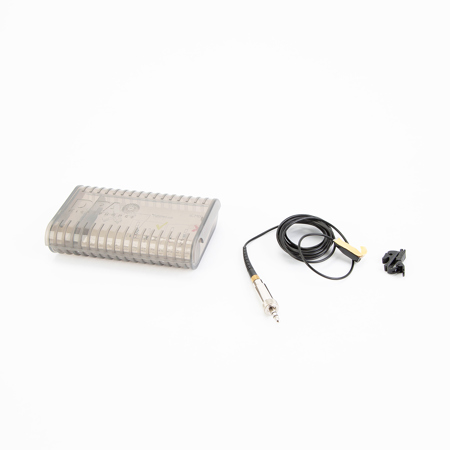

Used DPA Microphones d:screet CORE 6060 Subminiature Lavalier Omnidirectional Microphone with Hardwired 3.5mm Locking Connector, Normal SPL, Black

SKU: AUMDP6060OCU
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

DPA Microphones d:screet CORE 6060 Subminiature Lavalier Omnidirectional Microphone with Hardwired 3.5mm Locking Connector, Normal SPL, Black Specifications

  • Directional pattern

    Omnidirectional

  • Principle of operation

    Pressure

  • Cartridge type

    Pre-polarized condenser

  • Frequency range

    20 Hz - 20 kHz
    +/-2 dB: 40 Hz - 20 kHz with 4 dB soft boost at 8 - 20 kHz

  • Sensitivity

    Nominal, +/-3 dB at 1 kHz: 20 mV/Pa; -34 dB re. 1 V/Pa

  • Equivalent noise level

    A-weighted: Typ. 24 dB(A) re. 20 MuPa (max. 26 dB(A))

  • S/N ratio

    A-weighted, re. 1 kHz at 1 Pa (94 dB SPL): Typ. 70 dB(A)

  • Total harmonic distortion (THD)

    < 1% up to 126 dB SPL peak

  • Dynamic range

    Typ. 102 dB

  • Max. SPL

    Peak before clipping: 134 dB

  • Output impedance

    From DAD6001-BC: 100 Ohms

  • Cable drive capability

    Up to 300m (984.24') with DAD6001-BC XLR adapter

  • Power supply (for full performance)

    Min. 5 V to max. 10 V through DPA adapter for wireless systems
    With DAD6001-BC: 48 V phantom power +/-4 V for full performance
    Works from 12V

  • Connector

    Hardwired 3.5mm Locking

  • Polarity

    Positively increasing sound pressure produces positive going voltage on Hardwired 3.5mm Locking pin

  • Temperature range

    -40 to 45 deg. C (-40 to 113 deg. F)

  • Relative humidity (RH)

    Up to 90%

  • Capsule diameter

    3mm (0.12")

  • Cable length

    1.8m (5.91')

  • Dimensions (LxDia.)

    Microphone head size: 3.4 x 14.4mm (0.13 x 0.57")

  • Weight

    8g (0.28 oz) including Cable and connector

About DPA Microphones d:screet CORE 6060 Subminiature Lavalier Omnidirectional Microphone with Hardwired 3.5mm Locking Connector, Normal SPL, Black

Bring unparalleled audio fidelity to your professional recordings with the d:screet CORE 6060 Subminiature Lavalier Omnidirectional Microphone. Despite its diminutive size of just 3mm (0.12"), this microphone boasts the exceptional sound quality of DPA's larger, award-winning microphones. The innovative CORE by DPA technology has been compacted into this subminiature form factor, ensuring that you never have to sacrifice sound clarity for aesthetic discretion.

Experience the renowned DPA sound in a package that is 60% smaller, making it an ideal choice for situations that demand a discreet yet high-quality audio solution. The microphone's stainless steel housing is coated with a Physical Vapor Deposition (PVD) finish, providing a robust and durable exterior that can withstand high temperatures and resist impacts and abrasion. The sleek, matte appearance of the housing ensures the microphone remains unobtrusive, whether used in broadcast, podcasting, or live performance settings.

The d:screet 6060 CORE's advanced design features a removable cap for easy cleaning, which clicks back into place securely, mirroring the low-boost grid of DPA's larger 5mm microphones. The cable, a common point of failure in subminiature microphones, is reinforced with a Kevlar inner core and a rugged cable relief, mirroring the durability found in DPA's 5mm offerings. This design choice ensures the cable remains tangle-free and can endure rough handling without compromising performance.

Equipped with an omnidirectional polar pattern, the d:screet 6060 captures sound with true-to-life realism, picking up audio equally from all directions. This feature makes it perfect for capturing natural and immersive soundscapes, free from the proximity effect and less susceptible to wind, pop, or handling noise. Whether used on a bustling film set, a windy outdoor interview, or a live stage performance, this microphone delivers consistent, professional-grade audio.

The d:screet 6060 CORE is IP58 certified, ensuring it is protected against dust ingress and water damage, thanks to its water-repellent nano-coating, hermetically sealed amplifier, and dual gold-plated diaphragm. The microphone also comes with an 8-position lavalier clip, offering versatility in mounting options to accommodate various clothing styles and ensuring optimal placement for sound capture.

DPA Microphones' unique adapter system adds to the flexibility of the d:screet 6060 CORE, allowing it to be used with a wide range of wireless systems. This adaptability means you can switch between systems without any loss of sound quality, safeguarding your investment over time. For those who prefer a hardwired solution, DPA offers pre-terminated connectors compatible with popular wireless systems from brands like Shure and Sennheiser.

In summary, the d:screet CORE 6060 Subminiature Lavalier Omnidirectional Microphone is the epitome of durable, high-quality, reliable, innovative, and professional audio equipment. It stands out as the preferred choice for audio professionals who require the best sound quality without compromising on design or functionality.

DPA Microphones d:screet CORE 6060 Subminiature Lavalier Omnidirectional Microphone with Hardwired 3.5mm Locking Connector, Normal SPL, Black Features

  • Compact and discreet 3mm omnidirectional lavalier microphone for professional audio capture
  • Features innovative CORE by DPA technology for exceptional sound quality
  • Robust stainless steel housing with durable PVD coating for high temperature and impact resistance
  • Equipped with a Kevlar-reinforced cable for enhanced durability and tangle-free usage
  • IP58 certified for dust & water resistance, ensuring reliable performance in various environments
  • Compatible with a wide range of wireless systems through DPA's unique adapter system, offering flexibility and longevity

Key Features

  • Capture pristine audio with this DPA lavalier microphone, perfect for interviews and film.
  • Experience exceptional sound quality; the DPA 6060 ensures clear, natural voice reproduction.
  • Enjoy easy setup with the hardwired 3.5mm locking connector, compatible with wireless systems.
  • Achieve superior noise reduction, ideal for use in challenging acoustic environments.
  • This durable lavalier microphone withstands demanding use, ensuring long-lasting reliability.
  • Benefit from the discreet design; this subminiature microphone is virtually invisible on camera.
