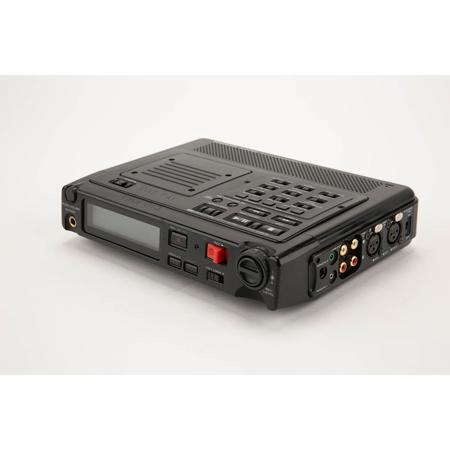

Used Marantz PMD-671 - Hi-Resolution Compact Flash Field Recorder

SKU: US1654199

This item is no longer available.

Recommended Items

Overview
Compare
Specs
Protection
Q&A

Questions & Answers

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest in Pre-Owned Gear & Peace of Mind!

Extend coverage on pre-owned products after the retailer warranty ends and protect photo & video gear from accidental damage with Adorama Protect.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Extended Protection

Coverage for pre-owned gear begins after the retailer warranty ends, plus accidental damage protection for photo/video gear that starts on day one.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for International and U.S. territories purchases. Plans on pre-owned items do not cover pre-existing damages.

Marantz PMD671 Specifications

  • System

    Solid State Recorder

  • Usable Media

    CF memory/Microdrive cards

  • Recording and media methods

    .mp2: MPEG1 Layer II compression
    .mp3: MPEG1 Layer III compression
    .mp3: MPEG2 Layer III compression for all half sample rate

  • PCM

    16/24 bit linear PCM

  • Recording bit rate (selectable):MP2 mono

    192, 128, 96, 64, 48, 32 kbps

  • Recording bit rate(selectable)MP2 stereo

    384, 256,192,128, 96, 64 kbps

  • Recording bit rate (selectable):MP3 mono

    160, 128, 80, 64, 40, 32, 24, 16 kbps

  • Recording bit rate(selectable)MP3 stereo

    320, 256, 160,128, 80, 64, 40, 32 kbps

  • Sampling frequency: Analog: 24bit PCM

    96, 88.2, 48, 44.1 kHz

  • Sampling frequency: Analog: 16bit PCM

    48, 44.1, 32, 24,22.05, 16, 12, 11.025, 8 khz

  • Sampling frequency: Analog: MP2

    48, 44.1, 32 kHz

  • Sampling frequency: Analog: MP3

    48, 44.1, 32 , 24, 22.05, 16 kHz

  • Sampling frequency: Digital

    96, 88.2, 48, 44.1 kHz

  • Number of channels

    2 (stereo), 1 (mono)

  • Frequency response

    44kHz (-0.5dB, fs=96kHz)

  • Signal-to-Noise Ratio

    IEC-A weighted: LINE 92 dB
    MIC 65 dB

  • Total Harmonic Distortion at 0 VU (PCM)

    LINE 0.01%
    MIC 0.03%

  • Dynamic Range

    94dB

  • MIC IN L/R Type

    XLR (1:GND, 2:HOT, 3:COLD)

  • MIC IN L/R Input Sensitivity (MIC)

    1.2 mVrms/3 kohms

  • Line In L/R Type

    RCA jack

  • Line In L/R Input Sensitivity

    300 mVrms/22 kohms

  • Digital In Type

    RCA jack

  • Digital In Input impedance

    75 ohms

  • Digital In Standard input level

    0.5 Vp-p

  • Digital In Sampling frequency

    96, 88.2, 48, 44.1 kHz

  • Digital InFormat

    SPDIF (IEC 958 TypeII)

  • Line Out L/R Type

    RCA jack

  • Line Out L/R Standard level

    2 Vrms max./2 kohms

  • Digital Out Type

    RCA jack

  • Digital Out Output impedance

    75 ohms

  • Digital Out Standard Output level

    0.5 Vp-p

  • Digital Out Sampling frequency

    96, 88.2, 48, 44.1 kHz

  • Digital Out Format

    SPDIF (IEC-958 Type II)

  • Headphone Output power

    20 mW/32 ohms

  • Speaker Output power

    70 mW/4 ohms

  • Phantom power

    +48V/7mA

  • Power consumption: Recording/Playback

    6 W

  • Charging

    12 W max

  • Standby (battery driven)

    2.9 mW

  • Battery life (Alkaline)

    6 hours (typical)

  • Width

    10.4" (264 mm)

  • Height

    2.0" (55 mm)

  • Depth

    7.3" (185 mm)

  • Weight

    2 lbs. 14 oz. (1.3 kg)

  • Warranty

    Marantz Limited Warranty

About Marantz PMD-671 Hi-Resolution Compact Flash Field Recorder - SKU#1654199

Marantz PMD671 Portable Solid State Recorder can record 24-bit, 96 kHz audio for the highest sound quality available in the field or even in the studio. The ability to read-after-write offers completely new levels of functionality never before available in a field recorder. Even the mic preamps have been dramatically improved.

Then add programmable presets and changing formats on the fly is as easy as pressing a button. Serious professionals need serious tools. If your application requires uncompromising audio, unflinching reliability and unprecedented functionality, you owe it to yourself to take a very serious look at the PMD671.

Marantz PMD-671 Hi-Resolution Compact Flash Field Recorder - SKU#1654199 Features

  • Unparalleled 24/96 Audio: Recording PCM audio at 24-bit resolution and 96 kHz sampling frequency is the absolute state of the art for digital audio applications. It offers 256 times the amplitude resolution, and more than twice the frequency resolution of compact discs.
  • RAW (VTH-Virtual Third Head): Professional analog recorders had a dedicated "third head" to monitor recorded signals after they were printed to tape. It was called, "confidence monitoring", because it allowed engineers to be 100% confident about what they had recorded as it was happening.
  • Time Shift (Time-Shift Playback): The same technology that allows the virtual third head also allows time-shift playback capability. This means that as you continue to record an event, you can back up and listen to various parts, and then return to listening to the event in real-time.
  • Professional I/O: Let's face it: plugging professional-grade microphones into an 1/8" jack is asking for trouble. The PMD671 offers two balanced XLR mic inputs with +48v phantom power, and all new audiophile quality microphone preamps.
  • Long Battery Life: the rechargeable NiCd battery (RB1100) will power the PMD671 for 4-5 hours while the NiMH battery (RB1651) will power the unit for 6-7 hours. And both batteries can be charged in the unit eliminating the need for carrying bulky battery chargers into the field.
  • Long Record Times: No more flipping tapes! A single 1 GB flash card can hold up to 70 hours of uninterrupted audio (monaural .mp3 at 32 kbps). For music recording, the same size card can hold more than 17 hours highquality compressed stereo (.mp3 at 128 kbps).
  • Solid State Technology: By storing audio data on Compact Flash (CF) media cards, all of the mechanical hassles of tape recorders are gone forever-as are the costs of servicing and maintaining them.
  • USB 2.0 and file transfer: The PMD671's USB 2.0 port allows you to directly connect to a computer for blazing fast transfers. Alternatively, you can remove the CF card and use any standard CF card reader.
  • Optional Wired Remote: The RC600 wired remote control enables you to start and pause recording, and to mark new track-starts on the fly. It even has a peak meter right on the remote, so you can keep an eye on your recording, without taking your eye off the ball.

What's in the box:

  • Marantz PMD671 Port Solid State Recorder
  • Battery Holder
  • AC Adapter
  • Item Note: Missing Carry Strap; Carry Strap Retainers; Screws (ISO 3x10 mm); Plastic Pin and Retainer; USB Cable
