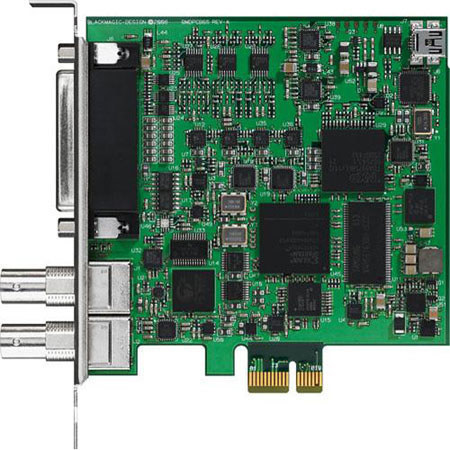

Blackmagic Design DeckLink Studio SD/HD Broadcast Video PCI Express Capture Card

The Blackmagic Design DeckLink Studio SD/HD Capture Card is a 10 bit video card that works in SD and HD. DeckLink Studio includes SDI and analog video, analog and digital audio, keying in SD, a hardware down converter all in a compact and incredibly low cost solution that's perfect for broadcast editing, paint and design.

DeckLink Studio supports both SD and HD and plugs into any PCI Express Windows or Intel-based Mac Pro computer. DeckLink Studio includes SD/HD-SDI, SD/HD component, composite, S-Video, 4 ch balanced analog audio, 2 ch AES/EBU, blackburst and tri-sync reference input and RS-422 deck control connections. DeckLink Studio features a massive 4 channels of balanced professional analog audio in and out, as well as 2 channels of AES/EBU digital audio in and out, for broadcast quality and sample accurate AV sync.

DeckLink Studio also includes a sample rate converter on the AES/EBU input, so you can connect to any digital audio device, from either synchronized or un-synchronized sources. DeckLink Studio includes 8 channels of SDI embedded audio that are perfect for Final Cut Pro and Premiere Pro's multi channel audio support. When working with multi channel audio, DeckLink Studio can switch it's analog audio output 3 and 4 to AES/EBU digital audio outputs. That means you get an extra 2 digital audio outputs for a total of 6 channels of AES/EBU digital audio out! DeckLink Studio is perfect for 5.1 surround sound editing and multi language digital audio monitoring.
