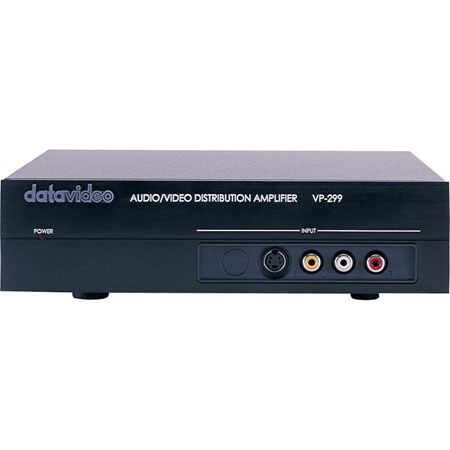

Datavideo Vp-299 A/v Dist. Amplifier

Datavideo VP-299 A/V Dist. Amplifier Features

• One input to four outputs for stereo audio, Y/C and composite video.
• Input Impedance: Video 75 ohm, audio 100K ohm
• Output Impedance: Video 75 ohm, audio 1K ohm
• Wide Bandwidth: Video > 5.5 MHz, audio: 20 to 20 KHz +/- 3dB
• Low Noise, S/N ratio: Video >50dB, audio >75dB
• Audio THD: <0.03%
• Output Level: Video unity +/- 0.5dB, audio unity +/- 1dB
