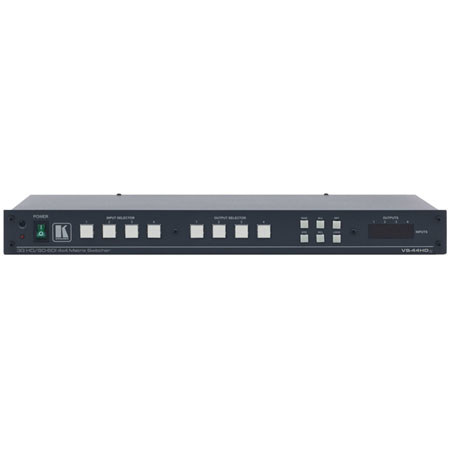

Kramer Electronics Kramer VS-44HDXL 4x4 3G HD-SDI Matrix Switcher
SKU: VDKRVS44HDXL
This item is no longer available.
Share:
Overview
Compare
Learn
Specs
Protection
About Kramer Electronics VS-44HDXL
The Kramer VS-44HDXL is a high-performance matrix switcher for SD-SDI (SMPTE 259M and SMPTE 344M), HD-SDI (SMPTE 292M), dual link (SMPTE 372M) and 3G HD-SDI (SMPTE 424M) signals. Switching is implemented during the vertical interval period according to the SMPTE RP-168 standard, when using synchronized digital video sources.
Kramer Electronics VS-44HDXL Features
- Max Data Rate - 3Gbps
- HDTV Compatible
- Multi-Standard Operation - SD/HD-SDI, 3G HD-SDI and dual-link HD-SDI
- Kramer re-Klocking & Equalization Technology - Rebuilds the digital signal to travel longer distances
- Switching Synchronization - Synchronizes either to external reference or incoming video
- Active Input Type Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high-definition (HD-SDI) input signal
- Multiple Memory Locations - Stores multiple switches as presets (salvos) to be recalled and executed when needed
- Take Button - Executes multiple switches all at once
- Flexible Control Options - Front Panel, RS-232 (K-Router Windows-based software is included), RS-485, Ethernet, contact closure & IR Remote (included)
- Analog Sync Type - Bi-level, tri-level
- Selectable Sync Signal Termination
- Vertical Interval Switching - SMPTE RP-168
- Front Panel Control Lockout
- Worldwide Power Supply - 100-240V AC
- Standard 19" Rack Mount Size - 1U. Rack "ears" included
