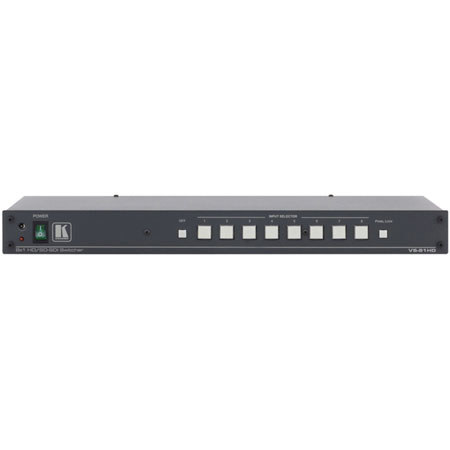

Kramer Electronics Kramer VS-81HD 8x1:2 HD-SDI Switcher

Kramer Electronics VS-81HD Features

• Max Data Rate - 1.485Gbps
• Kramer re-Klocking & Equalization Technology - Rebuilds the digital signal to travel longer distances
• HDTV Compatible
• Flexible Control Options - Front panel, RS-232 (K-Router Windows-based software is included), RS-485, contact closure, IR remote (included) & remote IR receiver (optional)
• Active Input Indication Reporting - Each input button on the front panel automatically lights up when the unit detects a video signal on that input. Green indicates a standard definition (SDI) input signal and blue indicates a high definition (HD-SDI) input signal
• Analog Sync Type - Bi-level, tri-level
• Selectable Sync Signal Termination
• Front Panel Control Lockout
• Vertical Interval Switching - SMPTE RP-168
• Output Disconnect
• Worldwide Power Supply - 100-240V AC
• Standard 19" Rack Mount Size - 1U. Rack "ears" included
