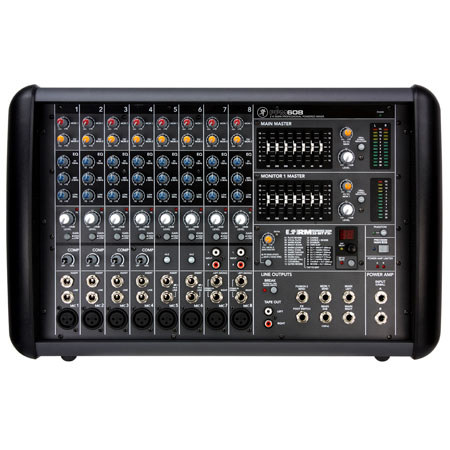

Mackie 8-Channel Powered Mixer with Effects
See all Mackie items

Mackie 8-Channel Powered Mixer with 32-Bit Gig Ready Effects, 1000W, 3-Band EQ

SKU: VDMAPPM608
Be the first to review this item

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

Mackie 8-Channel Powered Mixer with Effects Specifications

  • Power Rating

    500+500W Peak

  • Mic/Line Inputs

    3-pin XLR Microphone x8
    1/4" Phone Mono Line x8 L/R Stereo 1/4" Phone Line x2
    L/R Stereo RCA Phono Line x2 1/4" Phone Mono Line/Instrument x2

  • Mains Inputs

    Unbalanced 1/4in Phone A/B x2

  • In-Line Inputs/Returns

    No

  • Aux Sends

    MON1 Send - 1/4" Phone
    FX/MON2 Send - 1/4" Phone

  • Aux Returns

    No

  • Inserts

    1/4" TRS Phone
    All Mono and Instrument / Line Inputs

  • BUS (Group) Outputs

    Main Left/Right - L/R Stereo 1/4" Phone

  • Main Output

    Speaker Outputs - A/B Speakon and 1/4" Phone Connectors

  • Tape I/O

    L/R RCA Phono

  • Monitor Outputs

    MON1 Send - 1/4" Phone
    FX/MON2 Send - 1/4" Phone

  • EQ Section

    Channel EQ:
    High Shelving: +/- 15dB at 12kHz
    Mid Peak Sweep (Mono chs): +/- 15dB
    Mid Sweep Range: 100Hz to 8kHz
    Hi Mid Peaking (Stereo chs): +/- 15dB at 2.5kHz
    Lo Mid Peaking (Stereo chs): +/- 15dB at 400kHz
    Low Shelving: +/- 15dB at 80Hz
    9-Band Graphic EQ:
    Main and Monitor 1: +/- 15dB at 63, 125, 250, 500, 1k, 2k, 4k, 8k and 16kHz

  • Solo/Mute

    No

  • Channel Level Control

    Rotating Pot Controls

  • Trim/Gain Control

    Rotating Pot Controls

  • Phantom Power

    +48V

  • Metering

    Stereo Peak LEDs

  • Frequency Response

    Mic Mono Inputs: < 10Hz to 80kHz
    Line Mono Inputs: < 10Hz to 40kHz Line Stereo Inputs: < 10Hz to 75kHz

  • Signal-to-Noise Ratio

    -128dBu

  • Total Harmonic Distortion (THD)

    Mic Mono: < 0.007% High Gain
    Mic Mono: < 0.005% Low Gain Line Mono: < 0.005% Low Gain
    Line Stereo: < 0.01% at Main Out

  • Power Supply

    120VAC 50/60Hz
    680W

  • Dimensions (H x W x D)

    12.3 x 19.3 x 11.4in / 314 x 490 x 290mm

  • Weight

    24.5 lbs / 11.1kg

About Mackie 8-Channel Powered Mixer with Effects

Ultra-light and completely self-contained, the Mackie PPM608 Professional Powered Mixer features two ridiculously robust power amps for mains and/or monitors (500W + 500W). With 1000 watts of system power, this mixer provides more raw power than the competition. Things can get pretty intense out there and your gear needs to be able keep up the pace. Mackie custom designed the PPM608 with Class-D amps, which run cool and boast maximum efficiency to keep your sound pumping until they start kicking people out. Mackie's proven Fast Recovery circuitry is included to eliminate the risk of pesky amp latching. The result is a distortion free mix even when pushing peak levels. The built-in limiter can go toe-to-toe with the most popular outboard stereo limiters used in live sound today, protecting your speakers from damage. The limiter's attack and release times are specifically selected to address full-bandwidth music and will not muddy things up by adding any unwanted pumping. PPM mixers are surprisingly lightweight, but tremendously powerful. You can push the PPM608 to its maximum output, distortion free!

Mackie 8-Channel Powered Mixer with Effects Features

  • Full-featured 8-channel, 1000W, ultra-light Professional Powered Mixer with onboard 32-bit digital RMFX+ processor
  • 500W + 500W Mackie designed Class-D, Fast Recovery power amplifiers
  • 32-bit RMFX+ processor featuring 24 "Gig Ready" reverbs, choruses, and tap delay for live applications
  • 8 premium Mackie mic preamps with 48V phantom power and TRS inserts (ch 1-6)
  • New Dedicated In-line Compression provides increased presence and punch for vocals and instruments
  • 2 stereo inputs with dual RCA and dual 1/4-inch line inputs for flexible connectivity
  • Mackie's 3-band active channel EQ (80hz, 2.5kHz, 12kHz)
  • 2 built-in DI boxes for direct instrument connections
  • Separate Monitor and FX auxiliary sends
  • Dual 7-Band graphic EQ on the Mains and Monitor outputs for tuning rooms and monitor mixes
  • 3-Mode Amplifier for ultra-flexible routing, switchable as Mains Stereo L/R, Mono Mains/Monitor 1, or Mon 1 & Mon 2
  • Precision Passive EQ for enhanced clarity and LF response with Mackie passive loudspeakers
  • Rugged metal handles built into the sides of the mixer case for easy transport from gig to gig
  • Built like a tank and armored in poly carbonate ABS, the PPM608 features classic Mackie rounded front chassis design. So if the PPM rolls on its face during transport the controls are recessed and protected
  • Ultra-Lightweight and portable

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • 500W + 500W Mackie designed Class-D, Fast Recovery power amplifiers
  • 32-bit RMFX processor with 16 Gig-Readyin reverbs, choruses and delays
  • 8 premium Mackie mic preamps with 48V phantom power and TRS inserts (ch 1-6)
  • Provides increased presence and punch
  • New Dedicated In-line Compression
  • 2 stereo inputs with dual RCA and dual 1/4-inch line inputs
