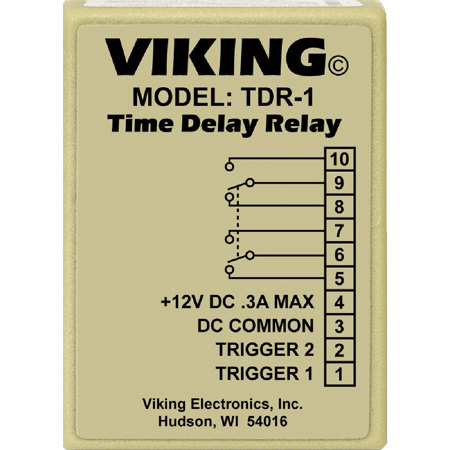

Viking TDR-1 Versatile Time Delay Relay
SKU: VIKTDR1
This item is no longer available.
Share:
Overview
Compare
Specs
Protection
About Viking TDR-1
The Viking TDR-1 is a time delay relay device designed to be easily configured to fit a wide variety of applications. The TDR-1 has two different modes of operation: 1) In the Time Delay Mode, the TDR-1 can be programmed to produce one of 8 closure times. The Trigger 1 input can be programmed to accept either a dry contact closure or positive/negative going logic level voltage. 2) The Delay on Operate mode delays an input trigger by a programmed interval. Eight delay times are available, from 1 to 30 seconds.
Viking TDR-1 Features
- 1 Double Pole, Double Throw relay output
- 8 selectable closure times
- DIP switch programming
- Accepts positive or negative going logic level voltage or contact closure
- Selectable time delay
- Screw terminal connections
- LED relay status indicator
- Applications: Controlled closure times, Delayed closures, Convert closures between N/O and N/C
