WD WD2003FYYS Specifications

  • Rotational Speed

    7,200 RPM (nominal)

  • Buffer Size

    64MB

  • Load/unload Cycles

    600,000 minimum

  • Buffer To Host (Serial ATA)

    3 Gb/s (Max)

  • Formatted Capacity

    2,000,398 MB

  • Capacity

    2TB

  • Interface

    SATA 3 Gb/s

  • User Sectors Per Drive

    3,907,029,168

  • Operating Shock (Read)

    30G, 2 ms

  • Non-operating Shock

    300G, 2 ms

  • Acoustics

    Idle Mode: 29 dBA (average)
    Seek Mode 0: 34 dBA (average)
    Seek Mode 3: 30 dBA (average)

  • Operating Temperature

    41deg. F to 131deg. F / 5deg. C to 55deg. C

  • Non-operating Temperature

    -40deg. F to 158deg. F / -40deg. C to 70deg. C

  • Current Requirements: 12 VDC

    Read/Write: 675 mA
    Read/Write: 510 mA
    Read/Write: 45 mA
    Read/Write: 45 mA

  • Current Requirements: 5 VDC

    Read/Write: 525 mA
    Read/Write: 405 mA
    Read/Write: 185 mA
    Read/Write: 185 mA

  • Current Requirements: Power Dissipation

    Read/Write: 10.70 Watts
    Read/Write: 8.10 Watts
    Read/Write: 1.50 Watts
    Read/Write: 1.50 Watts

  • Dimensions (H x D x W)

    1.03 x 5.79 x 4" / 2.61 x 14.71 x 10.16cm

  • Weight

    1.66 lbs / 0.75 kg

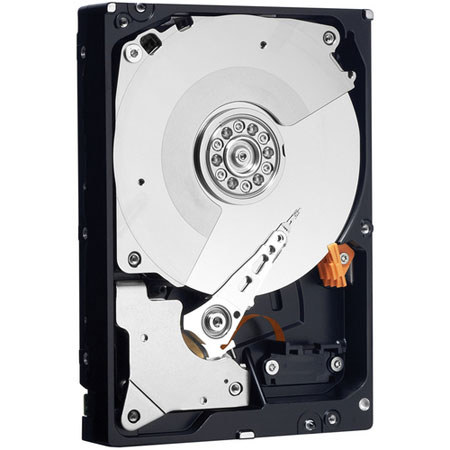

About WD WD2003FYYS

The WD Enterprise 2TB 3.5" Internal Hard Drive is coupled with dual processors, which has twice the processing power to maximize its performance. Advanced RAFF technology monitors the drive and corrects both linear and rotational vibration, thus ensuring optimum performance even in high vibration environments.

With dual actuator technology, the RE4 hard drive improves positional accuracy over the data tracks. Using the electromagnetic actuator principles, the primary actuator provides coarse displacement. The secondary actuator provides accurate head adjustment using piezoelectric motion. Featured motor shaft on both ends minimizes the system-induced vibration and stabilizes platters for accurate tracking, during read and write operations. IntelliSeek feature enables you to calculate the optimum seek speeds, thereby reducing power consumption, noise and vibration. Multi-axis shock sensor automatically detects the subtlest shock events, allowing you to protect the data.

With TLER (Time-Limited Error Recovery) feature, the RE4 SATA Hard Drive minimizes drive fallout caused by the extended hard drive error-recovery processes. The NoTouch Ramp Load technology ensures that the recording head never touches the disk media, providing enhanced drive protection in transit. Thermal cycling makes sure that each drive is tested by an extended burn-in for reliable operation.

Consistency can be achieved with third generation dynamic fly height, which enables each read-write head's fly height to be adjusted in real-time. With 64 MB cache, the 2 TB SATA Hard Drive ensures faster data transactions by reducing the time required for data transactions. The 1.2 million hours MTBF (tested at 100% duty cycle) makes the hard drive more reliable.

WD WD2003FYYS Features

  • Dual processor - twice the processing power to maximize the performance
  • Advanced RAFF technology - monitors the drive and corrects both linear and rotational vibration, thus ensuring optimum performance even in high vibration environments
  • Dual actuator technology offers improved positional accuracy over the data tracks
  • Primary actuator provides coarse displacement using the electromagnetic actuator principles
  • Secondary actuator provides accurate head adjustment using piezoelectric motion
  • Motor shaft on both ends minimizes the system-induced vibration and stabilizes platters for accurate tracking, during read and write operations
  • IntelliSeek feature - enables you to calculate the optimum seek speeds, thereby reducing power consumption, noise and vibration
  • Multi-axis shock sensor - automatically detects the subtlest shock events, allowing you to protect the data
  • TLER (Time-Limited Error Recovery) feature - minimizes drive fallout caused by the extended hard drive error-recovery processes
  • NoTouch Ramp Load technology ensures that the recording head never touches the disk media, providing enhanced drive protection in transit
  • Thermal cycling makes sure that each drive is tested by an extended burn-in for reliable operation
  • Third generation dynamic fly height - enables each read-write head's fly height to be adjusted in real-time for consistency
  • 64 MB cache ensures faster data transactions
  • 1.2 million hours MTBF offers 24x7 reliability
  • Ideal for use in servers, video surveillance and other demanding write-intensive applications
