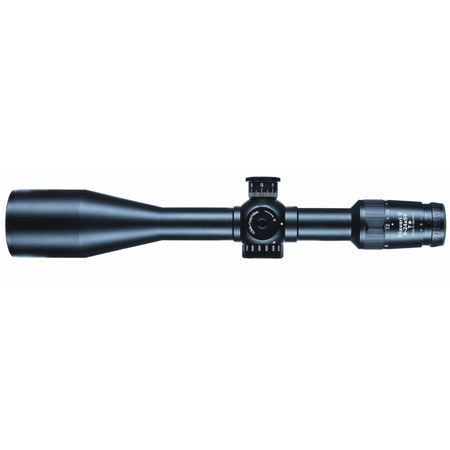

Zeiss 6 - 24 x 56mm T* Diavari VM/V Series Riflescope, Matte Black Finish with Illuminated Mil-Dot Reticle, 30mm Tube, "V" Without Rail.

SKU: ZSRV624X56IM

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

Zeiss 6 - 24 x 56mm T* Diavari VM/V Series Riflescope Specifications

  • Catalog #

    521695 9943

  • Magnification

    6.0x - 24x

  • Objective / Field of View

    56mm.

  • Field of View

    18.6' @ 6.0x at 100 yds., 5.10' @ 24x at 100 yds.

  • Main (Center) Tube Diameter

    30mm

  • Objective Tube Diameter

    62mm

  • Eyepiece Tube Diameter

    40mm

  • Lens Coatings

    Zeiss T* Multicoating
    AOS Lead & Arsenic-free glass.

  • Reticle

    Illuminated Mil-Dot Reticle.

  • Reticle Image Plane (Magnifying)

    2nd Image Plane, Non-Magnifying.

  • Twilight Performance

    16.9 @ 6.0x, 36.7 @ 24x

  • Exterior Finish

    Matte Black

  • Windage & Elevation Adjustments (MOA)

    Inches at 100 yds:
    Windage Adjustment Range: 25.2
    Elevation Adjustment Range: 57.6

  • Adjustment Graduation

    1 Click Equals 0.5cm at 100m

  • Exit Pupil

    9.3mm @ 6.0x / 2.3mm @ 24x

  • Eye Relief

    3.15" @ 6.0x / 3.15" @ 24x
    • Consistent Eye Relief Throughout the Power Range.

  • Parallax Correction Control

    Parallax free from 50 yds to Infinity.

  • Material

    One Piece Aluminum Tube

  • Nitrogen Filled

    Yes

  • Waterproof / Fogproof

    Yes

  • Length

    14.84"

  • Weight

    28.40oz.

  • Special Features

    Lifetime Transferrable Warranty.

7 Accessories for Zeiss 6 - 24 x 56mm T* Diavari VM/V Series Riflescope, Matte Black Finish with Illuminated Mil-Dot Reticle, 30mm Tube, "V" Without Rail.

  • All Accessories (7)
  • Sights & Accessories (2)
  • Cleaning Accessories (4)
  • Bags & Cases (1)

About Zeiss 6 - 24 x 56mm T* Diavari VM/V Series Riflescope

The Diavari VM (with integral mounting rail) and V (without rail) scopes offer the hunter and shooter considerably lighter weight, increased field-of-view and a wider power range. Again, Zeiss has established an optical and technical standard by which all others are judged.

Diavari V 6-24x56T*
The high power riflescope with reticle in second image plane - also available with illuminated reticle. With the Diavari V 6-24x56 T*, Zeiss presents a new riflescope for very long range.

A remarkable feature in this category is the large objective lens diameter of 56 mm, which offers a clear and brilliant image even in poor light. Other interesting features, some of them exclusive, are:

• Reticle in the second image plane, so its size remains constant across the entire power range. At high magnifications little of the target is concealed, an advantage when sighting small targets at great distances.
• Very large adjustment range for the reticle of up to 160 cm at 100 m. This makes sighting-in easier at long range.
• Precise reticle adjustment with clickstop mechanism in steps of 0.5 cm at 100 m.
• Bullet drop compensator fitted as standard.
• Mil Dot reticle available.
• Illuminated reticle available for shooting accurately in low light, an option exclusive to riflescopes in this performance category.
• Parallax adjustment from 49.2 yds to infinity via a knob on the side
