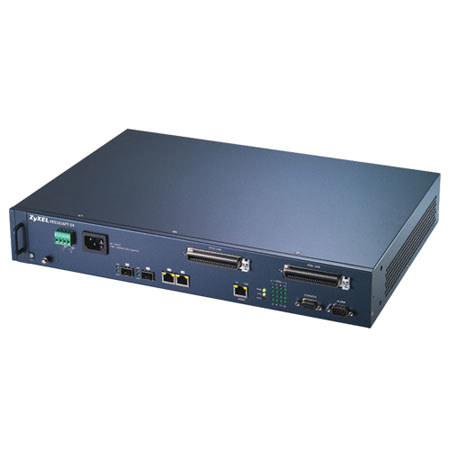

ZyXEL VES1616FT-54 16 Port Temperature-Hardened Remote VDSL2 DSLAM

ZyxEL's VES1616FT-54 is a 16-port VDSL2 aggregator based on Discrete Multi-Tone (DMT) modulation and the latest Ethernet technologies; it aggregates traffics from ZyxEL DMT-based VDSL CPE and complies with the VDSL2 G993.2 standard.

The VES1616FT-54 multiplexes data traffics into two 100/1000Base-T uplinks/downlinks (2 SFP combo) that connect to any third-party Ethernet switch, WAN router or VDSL Switch cascade, while the built-in POTS splitter splits and sends voice traffics to the PSTN. The VES1616FT-54 supports VDSL2 downstream speeds of up to 100 Mbps and VDSL2 upstream speeds of up to 50 Mbps.

The VES1616FT-54 provides a rich set of features and ensures interoperability with equipments from other vendors. The features include IGMP snooping, Multicast VLAN Registration (MVR), broadcast storm control and MAC filtering. IGMP snooping and MVR are very useful features for VoD/MoD whereas MAC filtering enhances security and bandwidth utilization. With a broad array of advanced, fully integrated technologies, the VES1616FT-54 enables service providers and system administrators to build cost-effective, full-service networks that enable all kinds of media-rich applications. It also provides QoS features within VDSL2 links.
