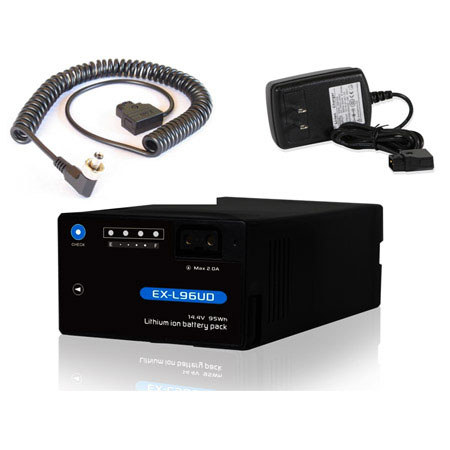

Zylight Lithium-Ion Battery System for Z90 LED Light

SKU: ZYZ90BS

This item is no longer available.

Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

2016-04-13T21:00:59

Rated 5 out of 5

Thank you

Very good quality product. Highly recommend.

Anna Z.

Zylight Lithium-Ion Battery System for Z90 LED Light Specifications

  • Cable Length

    40" [102cm] coiled

  • Cable extendable to

    ~80" [203cm]

  • Cable Gauge

    20AWG

  • Cable Color

    Black

  • Cable DC Plug

    Positive locking, OD:5.5mm ID:2.1mm

  • Compatibility

    Z90

  • Charger Compatible with

    Li-Ion NP battery pack

  • Charger Connects via

    Battery's built-in D-Tap connector

  • Charger Power Input

    120-240 Volts AC @ 50/60 Hz

  • Battery Chemistry

    Li-Ion (Lithium-Ion)

  • Battery Output Voltage

    14.8 VDC

  • Battery Connections

    NP-1 Type Battery; Two-pin D-Tap (PowerTap)

  • Battery Capacity

    60Wh

  • Charger Dimensions

    5.3 x 2.5 x 1.3" [13.4 x 6.35 x 3.3cm]

  • Charger Weight

    0.9 lbs. [408 grams]

  • Battery Dimensions

    7.28 x 2.83 x 0.98" [18.5 x 7.2 x 2.5cm]

  • Battery Weight

    0.92 lbs (417 grams)

  • Warranty

    Zylight 1 year limited warranty

About Zylight Lithium-Ion Battery System for Z90 LED Light

The Zylight 2602003 is a complete Li-Ion battery system for your Z90. It will run the Z90 for 2.5 hours at full power. The Z90 D-Tap Battery Cable powers your Z90 from any professional battery with a D-Tap (PowerTap) socket and nominal output voltage of 12V, 13.2V, or 14.4V. The coiled cable has a standard 2-pin PowerTap-style connector on one end with a securely locking right-angle DC plug on the other.

The quick charger is for Li-Ion NP battery pack. It easily connects via the battery's built-in D-Tap connector. The 14.8V 60Wh Li-Ion NP style battery features a built-in power gauge, protection circuitry and a two pin D-Tap power connector for use with the locking battery cables. It will run the Z90 for 2.5 hours at full power.

Zylight Lithium-Ion Battery System for Z90 LED Light Features

  • LED charge status indicator
  • Compact size
  • Universal Power Input
  • High-Grade cells selected and balanced for optimum life and performance
  • 14.8 Volts nominal output voltage
  • 4-stage LED power gauge to monitor battery power
  • Built-in temperature, current and voltage protection circuitry
  • Two pin D-Tap (PowerTap) connector built in

Key Features

  • LED charge status indicator
  • Compact size
  • Universal Power Input
  • 14.8 Volts nominal output voltage
  • 4-stage LED power gauge to monitor battery power
  • Two pin D-Tap (PowerTap) connector built in

What's in the box:

  • Zylight Li-Ion NP Battery Pack
  • Li-Ion NP Battery Charger
  • Z90 D-Tap Battery Cable (40 ")
  • Zylight 1 Year Limited Warranty
