Anchor Audio

Anchor Audio ACL-DP/HBM/LM Acclaim Lectern Dual Wireless Package with ACL-BASE, 2x WB-6000 Bodypack Transmitters, HBM-TA4F Headband & LM-60 Lapel Mic

SKU: AAACLDPHBMLM MFR: ACL-DP/HBM/LM
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,217.00 List Price

Our Price

$2,480.00
Free Shipping
Qty:

Add to Wishlist

About the Anchor Audio ACL-DP/HBM/LM

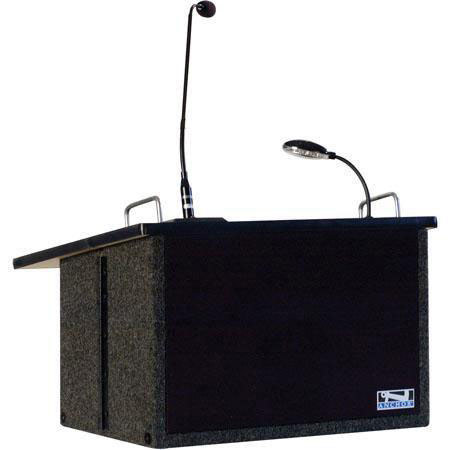

The Anchor Audio Acclaim ACL-7500U2 Lectern System is a portable, cost-effective surface mounted lectern system for presentations and speeches in conference rooms, schools, houses of worship and more. The Acclaim features a built-in 22 watt sound system, complete with gooseneck microphone, line/microphone inputs and output connections. A gooseneck lamp illuminates the entire work surface and the Acclaim will operate on both AC and DC Power.

The Anchor Audio WB-6000 is a 16-channel, diversity UHF body pack transmitter, made for use with the company's series of portable PA wireless products. The Anchor Audio Lectern Base is not only designed to provide support for the Anchor Audio Acclaim Lectern, the base also folds into a transport case for easy mobility and storage.

The LM-60 Cardioid, Electret Lavalier Microphone, with a 4-pin mini XLR female connector, is made for use with the Anchor Audio WB-6000 beltpack transmitter.

The Anchor HBM-60 is a lightweight headband microphone designed for hands-free operation. The microphone features a cardioid polar pattern, which is effective minimizing noise at the off-axis sections of the microphone. The cardioid pattern provides high gain before feedback making it suitable for use near monitor speakers. The microphone is fixed to a flexible boom for easy positioning and optimum pickup. The cable is terminated with a Switchcraft TA4F 4-pin mini XLR plug, compatible with Anchor wireless body pack transmitters.

Anchor Audio ACL-DP/HBM/LM Includes

  • Anchor Audio ACL-7500U2 Lectern System
  • ACL-BASE
  • 2 x WB-6000 Bodypack Transmitter
  • HBM-TA4F Headband Mic
  • LM-60 Lapel Mic
  • Anchor Audio Warranty

Anchor Audio ACL-DP/HBM/LM Features

  • Lectern: Reach audiences of 500+
  • Lectern: 114 dB of crystal clear sound
  • Lectern: 16 Channel UHF diversity wireless microphone operation by Anchor Audio (on U1 and U2 models)
  • Lectern: Runs 7+ hours on a charge
  • Lectern: High fidelity sound from high efficiency amp & full-range speaker
  • Lectern: Sealed, lead-acid batteries & built-in charger
  • Lectern: Universal microphone input jack
  • Lectern: External speaker output jack
  • Lectern: Powers optional unpowered AN-1001X companion speaker
  • Lectern: Sensitive 24" removable electret gooseneck microphone
  • Lectern: Detachable 12 V LED reading light
  • Transmitter: 16 User-selectable UHF channels
  • Transmitter: PLL Synthesized for solid, drift-free transmission, 10 mW output
  • Transmitter: Mic/Line switch for transmission of mic or line level signals such as CD players or mixers
  • Transmitter: Tone Key Noise Suppression uses microphone ID to lock out interference
  • Transmitter: Integral belt clip
  • Headband Mic: Cardioid Polar Pattern: The cardioid polar pattern results in high gain before feedback, making it suitable for use near monitor speakers
  • Headband Mic: Flexible Boom: The microphone is stationed on a flexible boom for easy positioning and optimum pickup
  • Headband Mic: TA4F Connection: The cable length measures 36" and terminates to a TA4F mini XLR connection, compatible with Anchor wireless transmitters

Anchor Audio ACL-DP/HBM/LM Specifications

Lectern: Microphone Type Electret Condenser, 24" Gooseneck
Lectern: Microphone Mount Permanent Surface Mount
Lectern: Reading Light Type Detachable 12V LED
Lectern: Power Output 22 Watts
Lectern: SPL 126dB @ 1 meter
Lectern: Speakers Full Range
Lectern: Frequency Response 400Hz - 10kHz
Lectern: Battery Type Charger (RC-6000) 18V DC/universal input
(100Vac - 240Vac, 50 - 63Hz)
12 volt rechargeable, 5.4 AH
Lectern: Inputs Lectern Mic: Lo-Z, Balanced, Phantom Power, XLR
Wired Mic: Lo-Z, unbalanced, 1/4"-phone
Line: Hi-Z, Unbalanced, 1/4" Phone
Lectern: Output Line (Post Fader): Lo-Z (<1k Ohm), Buffered, 1/4" Phone
Speaker: Switched 8ohm, 1/4" phone, Unswitched 4ohm, 1/4" Phone
Lectern: AC Power 90 - 264VAC, 50/60Hz, 50W Max
Lectern: Wireless Receiver/Type 16-Channel UHF x2
Type of Transmitter PLL Synthesized UHF Bodypack
Transmitter: # Of Channels 16
Transmitter: Type of Input Connector 4-pin Mini XLR Male
Transmitter: Polar Pattern Cardioid
Transmitter: Interchangeable Mic Heads No
Transmitter: Battery Type/Approx. Life 2 x DC 1.5V AA (dry or rechargeable), 20 hours
Transmitter: Mute Switch No
Transmitter: Level Control Yes
Transmitter: Antenna Type Detachable Whip
Transmitter: Display No
Headband Mic: Transducer Electret condenser
Headband Mic: Polar Pattern Uni-directional
Headband Mic: Frequency Response 30Hz to 15kHz
Headband Mic: Dynamic Range (Typical) Sensitivity: -48dB @ 1kHz
Headband Mic: Power Requirements 1-10 volts DC
Headband Mic: Output Impedance Lo-Z
Headband Mic: Output Connectors TA4F (mini XLR female)
Lectern: Dimensions 30.5 x 21.5 x 18.5" (77.4 x 54.61 x 46.99cm)
Transmitter: Dimensions (H x W x D) 3.86 x 2.6 x 1.02" (98 x 66 x 26mm)
Headband Mic: Dimensions Cable: 36" / 91.44cm
Lectern: Weight 38 lb (17.2 kg)
Transmitter: Weight 7.2 oz (204 g) / 204.11g
Headband Mic: Weight Headband Mic: 0.07 oz (1.98g)
