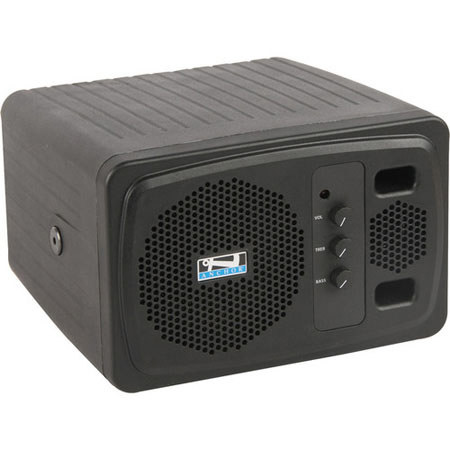

Anchor Audio AN-1000XU1+ Speaker Monitor with Wireless Receiver, Black

Anchor Audio
SKU: AAAN1000XU1P MFR: AN-1000XU1+

Original Price: $477.00 Special Price Available

See all shipping options

In Stock Online Usually ships within 1-2 Days learn more

25% Off

About Anchor Audio AN-1000XU1+

The Anchor Audio AN-1000XU1+ Speaker Monitor is a powered monitor with a variety of input and output options designed to work in a number of different settings. The internal 16 channel UHF wireless receiver allows for the use of a wireless microphone or body pack transmitter, providing a presenter or speaker with mobility while using the AN-1000XU1+. With inputs including a mic or line level switchable female XLR, RCA or Hi-Z 1/4", the AN-1000X is can easily be used in an A/V rack, as a studio monitor, or for live sound. Both the RCA and 1/4" line inputs can be used simultaneously. By using the RCA line input and output, the AN-1000XU1+ can be daisy chained to other AN-1000XU1+'s to provide greater amplification as needed. The speaker output allows you to power an unpowered auxiliary speaker, such as the Anchor Audio AN-1001XU1+.

Anchor Audio AN-1000XU1+ Features

  • 16 Channel UHF diversity wireless receiver for use with wireless mics and transmitters
  • AC powered
  • 103 dB maximum sound pressure level
  • Designed to reach crowds of up to 400
  • One bass knob and one treble knob control to help shape sound
  • Lightweight frame at only 9.5 lb (4.3 kg)
  • Unit is mountable to walls, ceilings, or speaker stands with additional hardware
  • Magnetically shielded speakers

Anchor Audio AN-1000XU1+ Specifications

Rated Power Output
50 W continuous at 4 Ohms
Maximum SPL
103 dB at 1 m
Wireless Receiver/Type
16 channel UHF diversity system
2 independent antennae
Frequency Response
65 Hz - 20 kHz ± 3 dB
Speaker Type
4.5" (114.3 mm) woofer
0.4" (10 mm) dome tweeter
Balanced: Mic/Line configurable female XLR
Line: RCA & Hi-Z 1/4"
Line: RCA
Speaker: 1/4" TS at 8 Ohms
Power Requirements
110 - 125 VAC, 50/60 Hz, 90 W max
208 - 240 VAC, 50/60 Hz, 90 W max
Dimensions (W x D x H)
8.4 x 9 x 5.25" / 21.33 x 22.86 x 13.33 cm
9.5 lbs / 4.30 kg
