Anchor Audio EDP-7500ACDUAL/HH/HBM Explorer Pro AC/DC Deluxe Package with EXP-7501 Speaker, Cable, 2 x SS-550 Stand, WH-6000 Handheld, HBM-TA4F Headband Mic

SKU: AAEDP7ADHHHB MFR: EDP-7500ACDUAL/HH/HB
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$2,491.00 List Price

Our Price

$2,047.00 $81 per week
Free Expedited Shipping
Qty:
Add to Wishlist

About the Anchor Audio EDP-7500ACDUAL/HH/HBM

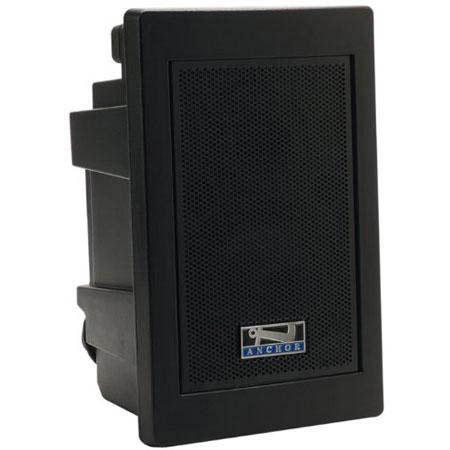

The Anchor Audio EXP-7500U2 Explorer Pro is a portable public address system ideal for schools, corporate trainers and places of worship. The 2-way speaker is powered by 75 W of power to produce up to 110 dB of clear, intelligible sound. The rear panel features bass and treble tone controls and 3 pull-type volume controls for the full complement of input and output connectors. These include a pair of XLR microphone inputs, both 1/4" and RCA lines in and out and a 2 ohm speaker out that connects to the passive satellite.

The EXP-7500U2 offers an unusually flexible set of powering options, which include an internal battery and charger with an accompanying pair of LED indicators, AC power with a multi-voltage power supply and a 12 V DC power in - the system may be operated from the power port of an automobile. For extra protection, the amplifier and speakers are protected from thermal overload and short circuit.

The Anchor Audio EXP-7501 is a 2-way, high-output passive satellite speaker, made for use with the Explorer Pro portable PA system. The ported, durable, molded polypropylene enclosure houses a 6.5" woven fabric woofer and a high-output, horn-loaded tweeter.

The Anchor HBM-60 is a lightweight headband microphone designed for hands-free operation. The microphone features a cardioid polar pattern, which is effective in minimizing noise at the off-axis sections of the microphone. The cardioid pattern provides high gain before feedback making it suitable for use near monitor speakers. The microphone is fixed to a flexible boom for easy positioning and optimum pickup. The cable is terminated with a Switchcraft TA4F 4-pin mini XLR plug, compatible with Anchor wireless body pack transmitters.

The Anchor Audio WH-6000 is a 16-channel UHF wireless handheld transmitter for use with Anchor Audio portable PA systems.

The Anchor Audio SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems.

Anchor Audio EDP-7500ACDUAL/HH/HBM Includes

  • Anchor Audio EXP-7500U2 Explorer Pro Speaker
  • EXP-7501 Speaker
  • SC-50NL Companion Speaker Cable
  • 2 x SS-550 Stands
  • WH-6000 Handheld Mic
  • HBM-TA4F Headband Mic
  • Anchor Audio Warranty

Anchor Audio EDP-7500ACDUAL/HH/HBM Features

  • EXP-7500U2 Speaker: Portable, active PA speaker with built-in rechargeable battery and charger
  • EXP-7500U2 Speaker: Efficient 60 W internal amplifier with thermal overload and short circuit protection
  • EXP-7500U2 Speaker: Built-in active limiter increases system headroom and intelligibility, lowers distortion
  • EXP-7500U2 Speaker: Clear, undistorted sound with up to 110 dB output level for reaching crowds up to 800
  • EXP-7500U2 Speaker: 6.5" woven fiber woofer and high output horn tweeter with metal grille cover
  • EXP-7500U2 Speaker: Durable, injection-molded polypropylene speaker case
  • EXP-7500U2 Speaker: Separate LED displays for battery condition and charge status
  • EXP-7500U2 Speaker: Dual pull knobs provide separate level controls over microphone inputs and receivers
  • EXP-7500U2 Speaker: Dedicated pull knob for voice over live narration level and program music line in
  • EXP-7500U2 Speaker: Automatic speech projection circuit isolates and boosts 2 kHz - 12 kHz frequency range for greater speech clarity
  • EXP-7500U2 Speaker: Dual internal wireless receivers are designed for use with Anchor wireless microphones
  • EXP-7501 Speaker: 2-way passive companion speaker for Anchor Audio Explorer Pro Powered PA system and Ensign Lecterns
  • EXP-7501 Speaker: Matched to capabilities and specifications of host system for seamless expansion, integration
  • EXP-7501 Speaker: 6.5" woven fiber woofer, horn-loaded high-output tweeter
  • EXP-7501 Speaker: Ported enclosure for improved low end reproduction
  • EXP-7501 Speaker: Rugged, high-quality 4-pole Neutrik Speakon connector
  • Cardioid Polar Pattern of Headband Mic: The cardioid polar pattern results in high gain before feedback, making it suitable for use near monitor speakers
  • Flexible Boom of Headband Mic: The microphone is stationed on a flexible boom for easy positioning and optimum pickup
  • TA4F Connection of Headband Mic: The cable length measures 36" and terminates to a TA4F mini XLR connection, compatible with Anchor wireless transmitters

Anchor Audio EDP-7500ACDUAL/HH/HBM Specifications

EXP-7500U2 Speaker: Power Output 75W
EXP-7500U2 Speaker: Speakers 6.5" Woven Fiber Woofer
Horn Tweeter
EXP-7500U2 Speaker: SPL 110dB @ 1m
EXP-7500U2 Speaker: Battery Type Built-In rechargeable battery and charger
EXP-7500U2 Speaker: Frequency Response 80Hz - 16kHz
EXP-7500U2 Speaker: Inputs 2 x XLR Female Balanced Microphone
2 x L, R RCA Phono Unbalanced Line
1 x 1/4" TS Phone Unbalanced Line
1 x 12 VDC In
EXP-7500U2 Speaker: Output 1 x 1/4" Phone Companion Speaker Out(2 Ohm)
2 x L, R RCA Phono Unbalanced Line
1 x 1/4" TRS Phone Balanced Line
EXP-7500U2 Speaker: AC Power 90 - 264VAC, 50/60Hz
EXP-7500U2 Speaker: Wireless Receiver UHF x 2
EXP-7500U2 Speaker: Microphone Type No
EXP-7501 Speaker: Low Frequency Driver 6.5" woven fiber woofer
EXP-7501 Speaker: Mid Frequency Driver No
EXP-7501 Speaker: High Frequency Driver 1" Horn-loaded tweeter
EXP-7501 Speaker: Frequency Range 80 Hz - 16 kHz
EXP-7501 Speaker: Impedance 8 Ohms
EXP-7501 Speaker: Maximum Power Handling 60 Watts
EXP-7501 Speaker: Maximum Sound 110dB @ 1m Pressure Level (SPL)
EXP-7501 Speaker: Controls & Indicators No
EXP-7501 Speaker: Connectors 1 x Speakon
EXP-7501 Speaker: Shielded No
Headband Mic: Transducer Electret condenser
Headband Mic: Polar Pattern Uni-directional
Headband Mic: Frequency Response 30Hz to 15kHz
Headband Mic: Dynamic Range (Typical) Sensitivity: -48dB @ 1kHz
Headband Mic: Power Requirements 1-10 volts DC
Headband Mic: Output Impedance Lo-Z
Headband Mic: Output Connectors TA4F (mini XLR female)
Headband Mic: Cable 36" / 91.44 cm
Dimensions (H x W x D) EXP-7501 Speaker: 16.5 x 10.5 x 10" (420 x 270 x 250mm)
EXP-7500U2 Speaker: 16.5 x 10.5 x 10" (420 x 270 x 250mm)
Weight EXP-7500U2 Speaker: 23 lbs (10.4kg)
Headband Mic: 0.07 oz
