Anchor Audio

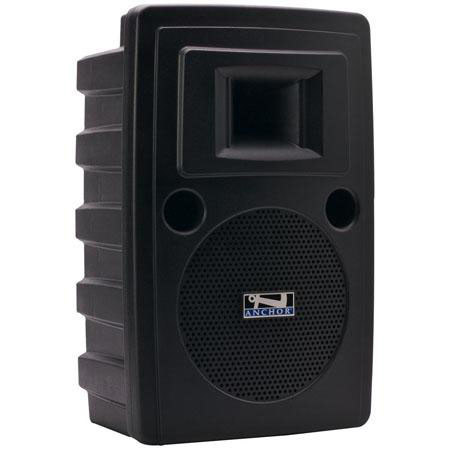

Anchor Audio LDP-7500AC/DUAL/HBM/HBM AC Powered Liberty Platinum Deluxe Package with LIB-7501 Speaker, 2 x SS-550 Stands, 2 x HBM-TA4F Headband Mic

SKU: AALDP7AD2HBM MFR: LDP-7500AC/DUAL/HBM/
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$3,079.00 List Price

Our Price

$2,592.00
Free Shipping
Qty:

Add to Wishlist

About the Anchor Audio LDP-7500AC/DUAL/HBM/HBM

The Anchor Audio Liberty 7500 is a powerful portable PA system that operates on an AC power. It features 2 built-in wireless microphone receivers that enable you to easily add an Anchor Audio wireless handheld or clip-on microphone. With multiple inputs for wired microphones and the ability to add the separately available LIB-7501 external companion speaker, the Liberty is the ultimate easy to transport PA system.

The Liberty system was designed to be a great sounding PA system that sets up quickly and can be used without training. There are a lot of useful features built into the Liberty, like the speech projection button that improves the voice intelligibility, a built-in limiter that reduces distortion and battery status LEDs.

The built-in MP3 player features an SD Card slot, a USB port and a mini-plug input. You can save some MP3 files on an SD Card, load it into the slot and play them from the Liberty and even set songs to play on repeat.

The Anchor Audio LIB-7501 is an additional speaker that can be used with an Anchor Audio Liberty PA system. The Liberty system features a dedicated "speaker out" jack where you can attach the LIB-7501. This jack supplies the LIB-7501 with the audio signal and with the amplification to drive its speaker. No other power source or cables are needed.

A speaker stand mounting hole is supplied at the base of the LIB-7501. The speaker will perform at its best when mounted on a stand. The LIB-7501 is a great way to expand the sound coverage of the Liberty PA system.

The Anchor Audio SC-50NL Cable is used to connect the LIB-7501 Companion Speaker to the LIB-7500CU1 Speaker. The Anchor Audio SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems.

The Anchor HBM-60 is a lightweight headband microphone designed for hands-free operation. The microphone features a cardioid polar pattern, which is effective in minimizing noise at the off-axis sections of the microphone. The cardioid pattern provides high gain before feedback making it suitable for use near monitor speakers. The microphone is fixed to a flexible boom for easy positioning and optimum pickup. The cable is terminated with a Switchcraft TA4F 4-pin mini XLR plug, compatible with Anchor wireless body pack transmitters.

Anchor Audio LDP-7500AC/DUAL/HBM/HBM Includes

  • Anchor Audio LIB-7500MU2AC AC Powered PA System
  • LIB-7501 Speaker
  • 2 x SS-550 Stands
  • 2 x HBM-TA4F Headband Mic
  • SC-50NL Connection Cable
  • Anchor Audio Warranty

Anchor Audio LDP-7500AC/DUAL/HBM/HBM Features

  • LIB-7500MU2 PA System: Built-in MP3 player accepts SD card, USB flash drive, or 3.5 mm input for iPod
  • LIB-7500MU2 PA System: USB port for charging MP3/iPod
  • LIB-7500MU2 PA System: Voice Over music ducking feature
  • LIB-7500MU2 PA System: Two universal microphone input jacks
  • LIB-7500MU2 PA System: Recessed back panel protects knobs and ports
  • LIB-7500MU2 PA System: Ceramic compression driver
  • LIB-7500MU2 PA System: 10" neodymium woofer
  • LIB-7500MU2 PA System: Proprietary class D amplifier
  • LIB-7500MU2 PA System: Speaker out to power companion speaker
  • LIB-7501 Speaker: 117 dB of clear sound
  • LIB-7501 Speaker: Durable injection-molded case is tough, fade resistant and UV tested
  • LIB-7501 Speaker: 8-inch weather resistant woofer and constant-directivity titanium dome compression driver, tuned enclosure
  • SS-550 Stand: Heavy-duty brushed aluminum frame
  • Neutrik Speakon Connection: The SC-50NL features high-quality 4-pole Neutrik Speakon connectors that can join satellite XTR-6001s with the Xtreme Dual-Function Sound System
  • Connect up to 50 ft (15.24 m) Away: Join speakers up to 50 ft (15.24 m) apart using this cable
  • Cardioid Polar Pattern of Headband Mic: The cardioid polar pattern results in high gain before feedback, making it suitable for use near monitor speakers
  • Flexible Boom of Headband Mic: The microphone is stationed on a flexible boom for easy positioning and optimum pickup
  • TA4F Connection of Headband Mic: The cable length measures 36" and terminates to a TA4F mini XLR connection, compatible with Anchor wireless transmitters

Anchor Audio LDP-7500AC/DUAL/HBM/HBM Specifications

LIB-7500MU2 System: Power Output 125 watts AC
LIB-7500MU2 System: Input Connections 2 x XLR & 1/4" Combo Inputs
2 x Slots for Wireless Receivers
1 x 1/4" Line-Level Input
1 x 1/8" 3.5 mm Mini-Plug Input
LIB-7500MU2 System: Digital Connections 1 x USB Port
1 x SD Card Slot
LIB-7500MU2 System: Output Connections 2 x Unbalanced 1/4" Outputs
LIB-7500MU2 System: Phantom Power Yes, 36 V
LIB-7500MU2 System: Max Sound Pressure 110 dB Level (SPL)
LIB-7500MU2 System: Nominal Sensitivity Lo-Z Microphone = -52 dBV (2.5 mVrms)
Hi-Z Microphone = -43 dBV (7.5 mVrms)
Auxiliary (line) = -14 dBV (200 mVrms)
LIB-7500MU2 System: LF Driver 1 x 10" Neodymium Driver
LIB-7500MU2 System: HF Driver Ceramic Compression Driver
LIB-7500MU2 System: Frequency Response 60 Hz - 15 kHz (+/-3 dB)
LIB-7501 Speaker: Inputs 1 x 1/4" Speaker Input
LIB-7501 Speaker: SPL 117 dB
LIB-7501 Speaker: Frequency Response 60 Hz - 15 kHz (+/- 3 dB)
LIB-7501 Speaker: Speaker 8" Compression Driver
LIB-7501 Speaker: Mounting Mounting ring for a speaker stand at base
SS-550 Stand: Weight Capacity 75 lbs / 34.0 kg
SS-550 Stand: Height Range 38 to 70 in.
HBM-TA4F Mic: Transducer Electret condenser
HBM-TA4F Mic: Polar Pattern Uni-directional
HBM-TA4F Mic: Frequency Response 30Hz to 15kHz
HBM-TA4F Mic: Dynamic Range (Typical) Sensitivity: -48dB @ 1kHz
HBM-TA4F Mic: Power Requirements 1-10 volts DC
HBM-TA4F Mic: Output Impedance Lo-Z
HBM-TA4F Mic: Output Connectors TA4F (mini XLR female)
HBM-TA4F Mic: Cable 36" / 91.44 cm
Dimensions LIB-7500MU2 PA System: 22 x 14 x 11.5" (56 x 35.6 x 29.2 cm)
LIB-7501 Speaker: 22.5 x 13 x 10" (57 x 33 x 25 cm)
Weight LIB-7500MU2 PA System: 38 lbs (17 kg)
HBM-TA4F Headband Mic: 0.07 oz / 1.98 g
