Anchor Audio LDP-7500AC/DUAL/LM/LM AC Powered Liberty Platinum Deluxe Package with LIB-7501 Speaker, Cable, 2 x SS-550 Stands, 2 x LM-60 Lapel Mics

Anchor Audio
Anchor Audio LDP-7500AC/DUAL/LM/LM: Picture 1 thumbnail Anchor Audio LDP-7500AC/DUAL/LM/LM: Picture 2 thumbnail Anchor Audio LDP-7500AC/DUAL/LM/LM: Picture 3 thumbnail Anchor Audio LDP-7500AC/DUAL/LM/LM: Picture 4 thumbnail Anchor Audio LDP-7500AC/DUAL/LM/LM: Picture 5 thumbnail

About Anchor Audio LDP-7500AC/DUAL/LM/LM

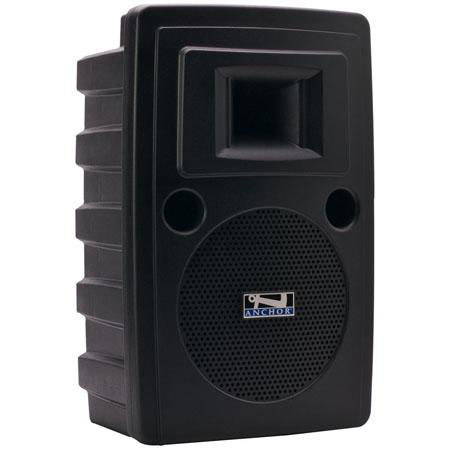

The Anchor Audio Liberty 7500 is a powerful portable PA system that operates on an AC power. It features 2 built-in wireless microphone receivers that enable you to easily add an Anchor Audio wireless handheld or clip-on microphone. With multiple inputs for wired microphones and the ability to add the separately available LIB-7501 external companion speaker, the Liberty is the ultimate easy to transport PA system.

The Liberty system was designed to be a great sounding PA system that sets up quickly and can be used without training. There are a lot of useful features built into the Liberty, like the speech projection button that improves the voice intelligibility, a built-in limiter that reduces distortion and battery status LEDs.

The built-in MP3 player features an SD Card slot, a USB port and a mini-plug input. You can save some MP3 files on an SD Card, load it into the slot and play them from the Liberty and even set songs to play on repeat.

The Anchor Audio LIB-7501 is an additional speaker that can be used with an Anchor Audio Liberty PA system. The Liberty system features a dedicated "speaker out" jack where you can attach the LIB-7501. This jack supplies the LIB-7501 with the audio signal and with the amplification to drive its speaker. No other power source or cables are needed.

A speaker stand mounting hole is supplied at the base of the LIB-7501. The speaker will perform at its best when mounted on a stand. The LIB-7501 is a great way to expand the sound coverage of the Liberty PA system. The Anchor Audio SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems. The LM-60 Cardioid, Electret Lavalier Microphone, with a 4-pin mini XLR female connector, is made for use with the Anchor Audio WB6000 beltpack transmitter.

Anchor Audio LDP-7500AC/DUAL/LM/LM Features

  • LIB-7500MU2 PA System: Built-in MP3 player accepts SD card, USB flash drive, or 3.5 mm input for iPod
  • LIB-7500MU2 PA System: USB port for charging MP3/iPod
  • LIB-7500MU2 PA System: Voice Over music ducking feature
  • LIB-7500MU2 PA System: Two universal microphone input jacks
  • LIB-7500MU2 PA System: Recessed back panel protects knobs and ports
  • LIB-7500MU2 PA System: Ceramic compression driver
  • LIB-7500MU2 PA System: 10" neodymium woofer
  • LIB-7500MU2 PA System: Proprietary class D amplifier
  • LIB-7500MU2 PA System: Speaker out to power companion speaker
  • LIB-7501 Speaker: 117 dB of clear sound
  • LIB-7501 Speaker: Durable injection-molded case is tough, fade resistant and UV tested
  • LIB-7501 Speaker: 8-inch weather resistant woofer and constant-directivity titanium dome compression driver, tuned enclosure
  • SS-550 Stand: Heavy-duty brushed aluminum frame
  • Cable: The SC-50NL features high-quality 4-pole Neutrik Speakon connectors that can join satellite XTR-6001s with the Xtreme Dual-Function Sound System
  • Cable: Connect up to 50 ft (15.24 m) Away: Join speakers up to 50 ft (15.24 m) apart using this cable

Anchor Audio LDP-7500AC/DUAL/LM/LM Specifications

LIB-7500MU2 System: Power Output
125 watts AC
LIB-7500MU2 System: Input Connections
2 x XLR & 1/4" Combo Inputs
2 x Slots for Wireless Receivers
1 x 1/4" Line-Level Input
1 x 1/8" 3.5 mm Mini-Plug Input
LIB-7500MU2 System: Digital Connections
1 x USB Port
1 x SD Card Slot
LIB-7500MU2 System: Output Connections
2 x Unbalanced 1/4" Outputs
LIB-7500MU2 System: Phantom Power
Yes, 36 V
LIB-7500MU2 System: Max Sound Pressure
110 dB Level (SPL)
LIB-7500MU2 System: Nominal Sensitivity
Lo-Z Microphone = -52 dBV (2.5 mVrms)
Hi-Z Microphone = -43 dBV (7.5 mVrms)
Auxiliary (line) = -14 dBV (200 mVrms)
LIB-7500MU2 System: LF Driver
1 x 10" Neodymium Driver
LIB-7500MU2 System: HF Driver
Ceramic Compression Driver
LIB-7500MU2 System: Frequency Response
60 Hz - 15 kHz (+/-3 dB)
LIB-7501 Speaker: Inputs
1 x 1/4" Speaker Input
LIB-7501 Speaker: SPL
117 dB
LIB-7501 Speaker: Frequency Response
60 Hz - 15 kHz (+/- 3 dB)
LIB-7501 Speaker: Speaker
8" Compression Driver
LIB-7501 Speaker: Mounting
Mounting ring for a speaker stand at base
SS-550 Stand: Weight Capacity
75 lbs / 34.0kg
SS-550 Stand: Height Range
38 to 70 in / 96.52 to 177.8cm
LIB-7500MU2 PA System: 22 x 14 x 11.5" (56 x 35.6 x 29.2 cm)
LIB-7501 Speaker: 22.5 x 13 x 10" (57 x 33 x 25 cm)
LIB-7500MU2 PA System: 38 lbs (17.23 kg)
