Anchor Audio LDP-7500CAC/DUAL/EM/HBM AC Powered Liberty Platinum Deluxe Package with LIB-7501, SC-50NL, 2 x SS-550, EM-TA4F & HBM-TA4F with Bodypacks

Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500

$3,079.00 List Price

Our Price

Free Shipping
Add to Wishlist

About the Anchor Audio LDP-7500CAC/DUAL/EM/HBM

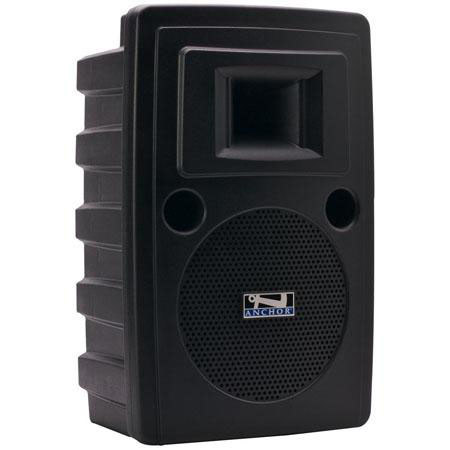

The Anchor Audio LIB-7500CU2 Liberty Platinum portable PA system has built-in CD player, two Wireless Receivers and a USB port to charge your USB device. Two wireless microphone options operate in a UHF frequency range and 16 user-selectable channels offer great reception in your listening area. It can be used in any school function, outdoor PGA event, for a political rally or at military base ceremony.

The Anchor Audio LIB-7501 is an additional speaker that can be used with an Anchor Audio Liberty PA system. The Liberty system features a dedicated "speaker out" jack where you can attach the LIB-7501. This jack supplies the LIB-7501 with the audio signal and with the amplification to drive its speaker. No other power source or cables are needed. A speaker stand mounting hole is supplied at the base of the LIB-7501. The speaker will perform at its best when mounted on a stand. The LIB-7501 is a great way to expand the sound coverage of the Liberty PA system.

The Anchor Audio SC-50NL Cable is used to connect the LIB-7501 Companion Speaker to the LIB-7500CU1 Speaker. The Anchor SS-550 is a Heavy-Duty Speaker Stand for use with Explorer and Xtreme Sound Systems. The Anchor Audio EM-TA4F UltraLite Single Ear Microphone features a low profile and light weight. The cable terminates to a TA4-female connection for use with compatible Anchor Audio gear.

The Anchor HBM-60 is a lightweight headband microphone designed for hands-free operation. The microphone features a cardioid polar pattern, which is effective minimizing noise at the off-axis sections of the microphone. The cardioid pattern provides high gain before feedback making it suitable for use near monitor speakers. The microphone is fixed to a flexible boom for easy positioning and optimum pickup. The cable is terminated with a Switchcraft TA4F 4-pin mini XLR plug, compatible with Anchor wireless body pack transmitters.

Anchor Audio LDP-7500CAC/DUAL/EM/HBM Includes

  • Anchor Audio LIB-7500CU2 Liberty Platinum PA System
  • LIB-7501 Companion Speaker
  • SC-50NL Speaker Cable
  • 2 x SS-550 Stands
  • HBM-TA4F Headband Mic
  • EM-TA4F UltraLite Mic
  • Anchor Audio Warranty

Anchor Audio LDP-7500CAC/DUAL/EM/HBM Features

  • PA System: Reach Crowds of 2000+
  • PA System: Built-In CD Player
  • PA System: Dual Built-in UHF Wireless Receiver w/16 User Selectable Channels
  • PA System: "Voice Over" Music Ducking Feature
  • PA System: Two Universal Mic Input Jacks
  • PA System: Recessed Back Panel Protects Knobs and Ports
  • PA System: Ceramic Compression Driver
  • PA System: 10" Neodymium Woofer
  • PA System: Proprietary Class D Amplifier
  • Companion Speaker: Durable injection-molded case is tough, fade resistant and UV tested
  • Companion Speaker: 8" weather resistant woofer and constant-directivity titanium dome compression driver, tuned enclosure
  • Connection Cable - Neutrik Speakon Connection: The SC-50NL features high-quality 4-pole Neutrik Speakon connectors that can join satellite XTR-6001s with the Xtreme Dual-Function Sound System
  • Connection Cable - Connect up to 50 ft (15.24 m) Away: Join speakers up to 50 ft (15.24 m) apart using this cable
  • Speaker Stand: Heavy-duty brushed aluminum frame
  • Headband Mic - Cardioid Polar Pattern: The cardioid polar pattern results in high gain before feedback, making it suitable for use near monitor speakers
  • Headband Mic - Flexible Boom: The microphone is stationed on a flexible boom for easy positioning and optimum pickup
  • Headband Mic - TA4F Connection: The cable length measures 36" and terminates to a TA4F mini XLR connection, compatible with Anchor wireless transmitters

Anchor Audio LDP-7500CAC/DUAL/EM/HBM Specifications

PA System: AC Mode 125W
PA System: Power Supply 110V AC
PA System: Max SPL @ Rated Power 110 dB
PA System: Frequency Response 60 Hz - 15 kHz ± 3dB
PA System: Line Output (post fader) Isolated, 600 Ohms, 1/4" phone
PA System: AC Power Reqs 100 - 240 VAC, 50/60 Hz, 300W max
PA System: Mic Inputs Lo-Z (1 KW), balanced, XLR
12 VDC condenser mic (phantom) power
Hi-Z (10 KW), unbalanced, 1/4" phone
Hi-Z (10 KW), unbalanced, 1/8" stereo, 1/4" phone
PA System: Sensitivity for Rated Output Lo-Z Microphone -52 dBV (2.5 mVrms)
Hi-Z Microphone -43 dBV (7.5 mVrms)
Auxiliary (line) -14 dBV (200 mVrms)
PA System: Phantom Power 36V
PA System: Speaker Out 4-pole Neutrik Speakon jack
Weight PA System: 38 lbs / 17 Kg
Companion Speaker: Inputs 1 x 1/4" Speaker Input
Companion Speaker: SPL 117 dB
Companion Speaker: Frequency Response 60 Hz - 15 kHz (+/- 3 dB)
Companion Speaker: Speaker 8" Compression Driver
Companion Speaker: Mounting Mounting ring for a speaker stand at base
Stand: Load Capacity 75 lbs / 34kg
Stand: Height Range 38 to 70 in / 96.52 to 177.8cm
Headband Mic: Transducer Electret condenser
Headband Mic: Polar Pattern Uni-directional
Headband Mic: Frequency Response 30Hz to 15kHz
Headband Mic: Dynamic Range (Typical) Sensitivity: -48dB @ 1kHz
Headband Mic: Power Requirements 1-10 volts DC
Headband Mic: Output Impedance Lo-Z
Headband Mic: Output Connectors TA4F (mini XLR female)
Headband Mic: Cable Length 36" / 91.44 cm
Dimensions Companion Speaker: 22.5 x 13 x 10" (57 x 33 x 25 cm)
PA System: 22" x 14" x 11.5" (56 x 35.6 x 29.2 cm)
Weight Headband Mic: 0.07 oz / 1.98 g
PA System: 38 lbs / 17 Kg
