Anchor Audio

Anchor Audio PRO-570/2D/5S Wireless Intercom System with Two Dual & Five Single Ear Muff Headset

SKU: AAPRO5702D5S MFR: PRO-570/2D/5S
Usually ships in 7-10 Business Days.
Your card will only be charged once item ships.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

$6,917.00 List Price

Our Price

Free Shipping
Add to Wishlist

Protect your investment

About the Anchor Audio PRO-570/2D/5S

The Anchor Audio PRO-570/2D/5S is a digital wireless intercom system that is easy to configure and easy to operate. The system allows duplex communication by seven users with two master belt pack and five remote belt packs. It has a 500 ft. line of sight range and a built-in Bluetooth capability. The transmitter and receiver operate utilizing in the FCC license free 902-928 MHz range for the U.S. without the need for a base station. The ergonomically designed belt packs have a sturdy XLR headset jack, two heavy duty antennas, headset volume control, microphone gain control, A/B channel selection and PTT or Always On mode. The out of Range LED indicator tells each user when to move closer to the master belt pack.

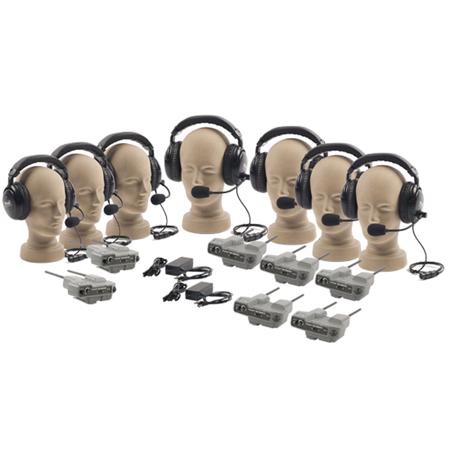

Anchor Audio PRO-570/2D/5S Includes

  • Anchor Audio Two Dual Muff Headset
  • Five Single Muff Headset
  • Two Master Belt Pack (BP-500M)
  • Five Remote Belt Packs (BP-500R's)
  • Two Gang Charger GC-500 with Cardboard Carrying Case
  • Rechargeable Batteries
  • Anchor Audio Warranty

Anchor Audio PRO-570/2D/5S Features

  • Heavy Duty 4-Pin XLR Connector
  • A/B Channel Selection
  • "Push to Talk" or "Always On" Modes
  • Microphone Gain Setting
  • Out of Range Indicator LED
  • Low Battery Indicator LED
  • Charging Indicator LED
  • Rechargeable Batteries Included
  • Gang Charger for Four Belt Packs
  • FCC License Free
  • Bluetooth Compatibility
  • 500 ft. Line of Sight Wireless Communication

Anchor Audio PRO-570/2D/5S Specifications

Belt Pack: RF Frequency Range 902-928MHz
Belt Pack: Modulation FSK
Belt Pack: Range (line of sight) Duplex 500' / 152.4 m
Belt Pack: Antenna 1/2 - wavelength dipole
Belt Pack: Power Supply 9VDC, 1.2ADC
Belt Pack: Battery Life 12 hours
Drivers Dynamic, 40mm
Impedance 300 Ohms +/- 15%
Frequency Response 20Hz - 20kHz
SPL 91dB +/- 3dB
Rated Power > 40mW
Distortion < 5%
Microphone Dynamic, Uni-directional, Low impedance
Microphone Sensitivity Referenced to 0dB=1V/ ubar, 1kHz
Min -85 dB / Typical -83 dB / Max -81 dB
Mic Frequency Response 200Hz - 12kHz
Connector Plug 4-pin XLR, female
Bluetooth Range: 10-20 ft LOS
Frequency: 2.4 GHz
Dimensions Belt Pack: 4.5" x 6.25" x 3.75" (114.3 x 158.75 x 95.25 mm)
Weight Belt Pack: 15 oz / 425.24g (with batteries)
Dual Headset: 16 oz /453.59g
Single Headset: 13 oz / 368.5g
