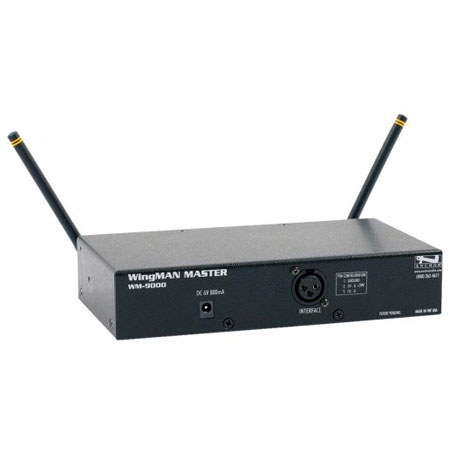

The WM-9000 WingMAN from Anchor Audio is a base-station interface that provides full-duplex communication between ProLink beltpacks and unbalanced party-line intercom systems such as PortaCom and ClearCom. The WingMAN has a 3-pin XLR connector for connecting to your wired intercom systems. With the WingMAN, users can still take advantage of the 2 separate user groups provided by the ProLink system, as well as one of 2 party-line groups.
Two antennas are provided on the base station to provide an operating range of up to 250 feet.
|Range||Up to 250 feet (76 m) Line-of-Sight|
|Channels||2 Selectable Wireless Groups
2 Selectable Wired Channels
|Frequency Selection||4 Per Group|
|Connectors||1 x 3-Pin XLR Wired System Interface Connector
1 x Receive Antenna Jack
1 x Transmit Antenna Jack
1 x Power Input
|Antenna||1/2 Wave Length Dipole|
|Dimensions (W x D x H)||8.5 x 4.5 x 1.7 inch (216 x 114 x 43mm)|
|Weight||2.4 lbs (1.1kg)|
