Acratech Ultimate Ballhead with Quick Release, Level and Detent Pin, Supports 25 lbs.

Our Price

$314.95
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: In Stock & Ready to Ship

Free Expedited Shipping

See all shipping options

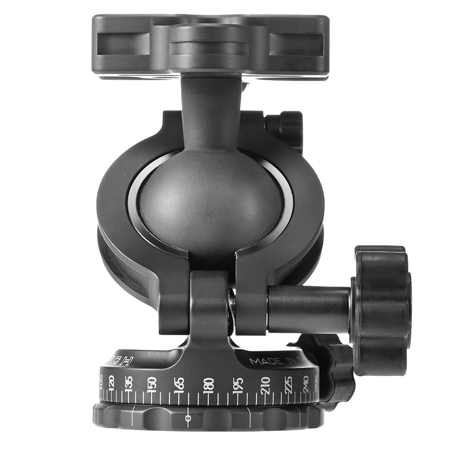

Acratech Ultimate Ballhead: Picture 1 regular $314.95

About Acratech Ultimate Ballhead

The Acratech Ultimate Ballhead is the result of innovative efficient design, created for combining low mass with incredible stopping power. Available with or without an installed Arca-type quick release clamp, it is an ideal head for those that do not require the progressive tension control of the heavier Arca-Swiss B1.

The innovative design of the Acratech gives the photographer full access to 25% of a sphere at any time and it is entirely capable of providing support in any direction so long as the tripod legs are not overwhelmed.

The Acratech Ultimate Ballhead is commonly used for Landscape/scenery, Night shots, Portraits and more.The Acratech Ultimate Ballhead is popular because customers like the following qualities of the Acratech Ultimate Ballhead: Attaches firmly, Large range of motion, Stable and Strong clamp

Acratech Ultimate Ballhead Features

  • Weighs less than 1 lb (.45kg) with quick release clamp.
  • Easily holds over 25 lbs (11.4kg) at any angle.
  • Full movements allow any camera position.
  • Precision C.N.C. machined.
  • With left/right side controls
  • Compatible with Kirk, Arca, R.R.S. and many other QR plates.
  • Beautiful satin black anodized finish.
  • Fits all standard tripods (1/4-20 and 3/8-16 threads).
  • Engraved degree markings.
  • Solid precision feel.
  • Ball will not shift when tightened.
  • Oilless and greaseless ball will not attract or hold dirt and debris.
  • All knobs are secured so they cannot vibrate loose and fall off.

Acratech Ultimate Ballhead Specifications

Maximum Camera Supported
Large format cameras
Load Capacity
25 lb (11.4 kg)
Quick Release
Yes
Spirit Level
Yes
Camera Mount Thread Size
Dependent on quick release plate used
Tripod Mount Thread Size
3/8"-16 (1/4"-20 reducer bushing supplied)
Height
4.1" (10.4 cm)
Weight
1 lb (453 g)
Warranty
Acratech 5 year warranty
Mfr #
1126
SKU
ACR1126

Acratech Ultimate Ballhead Reviews Powered by TurnTo®

Review Snapshot®


4.9

(based on 11 reviews)

100%

of respondents would recommend this to a friend.

Ratings Distribution

  • 5 Stars



    (10)

  • 4 Stars



    (1)

  • 3 Stars



    (0)

  • 2 Stars



    (0)

  • 1 Stars



    (0)

Most Liked Positive Review



A simple, sturdy, stable ballhead

I use this BH atop my Induro C213 tripod. Together they provide a solid base for my Canon 5d Mk2 using a 70-200 f/2.8L with a 2X TC. I love the simplicity of this ballhead which has only one tension control knob. A real pleasure to use and to carry, as it adds less than a pound to my rig. I only wish that the detent pin worked with the QR plates I already own from a Giotto BH.

Reviewed by 11 customers

(1 of 1 customers found this review helpful)


5.0

Super for macro!

By

I was frustrated with my previous ballhead because of slippage; friend recommended Acratech. Great improvement for shooting macro shots with my Nikon D7000 + 105mm lens.

(1 of 1 customers found this review helpful)


5.0

Pro Ballhead

By

If you are having problems with stability on your tripod, especially in the portrait mode (forward or downward lens creep on your ballhead because your camera rotates on its mounting screw), this will solve that problem handily. This head is a tidy, light ballhead for all uses. Be sure to order the right, camera specific quick release plate.


5.0

Rock steady ballhead

By

I have only recently received this head. I use it on a Manfrotto tripod. The quick release is great; however, the head did not come with the quick release plate, which was quite annoying. I used it this past Monday for my grandson's graduation at a large arena where I was seated a good distance away from the stage and nearly at the top of the seating area. My camera was mounted at a sharp angle and it held steady once it was set.


5.0

Great Ballhead, exceeded expectations

By

It takes a bit getting used to but once I got my technique down with this ballhead, it just became an extension of me. The friction adjustment on the ball works extremely well and you can dial in just how much resistance you want very easily. When you tighten it down, it doesn't move, period. Very well made and built to last. I consider it a good value for the price. I use it with an old Manfrotto heavy aluminum studio tripod and it is rock solid stable.

(1 of 1 customers found this review helpful)


4.0

Great ballhead, very solid

By

This is a very solid ballhead. It easily locks in any position with no sag. The gimbal design does take some getting used to. Sometimes you have to rotate the head to get it into the position you need. The quick release is very convenient and quick to operate. Custom quick release plates are a bit expensive. The detent pin has saved my camera at least once.

(1 of 1 customers found this review helpful)


5.0

A simple, sturdy, stable ballhead

By

I use this BH atop my Induro C213 tripod. Together they provide a solid base for my Canon 5d Mk2 using a 70-200 f/2.8L with a 2X TC. I love the simplicity of this ballhead which has only one tension control knob. A real pleasure to use and to carry, as it adds less than a pound to my rig. I only wish that the detent pin worked with the QR plates I already own from a Giotto BH.


5.0

Incredible ballhead at a fair price

By

A rock solid ball head at a fair price. Its specs are very conservative -- it can hold more than 25 lbs. It is so smooth in its operation. I have tried a lot of ballheads and this is by far the best for the money

(1 of 1 customers found this review helpful)


5.0

Makes Macro photograghy much easier.

By

The Acratech ballhead is perfect for macro photography. It has taken my macro shots to a new level.

(1 of 1 customers found this review helpful)


5.0

Small with firm grip

By

For landscape and micro photos of insects The great thing is its compactness. Its G shape and factory setting of angle I cannot comprehend.

(2 of 2 customers found this review helpful)


5.0

Excellent value, great design

By

Great for hiking, backpacking and serious photography--light,solid, and simple

Q&A

Questions & Answers Powered by TurnTo®

Questions about this item:

adam s  I just bought one of these and I am disappointed that it didn't come with the level on the outside, that it is on the inside and the plate sets on top of it - kind of defeating the purpose - I just received the head yesterday. I bought it from outdoor photogear. I want this version as as I do both macro and landscape. The first I got was 350 - any reason why - what makes that version more expensive than this one?
JULIE S  Sounds like you may have received a locking level clamp with detent pin verses a quick release clamp with detent pin? Off the top of my head, I can not tell you the difference except the locking level clamp is adjustable to fit different size plates and that may be the reason for the price difference but I am not positive. I recommend reviewing the Acratech website. The website is very informative and provides video tutorials, reviews, comparisons & company contact information. I'm sure by reviewing it or calling them you will fiind an answer to your question. I Love my acratech ballhead and wish you luck with yours.
adam s  I just bought one of these and I am disappointed that it didn't come with the level on the outside, that it is on the inside and the plate sets on top of it - kind of defeating the purpose - I just received the head yesterday. I bought it from outdoor photogear. I want this version as as I do both macro and landscape. The first I got was 350 - any reason why - what makes that version more expensive than this one?
JULIE S  Sounds like you may have received a locking level clamp with detent pin verses a quick release clamp with detent pin? Off the top of my head, I can not tell you the difference except the locking level clamp is adjustable to fit different size plates and that may be the reason for the price difference but I am not positive. I recommend reviewing the Acratech website. The website is very informative and provides video tutorials, reviews, comparisons & company contact information. I'm sure by reviewing it or calling them you will fiind an answer to your question. I Love my acratech ballhead and wish you luck with yours.
