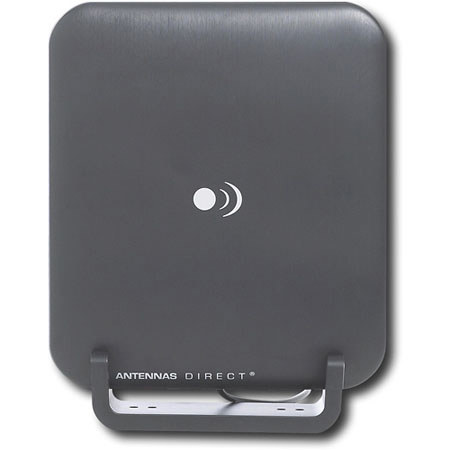

Antennas Direct ClearStream CSM-1 Micron Long-Range Digital TV Antenna
Antennas Direct

Antennas Direct ClearStream CSM-1 Micron Indoor Long-Range Digital TV Antenna

SKU: ADCSM1 MFR: CSM-1
What's Included
What's Included With This Item:
  • Antennas Direct ClearStream CSM-1 Micron Indoor Digital TV Antenna
  • Owner's Manual
  • Antennas Direct Warranty
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$59.99
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About this item

The Antennas Direct ClearStream CSM-1 Micron Indoor Long-Range Digital TV Antenna represents a new breakthrough in size and gain. Advanced design software allows this 10" x 11" antenna to be smaller and more powerful than ever before. This leap forward in efficient design allows up to 98% of the available broadcast signal to actually reach the incoming antenna cable rather than being lost to impedance mismatches.

What's Included With This Item

  • Antennas Direct ClearStream CSM-1 Micron Indoor Digital TV Antenna
  • Owner's Manual
  • Antennas Direct Warranty

Key Features

  • Up to 30-mile range: With a 70deg. beamwidth pattern delivers a clear DTV signal
  • 4.5 dBi peak gain: For concentrating radiated power from a specific direction. Optimized for the UHF band and provides nominal reception of high VHF band signals
  • Table- or wall-mountable: For optimal placement

Technical Specs

Antenna Range Up to 30 Miles
Beamwidth (Horizontal Plane) 470 to 700 MHz: 70 degrees
VSWR Typical 2:1 or better, Max 3:1, typical less than 2:1 from 470 MHz to 700 MHz
Front to Back Ratio Typical 15 dBi
Directivity Typical 8.1 dBi Max 8.25dBi @ Channel 35
Dimensions (H x W x D) 10" x 11" x 4-1/2" (25.4 x 27.9 x 10.2 cm)
Weight 1.5 lbs / 0.68 kg
