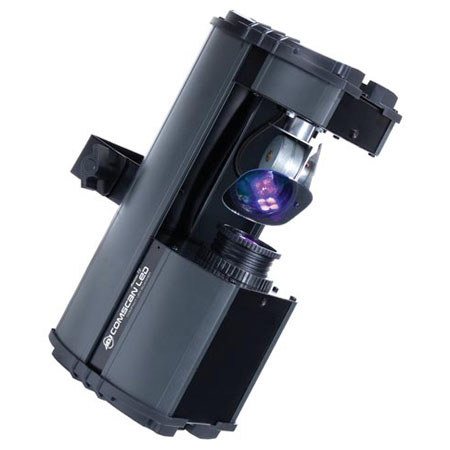

American DJ Comscan LED Scanner, 5 DMX Channels, 3 Operating Modes, 13 Degrees Beam Angle

SKU: ADJCOM513

This item is no longer available.

Overview
Compare
Learn
Specs
Protection

American DJ Comscan LED Scanner Specifications

Related Articles & Videos

About American DJ Comscan LED Scanner

The American DJ Comscan LED Scanner is a DMX compatible scanner with an advanced high performance LED source. Up to eight gobos/colors provide a variety of color changes and 3 operating modes include DMX controller, Master/Slave mode & Sound Active modes. The American DJ Comscan LED Scanner is ideal for DJ truss, nightclub installation, stage lighting rigs and more.

American DJ Comscan LED Scanner Features

  • Compact & portable high performance mobile DMX scanner with an advanced high performance LED source
  • 8 gobos/colors + spot
  • Gobos & Color are on the same wheel
  • DMX-512 protocol (5 DMX Channels)
  • 4-Button menu system LED Display making it easy to navigate
  • 3 Operational modes: DMX controller, Master/Slave & Sound Active
  • Exciting built-in lighting programs
  • Pan/Tilt Inversion Mode: when using 4 scanners in Master/Slave Scanner 1 & 3 sync opposite Scanner 2 & 4
  • Manual focusing lens
  • Gobo Shake effect
  • Dimming: 0-100%
  • Strobe effect
  • Beam angle: 13-degrees
  • X/Y mirror movement
  • Pan: 166-degree (DMX); 104-degree (Sound Active)
  • Tilt: 54-degree (DMX); 40-degree (Sound Active)
  • 1.8 degree Stepper motors with micro stepping
  • Hanging Bracket + safety hook included
  • Power consumption: 30W max
  • Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
  • Run all night - No duty cycle - Unit stay cool all night
  • No cooling fan required - Very little maintenance needed
  • Extreme long lifetime of the LEDs (30,000 hr. rating)
  • Multi-voltage operation: AC 100V-240V 50/60Hz- IEC socket
