About American DJ Comscan LED Scanner System

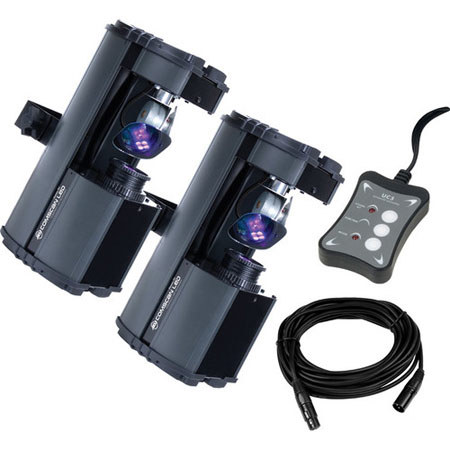

The American DJ Comscan LED Scanner System features a pair of Comscan LED scanner lights, a UC3 DMX controller and DMX cable, for unleashing the true potential of your Comscan LEDs right out of the box. The UC3 is compact and easy-to-use, with access to all of the Comscans basic functions and controls. The Comscan features an advanced high performance LED source. Up to eight gobos/colors provide a variety of color changes and 3 operating modes include DMX controller, Master/Slave mode & Sound Active modes. The American DJ Comscan LED Scanner is ideal for a DJ truss, nightclub installation, stage lighting rigs and more.
American DJ Comscan LED Scanner System Features
- Compact & portable high performance mobile DMX scanner with an advanced high performance LED source
- 8 gobos/colors + spot
- Gobos & Color are on the same wheel
- DMX-512 protocol (5 DMX Channels)
- 4-Button menu system LED Display making it easy to navigate
- 3 Operational modes: DMX controller, Master/Slave & Sound Active
- Exciting built-in lighting programs
- Pan/Tilt Inversion Mode: when using 4 scanners in Master/Slave Scanner 1 & 3 sync opposite Scanner 2 & 4
- Manual focusing lens
- Gobo Shake effect
- Dimming: 0-100%
- Strobe effect
- Beam angle: 13-degrees
- X/Y mirror movement
- Pan: 166-degree (DMX); 104-degree (Sound Active)
- Tilt: 54-degree (DMX); 40-degree (Sound Active)
- 1.8 degree Stepper motors with micro stepping
- Hanging Bracket + safety hook included
- Power consumption: 30W max
- Compatible with American DJ UC3 Series easy-to-use controllers (sold Separately)
- Run all night - No duty cycle - Unit stay cool all night
- No cooling fan required - Very little maintenance needed
- Extreme long lifetime of the LEDs (30,000 hr. rating)
- Multi-voltage operation: AC 100V-240V 50/60Hz- IEC socket
