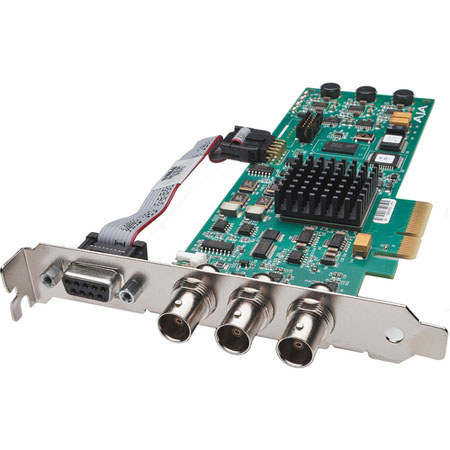

AJA PCIe 4x Card for Digital 3G, HD and SD I/O
See all AJA items

AJA PCIe 4x Card for 8/10-bit Uncompressed Digital 3G, HD and SD I/O

SKU: AJCOR3G
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
AJA 12G-AMA 12G-SDI 4-Ch Balanced Audio Embedder/Disembedder Mini-Converter
$1,399.00
undefined undefined: Picture 1 regular
AJA KONA 4 4K, 2K, 3G/Dual-Link HD/HD/SD 10-Bit PCIe Card, Breakout Box, 3xCable
$3,105.00
undefined undefined: Picture 1 regular
AJA KONA LHe Plus HD/SDI Analog Video & PCIe Card, Bundle with KL-BOX-LH-RO
$1,855.00
undefined undefined: Picture 1 regular
AJA KONA LHe Plus HD/SDI 10-Bit Digital & 12-Bit Analog Video Capture PCIe Card
$1,485.00
$1,399.00
undefined undefined: Picture 1 regular
AJA KONA 5 10-Bit PCIe Card
$4,235.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

Select a plan in the Add Protection section above and purchase with this product by clicking “Add to Cart”.

image-protection

TRUSTED PROTECTION PLANS, EXCEPTIONAL SERVICE.

Invest In Your Gear and Peace Of Mind!

Accidents happen where life happens. Protect your favorite Adorama products and purchase a protection plan to stay covered from accidental damage, mechanical or electrical failure, and more.

Repair or Replacement

Repair or Replacement

If we can’t fix it, we’ll replace it at no additional cost.

Accidental Damage

Accidental Damage

Protect your product from drops, spills, and more.

Peace of Mind

Peace of Mind

Enjoy your gear without fear. We have you covered!

Malfunction Protection

Malfunction Protection

When regular use of your product over time results in mechanical or electrical failure.

Zero Deductible

Zero Deductible

We will never charge you a deductible after the purchase of a plan.

Customer-Focused Support

Customer-Focused Support

Our claims process is simple & easy and our customer service team is happy to help.

Adorama Protect powered by Extend is available for purchase to customers in the United States. Not available for purchase Internationally or in U.S. Territories.

Browse our FAQ

See Terms & Conditions

AJA AJA PCIe 4x Card Specifications

  • Compatible operating system

    Windows XP, Windows 7, Mac OS X and Linux

  • Video Input

    Digital: 3G/HD/SD-SDI, SMPTE-259/292/296/424

  • Video Output

    Digital: 3G/HD/SD-SDI, SMPTE-259/292/296/424

  • Audio Input

    Digital: 16-channel 24-bit SDI embedded, 48KHzsynchronous

  • Audio Output

    Digital: 16-channel 24-bit SDI embedded, 48KHzsynchronous

  • Video Formats-SD

    525i 29.97
    625i 25

  • Video Formats-3G/HD

    720p 50
    720p 59.94
    720p 60
    1080i 25
    1080i 29.97
    1080i 30
    1080PsF 23.98
    1080PsF 24
    1080PsF 25
    1080PsF
    29.97
    1080PsF 30
    1080P 23.98
    1080P 24
    1080P 25
    1080P 29.97
    1080P 30
    1080P 50
    1080P 59.94
    1080P 60

  • Video Formats-2K

    2048 x 1080P 23.976
    2048 x 1080PsF 23.976
    2048 x 1080P 24
    2048 x 1080PsF 24
    2048 x 1080P 25
    2048 x 1080PsF 25

About AJA AJA PCIe 4x Card

Corvid 3G is AJA's platform for digital 3G/HD/SD uncompressed audio and video I/O. Corvid 3G is compatible with Windows XP, Windows 7, Mac OS X and Linux via the robust and proven SDK environments. Corvid 3G is built to the highest specifications offering true broadcast-level performance within your systems and applications.

AJA AJA PCIe 4x Card Features

  • PCI Express 4 lane
  • 1 Channel 3G, HD-SDI or SD-SDI Input, 1 Channel 3G, HD-SDI or SD-SDI Output
  • 8/10 Bit YCbCr and RGB frame buffer formats
  • 1 Mixer/Keyer
  • Available in PCIe form factor (Corvid 3G) or PCIe Low Profile form factor (Corvid 3G LP)
  • 16-ch SDI Embedded Audio I/O, 24-bit 48khz
  • HD/SD Genlock, Reference Video or LTC Input (selectable)

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • PCI Express 4 lane
  • 8/10 Bit YCbCr and RGB frame buffer formats
  • 1 Mixer/Keyer
  • 16-ch SDI Embedded Audio I/O, 24-bit 48khz
