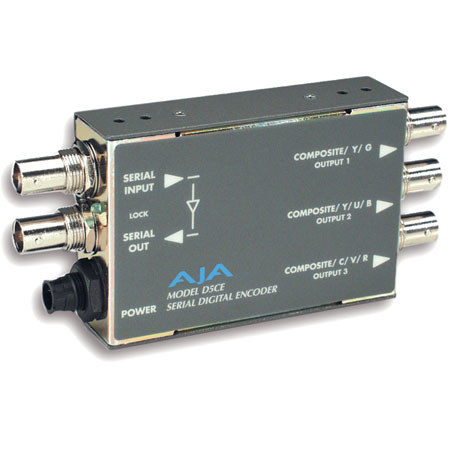

The AJA D5CE provides, all digital conversion of SDI to either composite or component analog video. Three analog BNC outputs are user configurable to cover a wide range of format combinations including 3 composite, 1 composite and Y/C, YPbPr (SMPTE, EBU-N10), Betacam, or RGB.
The D5CE also features a re-clocked, loop-thru SDI output. The D5CE automatically adapts to NTSC or PAL video standards. Pedestal and narrow/wide H/V blanking are user configurable via dip-switches.
|Inputs||SDI (SMPTE 259M), 1x BNC|
|Outputs||YPbPr - SMPTE, EBU-N10, Betacam, RGB, 3 x BNC
Or NTSC, PAL, 3 x BNC
Or NTSC/PAL and YC, 3 x BNC
Loop-Thru SDI, Re-Clocking, 1 x BNC
|User Controls||External Dipswitch
|Power||5VDC Regulated, 2 Watts, Power Supply Required (sold separately)|
|Size||5.1" x 2.4" x 1" (131 x 61 x 25mm)|
