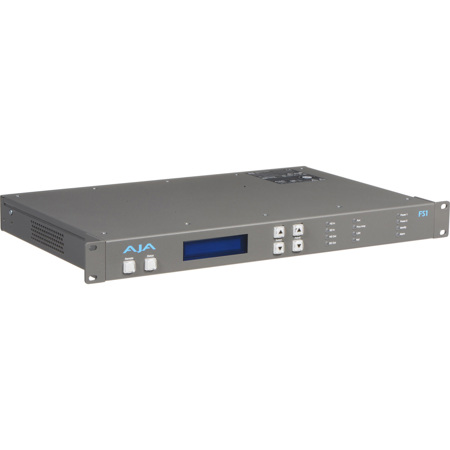

AJA FS1: Picture 1 regular

About AJA FS1

Featuring a flexible "anything in, anything out" architecture, the FS1 Universal HD/SD Audio/Video Frame Synchronizer and Converter can simultaneously work with both HD and SD video - all in full 10-bit broadcast quality video and 24-bit audio. The AJA FS1 supports virtually any input or output, analog or digital, HD or SD.

The FS1 can up-or down-convert between SD and HD and provide simultaneous HD and SD outputs. Up, Down, Cross-Conversion between HD formats are also supported, with simultaneous output of both formats. For audio, the FS1 supports 8-channel AES, balanced analog, or embedded audio with full flexibility and audio processing controls.

The FS1 supports closed captioning and the conversion of closed captioning between SD and HD formats-including full conversion of CEA-608 captions to the CEA-708 standard. The FS1 is also network ready, supporting web-based and SNMP remote control.

AJA FS1 Features

  • SD/HD up/down conversion
  • SD/SD aspect ratio conversion
  • HD/HD cross conversion (720p/1080i)
  • Up/down/cross conversion with both the input
  • and converted formats on SD/HD SDI outputs(both synchronized)
  • HD cross conversion with simultaneous downconverted
  • Closed caption support for up, down and cross-conversion
  • AFD support (Active Format Description)
  • Dual HD/SD SDI inputs and outputs
  • Component analog HD/SD input and output
  • Composite/S-video input and output with TBC
  • 8-channel AES and balanced analog audio inputs and outputs
  • 8-channel embedded audio I/O
  • Fully redundant power supplies standard
  • 10/100 LAN with SNMP and embedded web server for remote control
  • Video Proc Amp
  • Audio Channel Mapping
  • Chassis styling optimized for machine room use with simple panel and remote web browser user interfaces
  • Front panel alphanumeric and graphical display shows input/output settings and parameter viewing/editing choices
  • LED status indicators for at-a-glance system monitoring
  • Two GPI inputs and outputs, TTL, isolated
  • Register Recall/Store
  • Save/Restore to Computer
  • Tone and Test Signal Generator
  • Remote Control Panel Support

AJA FS1 Specifications

Video Inputs and Outputs
Dual HD/SD-SDI, SMPTE 259/274/292/296
HD component YPbPr/RGB (RGB is output only), SMPTE-274
SD component/composite/YC (S-Video)
Video A/D, D/A
12-bit
2x oversampled (HD)
4x oversampled (SD)
Audio Inputs and Outputs
8-channel balanced, 25 pin D (Tascam pinout)
8-channel AES (BNC)
8-channel HD/SD-SDI Embedded
Audio A/D, D/A
24-Bit, 48Khz
Audio Levels
+12dBu, +15dBu, +18dBu, +24dBu, (Full Scale Digital)
LAN
10/100 auto config., auto cable crossover
Embedded Webserver, HTTP v1.1, SNMP
GPI
2x GPI input, TTL, isolated
2x GPI output, TTL, isolated
Physical
1 RU, 12 inches deep, fan-cooled
Power
100-240 VAC, 25 watts
Fully Redundant, diode isolated
Warranty
AJA 5 years parts & labor warranty
Mfr #
FS1-R1
SKU
AJFS1
