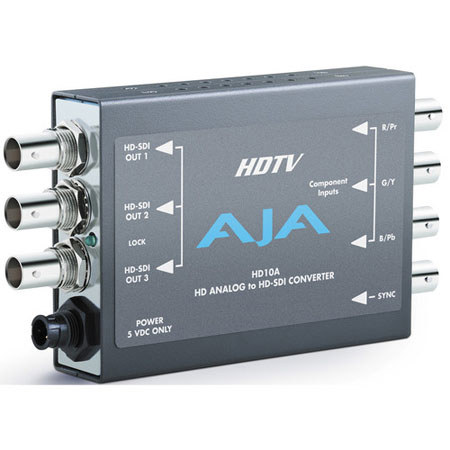

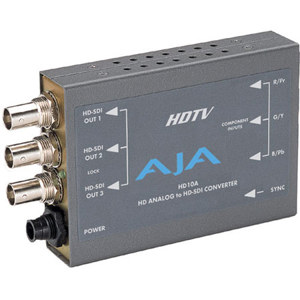

AJA Video HDTV 10-Bit Analog-to-Digital Converter for 12 Volts Operation Only

SKU: AJHD10A12V MFR: HD10A12V
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

Our Price

$990.00 $39 per week
Free Shipping
Qty:
Add to Wishlist

About this item

The HD10A HDTV 10-Bit Analog-to-Digital Converter from AJA is a miniature 10-bit analog-to-digital converter for HDTV. This unit can also serve as a companion to the HD10C D/A converter, adding an HD-SDI output to cameras, computers with HD RGB graphics, VTRs, or other analog-only HD equipment.

This unit accepts HD YPbPr or RGB analog signal and outputs duplicate HD-SDI signals. It supports 1080i, 1035i, 1080psf and 720p with internal or external sync (tri-level).

Key Features

  • Analog-to-Digital HDTV Converter: This unit is a miniature 10-bit analog-to-digital converter for HDTV
  • Add HD-SDI Output: This unit can also serve as a companion to the HD10C D/A converter, adding an HD-SDI output to cameras, computers with HD RGB graphics, VTRs, or other analog-only HD equipment
  • Formats: This converter supports 1080i, 1035i, 1080psf and 720p with internal or external sync (tri-level)

Technical Specs

Input x3 YPbPr, RGB (SMPTE-274), BNC/x1 External Sync, BNC
Output x3 HD-SDI, SMPTE-292/296, BNC
Formats 1080i @ 50/59.94/60 Hz, 1035i @ 50/50.94/60 Hz, 1080psf @ 23.98/24/25/29.97/30, 720p @ 59.94/60 Hz
Frequency Response Y +0, - .5dB to 30Mhz, C +/- .25dB to 15Mhz
Controls External Dipswitch, RGB/YPbPr Input, 59.94/60Hz (or 23.98/24, 29.97/30), Internal/External Sync
Power +5V DC Regulated, 900ma (4.5 watts), 12V optional
Dimensions (H x W x D) 5-13/16" x 3-1/8" x 1" (147mm x 79mm x 25mm)
