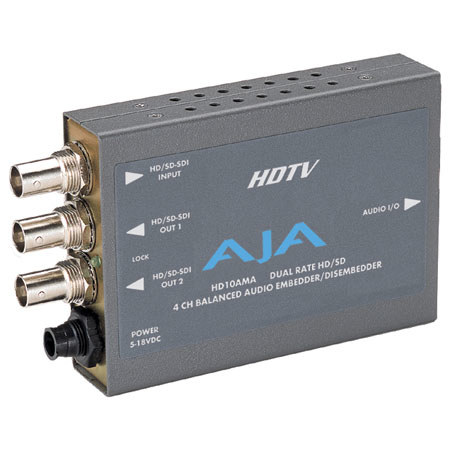

AJA HD10AMA HD/SD Analog Audio Embedder/Disembedder
See all AJA items

AJA HD10AMA HD/SD 4-Channel Analog Audio Embedder/Disembedder

SKU: AJHD10AMA
Be the first to review this item

This item is no longer available.

Overview
Compare
Accessories
Specs
Protection

Reviews about this item

Review Summary

AJA Audio Embedder Specifications

  • Formats

    HD SMPTE 292/296M
    SD SMPTE 259M(Automatic Configuration)

  • Video Input

    HD-SDI or SDI BNC

  • Video Outputs

    HD-SDI or SDI, 2x BNC

  • Audio Inputs

    4 x Balanced Analog Audio, XLR

  • Audio Outputs

    4 x Balanced Analog Audio, XLR

  • Audio Converters

    24 bit

  • Embedded Audio

    SMPTE 272M (SD): 20-bit, 48KHz synchronous
    SMPTE 299M (HD): 24 bit, 48KHz synchronous

  • Video Processing Delay

    HD Mode: 7S
    SD Mode: 19S

  • Audio Processing Delay

    Disembed Delay: 920 uS
    Embed Delay: 1200uS

  • User Controls

    External Dipswitch: Embedder on/off, Ch pairs 1/2 - 3/4
    Input group select, 1-4
    Output Group Select, 1-4
    Audio Level: Pro/Consumer, High/Low

  • Power

    5-18V, 5 watts. power supply included

  • Size

    5.8" x 3.1" x 1 (147 x 79 x 25mm)

  • Warranty

    AJA 5 years parts & labor warranty

1 Accessories for AJA HD10AMA HD/SD 4-Channel Analog Audio Embedder/Disembedder

  • All Accessories (1)
  • Batteries & Power Supply (1)
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
Core SWX XP-AJA-5 Powertap to AJA MiniConverter Cable
$152.00

About AJA Audio Embedder

The AJA HD10AMA is a dual rate 4-channel analog audio Embedder/Disembedder. The Disembedder is always functional providing 4 outputs. The Embedder is user selectable, on a channel pair basis, to either "pass" input audio or embed input audio from the breakout cable. Analog audio levels are selectable. The HD10AMA automatically detects and configures to the input video standard.

AJA Audio Embedder Features

  • Dual rate HD-SDI/SDI Embedder/Disembedder
  • 4 Channel Balanced Analog Audio I/O
  • Supplied XLR breakout cable
  • HD-SDI/SDI input, 2 HD-SDI/SDI outputs
  • Dipswitch configuration
  • 5-18VDC Power

Join VIP PRO

Earn 2X Points + Exclusive Perks!

Sell or Trade your Gear

Get started in 3 easy steps

Key Features

  • Dual rate HD-SDI/SDI Embedder/Disembedder
  • 4 Channel Balanced Analog Audio I/O
  • Supplied XLR breakout cable
  • HD-SDI/SDI input, 2 HD-SDI/SDI outputs
  • Dipswitch configuration
  • 5-18VDC Power Supply Included

What's in the box:

  • AJA HD10MA HD/SD 4-Channel Audio Embedder/Disembedder
  • XLR Breakout Cable
  • Power Supply (DWP-U-R1)
  • AJA 5 Years Parts & Labor Warranty
