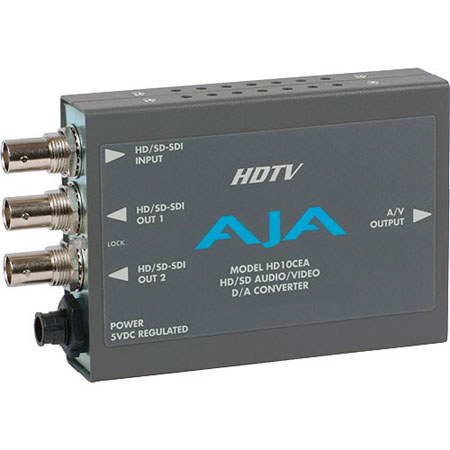

AJA HD10CEA SDI/HD-SDI to Analog Audio/Video Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

AJA
SKU: AJHD10CEA MFR: HD10CEA
AJA HD10CEA: Picture 1 thumbnail AJA HD10CEA: Picture 2 thumbnail
Made in USA
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About AJA HD10CEA

The AJA HD10CEA converts SDI/HD-SDI video with embedded audio to analog video and 4 channel balanced analog audio. SD video outputs can be configured as YPbPr (Betacam or SMPTE/EBU-N10), RGB, composite or YC (S-Video). HD video outputs can be configured as YPbPr or RGB.

Analog audio outputs are balanced. The 4 audio channels can be selected from group 1-4. Audio and video output connections are available on a 25 pin "D" subminiature connector (breakout cable supplied). All video/audio configuration is done by external dipswitch selection. This versatile, low-cost, miniature monitoring solution also outputs two loop-thru SDI/HD-SDI outputs.

AJA HD10CEA Features

  • Digital to Analog Audio and Video Converter
  • SDI/HD-SDI with Embedded Audio Input
  • SD Component or Composite Video Outputs (SD Input)
  • HD Component Video Outputs (HD Input)
  • 4 Channel Balanced Audio Output
  • 2 Equalized, Loop-Thru SD/HD-SDI Outputs
  • Selectable Audio Channel Pair/Group

AJA HD10CEA Specifications

Inputs
SDI/HD-SDI w/Embedded Audio, 1x BNC
Standard Definition inputs supported
525i 29.97 and 625i 25
High Definition inputs supported
1080p component 23.98psf/24psf
1080i component 50/59.94/60
720p component 50/59.94/60
Outputs
SD Video: YPbPr - SMPTE, EBU-N10, Betacam, RGB, NTSC, PAL, YC (S-Video)
HD Video: YPbPr, RGB
Audio: 4 Channel Balanced
Video/Audio Outputs on 25 Pin D Connector
2 SDI/HD-SDI Equalized Loop-Thru, 2x BNC
User Controls
External Dipswitch
Video Format
Pedestal
H/V Blanking
Audio Group 1 - 4
Audio Level (adjustable via switch selection)
+24, +18, +15, +12 dBu, Full Scale Digital
Power
+5-18VDC, Regulated, C2564 Watts
C256Requires Power Supply (AJA power supply model DWP or DWP-U recommended)
Size
5.8" x 3.1" x 1" (147 x 79 x 25mm)
Warranty
AJA 5 years parts & labor warranty
