AJA Video

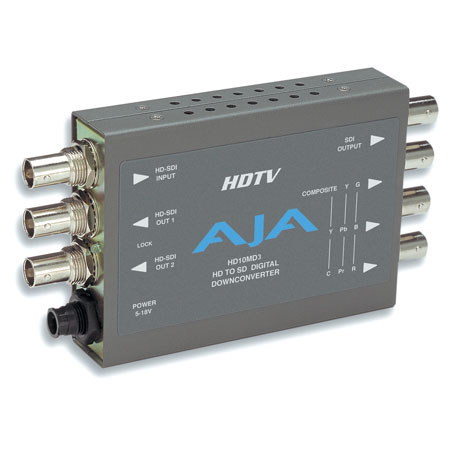

AJA HD10MD3 SDI to Standard Definition SDI and Analog Component Composite Down Converter - PLEASE NOTE: POWER SUPPLY SOLD SEPARATELY

SKU: AJHD10MD3 MFR: HD10MD3
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 5 - 7 Business days from date of order.
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

839.00
Free Shipping
Qty:

Add to Wishlist

About the AJA Video HD10MD3

The AJA HD10MD3 is a miniature digital down converter for converting HD-SDI video to standard definition SDI and analog component/composite video. The HD10MD3 uses a full 10-bit data path and multi-point interpolation to produce broadcast quality down converted video. In addition.

The HD10MD3 converts either 1080p24 or 1080p24sf to 59.94 Hz output video using the standard 3:2 pulldown technique. The output can be formatted for either 4:3 or 16:9 standard definition monitors. Four-channel input embedded HD-SDI audio is passed to the SDI output.

AJA Video HD10MD3 Features

  • Broadcast-Quality HD to SD down conversion
  • Multi-Standard
  • Dual-rate HD-SDI/SDI input
  • HD-SDI/SDI outputs
  • HD-SDI input: SMPTE 292/296 HD-SDI digital video
  • HD-SDI outputs: Equalized and buffered copy of input
  • SDI output: SMPTE 259 SDI digital video
  • Analog outputs: Component or Composite video (10 bit)
  • Input formats: 1080i 50, 59.94, 60 Hz -1080psf: 23.98, 24, 25, 29.97, 30 - 1080p: 23.9B, 24, 25, 29.97, 30 - 720p: 50, 59.94, 60 Hz
  • External Dipswitch Configuration
  • Power: 5-18V unregulated

AJA Video HD10MD3 Specifications

Formats 1080i 50/59.94/60Hz
1080p/psf 23.98/24/25/29.97/30 Hz
720p 50/59.94/60Hz(Automatic Configuration)
Inputs HD-SDI or SDI SMPTE 259/292/296, 10-bit, BNC
Outputs SDI, SMPTE 259M, 10-bit, BNC
YPbPr - SMPTE, EBU-N10, Betacam
RGB, NTSC, PAL, YC (S-Video), 10-bit
3 x BNC
Down Conversion Multi-point interpolation, 10-bit processing
3:2 conversion for 23.98/24p/psf inputs
Frequency Response Y +0, -.5db to 30 MHz
C +/- .25db to 15 MHz
User Controls External Dipswitch
Output Video Format
4:3/16:9 Monitor Select
Letterbox/Crop
Pedestal (Output)
4:3 Safe-Zone Graticule Overlay
Power 5.8" x 3.1" x 1 (147 x 79 x 25mm)
Size 5-18V, 5 watts. Requires power supply.
Warranty AJA 5 years parts & labor warranty
