AJA 1RU External Breakout Box for Kona LHe, LSe, LH
AJA Video

AJA 1RU External Breakout Box for Kona LHe, LSe, LH

SKU: AJKLBOXLH MFR: KLBOXLH
Write a Review
Ways to save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$299.00
Free shipping
Qty:

Add to Wishlist
OverviewFeaturesTech Specs

About this item

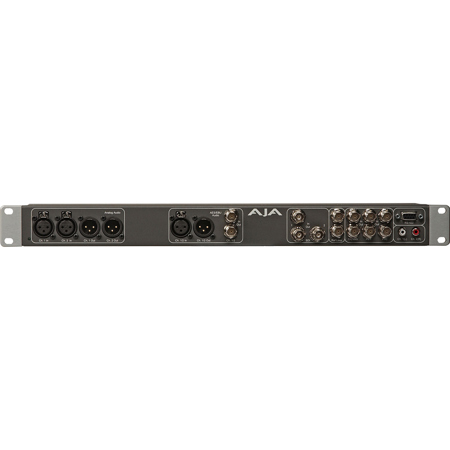

AJA's KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe offers functionality and versatility you will find in a breakout box such as this. This box can be easily rack-mounted or placed on top of a broadcast monitor or editing desk for versatility.

The KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe connects the analog and digital worlds by offering I/O for both up conversion and Dual Link. This box provides optimum quality for SD and HD, which is the maximum allowed in SMPTE SDI standards.

The KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe also includes hardware sample-rate conversion on AES inputs eliminating source-synchronizing requirements. As the only card available supporting HD/SD analog I/O, KL Box Breakout Box for Kona-LH, Kona-LHe and Kona-LSe is perfect for not only uncompressed, but also HDV and other diverse workflows.

Key Features

  • Rack-Mountable: This box can be easily rack-mounted or placed on top of a broadcast monitor or editing desk for versatility
  • Optimum Quality: This box provides optimum quality for SD and HD which is the maximum allowed in SMPTE SDI standards
  • Capturing: Using the QuickTime format, this box helps when capturing directly to 10-bit files on disk and also supports many legacy 8-bit formats for backward compatibility. This box also supports DVCPROHD and HDV, DV25, DV50, JPEG and much more
  • Audio Support: This unit offers all the audio support you would ever want including native OSX multi-channel audio and 24-bit AES/EBU digital audio at 48 kHz for digital production
  • Hardware Sample Rate: This Breakout Box for Kona-LH, Kona-LHe and Kona-LSe also includes hardware sample-rate conversion on AES inputs eliminating source-synchronizing requirements
  • Diverse Workflow: As the only card available supporting HD/SD analog I/O, this Breakout Box for Kona-LH, Kona-LHe and Kona-LSe is perfect for not only uncompressed, but also HDV and other diverse workflows

Technical Specs

Compatible with for Kona-LH, Kona-LHe and Kona-LSe
Host Connection 2 Cables (60-pin connector & RS422)
SD-SDI/HD-SDI Video/Audio SDI Output 2 BNC, SDI Output 1 BNC, SDI Input BNC
Analog Video Y/CVBS In BNC, Pb/Y In BNC, Pr/C In BNC, Y/G/CVBS Out BNC, Pb/B/Y Out BNC, Pr/R/C Out BNC, Reference Input BNC
Balanced Audio Analog Audio Channel (1 Input), Analog Audio Channel (2 Input), Analog Audio Channel (1 Output), Analog Audio Channel (2 Output), AES Input Channels 1 & 2, AES Output Channels 1 & 2
Agency Certifications: Hardware KONA-2
Agency Certifications: Software Apple Final Cut Pro 5, Adobe AfterEffects, PhotoShop, Quicktime
System Requirements Kona-LH, Kona-LHe or Kona-LSe, Mac OS X
Dimensions (W x H x D) 19 x 3 (W x H)(48.26 x 7.62cm)
Weight 7 lbs (3.175 kg)
