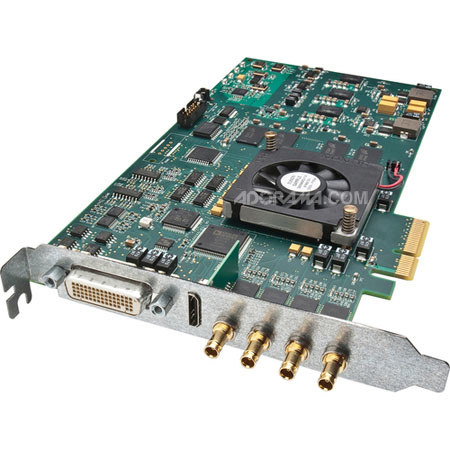

AJA KONA 3G 2K/3G/Dual Link HD/HD/SD 1-Bit PCIE Card
See all AJA items

AJA KONA 3G 2K/3G/Dual Link HD/HD/SD 10-Bit PCIE Card, HDMI 1.4a Output

SKU: AJKONA3G
Be the first to review this item

This item is no longer available.

Recommended Alternatives

undefined undefined: Picture 1 regular
AJA KONA 4 4K, 2K, 3G/Dual-Link HD/HD/SD 10-Bit PCIe Card, Breakout Box, 3xCable
$3,105.00
undefined undefined: Picture 1 regular
AJA KONA LHe Plus HD/SDI Analog Video & PCIe Card, Bundle with KL-BOX-LH-RO
$1,855.00
undefined undefined: Picture 1 regular
AJA KONA LHe Plus HD/SDI 10-Bit Digital & 12-Bit Analog Video Capture PCIe Card
$1,485.00
$1,399.00
undefined undefined: Picture 1 regular
AJA KONA-HDMI4R-R0 4-Channel 1x PCIe 2.0 HDMI Capture Card
$1,853.00
undefined undefined: Picture 1 regular
AJA KONA 5 10-Bit PCIe Card
$4,235.00
See More Recommendations
Overview
Compare
Specs
Protection

Reviews about this item

Review Summary

AJA KONA PCIE Card Specifications

  • Video Input

    Dual-rate (SD or HD)
    3Gb SD and HD-SDI, SMPTE-259/292/296/424, 10-bits
    Single Link 4:2:2
    Dual-link HD 4:4:4
    2K HSDL (High Speed Data Link) 4:4:4
    1D LUT Support (Mac and PC)

  • Video Formats 1

    480i 29.97 (PC)
    525i 23.98 (intermediate format only)
    525i 29.97
    625i 25
    720P 23.98 (intermediate format only)
    720p 24 (PC)
    720p 25 (PC)
    720p 29.97 (PC)
    720p 30 (PC)
    720P 50
    720P 59.94
    720P 60
    1080i 25
    1080i 29.97
    1080i 30
    1080PsF 23.98
    1080PsF 24
    1080PsF 25 (PC)
    1080PsF 29.97 (PC)
    1080PsF 30 (PC)
    1080p 23.98 (PC)

  • Video Formats 2

    1080P 24
    1080P 25
    1080P 29.97
    1080P 30
    1080P 50
    1080P 59.94
    1080P 60
    2048 x 1080P 23.98
    2048 x 1080P 24
    2048 x 1080PsF 23.98
    2048 x 1080PsF 24
    2048 x 1556p 15 (PC)
    2048 x 1556PsF 14.98
    2048 x 1556PsF 15
    2048 x 1556psf 23.98
    2048 x 1556PsF 24

  • Video Output

    Digital:
    3Gb SD and HD-SDI, SMPTE-259/292/296/424
    Dual-link HD 4:4:4 and 2K HSDL 4:4:4
    HDMI v1.4, 30/36 bits/pixel, RGB or YUV, 2.25Gbps
    Analog:
    SD and HD Output, 12-bits, BNC
    HD: YPbPr, RGB
    SD: YPbPr, RGB (component mode) or Composite +
    Y/C (composite mode with simultaneous Y/C)

  • Downstream Keyer

    Will output graphics with alpha channel over video, matte or framebuffer, or framebuffer content over incoming video or matte

  • Audio

    24-bit SDI embedded audio, 16 channel, 48kHz
    24-bit AES audio, 8 channel w/breakout cable or 16 channel with optional K3G-Box, 96kHz or 48kHz 24- or 16-bit capable

  • Up-Conversion

    Hardware 10-bit
    Anamorphic: full-screen
    Pillar box 4:3: results in a 4:3 image in center of screen with black sidebars
    Zoom 14:9: results in a 4:3 image zoomed slightly to fill a 14:9 image with black side bars
    Zoom Letterbox: results in image zoomed to fill full screen
    Zoom Wide: results in a combination of zoom and horizontal stretch to fill a 16:9 screen; this setting can introduce a small aspect ratio change

  • Down-Conversion

    Hardware 10-bit
    Anamorphic: full-screen
    Letterbox: image is reduced with black top and bottom added to image area with the aspect ratio preserved
    Crop: image is cropped to fit new screen size

  • Cross-Conversion

    Hardware 10-bit
    1080i to 720P
    720P to 1080i
    720P to 1080PsF

  • SD to SD Aspect Ratio Conversion

    Letterbox: This transforms SD anamorphic material to a letterboxed image
    H Crop: Will produce a horizontally stretched effect on the image; transforms anamorphic SD to full frame
    SD Pillarbox: Will produce an image in the center of the screen with black borders on the left and right sides and an anamorphized image in the center
    V Crop: Will transform SD letterbox material to an anamorphic image

  • Reference Input

    Analog Color Black (1V) or Composite Sync (2 or 4V) Non terminating, Looping, 75 ohm on K3G-Box, terminated on supplied breakout cable

  • LTC

    Input and Output, 2 BNCs

  • Machine Control

    RS-422, Sony 9-pin protocol

About AJA KONA PCIE Card

KONA 3G features 10-bit Uncompressed video I/O, the newest HDMI 1.4a support for 3D workflows, 16-channel SDI embedded audio I/O and up to 16-channel AES digital audio I/O (8 with breakout cable or 16 with optional K3G-Box). Add to that realtime hardware-based up/down/cross conversion for efficiently working with a wide variety of SD and HD, 3G, dual-link HD, even 2K formats, a hardware downstream keyer for compositing graphics without rendering and so much more.

AJA KONA PCIE Card Features

  • 2 SD/HD/3G SDI inputs and 2 SD/HD/3G SDI outputs
  • HDMI 1.4a Output for 3D workflows
  • Analog Video Output of Y, Pb, Pr, or R, G, B or CVBS and Y, C
  • 16-channel SDI embedded audio I/O
  • Up to 16-channel AES digital audio I/O
  • (8 with breakout cable or 16 with optional K3G-Box)
  • Terminating video reference input
  • Separate LTC input and output ports
  • Master or Slave configurable RS422 control port
  • Video up, down and cross conversion
  • Internal hardware keyer
  • 2K video format support
  • Additional features available with use of K3G-Box:
  • Video reference active loop output
  • Left and Right analog audio monitor output
  • Additional 8 single ended (75Ohm BNC) AES channels (providing a total 16 discrete channels of AES audio)
