AJA R20ADF Component, Composite To SDI Converter (Encoder) with FSG Card (Frame Sync) PCB Card

SKU: AJR20ADF MFR: R20ADF
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

Availability: In Stock Online In Stock Online - Usually ships within 1-2 Days

Free Shipping

See all shipping options

Ways To Save

Product Highlights

  • Various Analog Inputs
  • Can accept NTSC or PAL composite video signals
  • 4 line adaptive comb filter
  • Multiple SDI Outputs
  • Frame Synchronizer
  • Rack Frame Design
  • Converts From Component
  • Converts From Composite

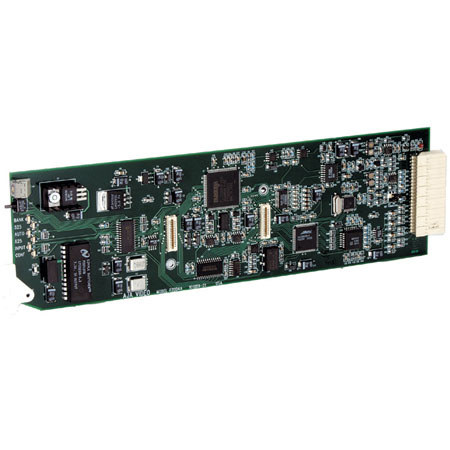

AJA R20ADF: Picture 1 regular

About AJA R20ADF

The AJA R20ADF is a Analog to Digital video convertor; it will accept a component, composite or Y/C analog video signal and convert the signal to an SDI digital video signal.

AJA R20ADF Features

  • Various Analog Inputs: This device has the ability to accept component, composite or Y/C analog video inputs
  • Multi-Standard: The R20ADF has the ability to accept NTSC or PAL composite video signals
  • Comb Filter: A four line adaptive comb filter is offered for high quality processing of composite signals
  • Multiple SDI Outputs: Four SDI outputs are offered for distribution amplifier capabilities
  • Frame Synchronizer: This model is an upgrade from the R20AD; this unit features a frame sync attachment for broadcast level operations
  • Rack Frame Design: This conversion card was designed to fit into R series AJA frames and Leitch 6800 series frames

AJA R20ADF Specifications

Input: Composite Video
On one BNC connector
Input: Component Video
On three BNC connectors
Y/C (S-Video)
On two BNC connectors
Reference
On a BNC connector
NTSC or PAL is capable on composite conversion
Output: SDI Digital Video x4
On four BNC connectors
Conversion
Component, Composite and Y/C analog video (NTSC or PAL) to SDI Digital Video (AGC and EDH selectable)
Control: External Dip Switch
Input Video Format, Pedestal, Blanking, AGC, EDH, Test Generator
Power Source
Power is derived from rack frame power supply
Dimensions (W x D x H)
Fits in R Series AJA Frames, Fits in Leitch 6800 Series Frames
Mfr #
R20ADF
SKU
AJR20ADF
