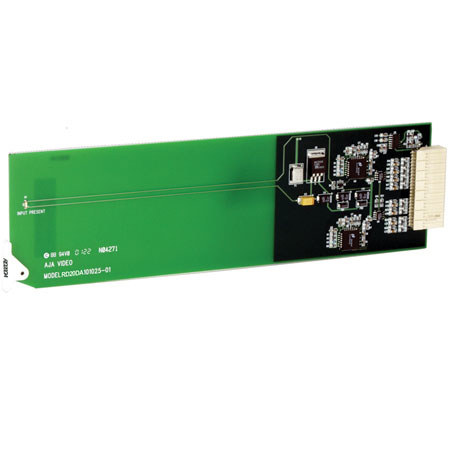

AJA Dual Channel SDI Distribution Amplifier
AJA Video

AJA Dual Channel SDI Distribution Amplifier, 1x3 and 1x4, Reclocking, Compatible with R-Series Frame and Leitch 6800 Series Frame

SKU: AJRD20DA MFR: RD20DA
Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.
Write a Review
Ways to Save
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 / 212-741-0052

Our Price

$390.00
Free Shipping (USA)
Qty:

Add to Wishlist
OverviewFeaturesTech Specs
Its never too late...Click by 8! Same day shipping.

About the AJA Video Dual Channel Amplifier

The RD20DA Dual-Channel SDI Distribution Amplifier from AJA accepts two separate SDI signals and distributes them to two separate output sections. The first section outputs three SDI signals from one input and the second outputs four SDI signals from one input. This unit uses an AJA R-Series frame or a Leitch 6800 series frame for power and operation.

AJA Video Dual Channel Amplifier Features

  • Dual Channel: This device is two distribution amplifiers in one rack card and offers both 1x3 and 1x4 SDI distribution
  • Rack Card: The RD20DA is offered as a rack card and fits into AJA and Leitch racks
  • Adaptable Input: This device automatically adapts to 143, 177, 270, or 360Mbps SDI inputs

AJA Video Dual Channel Amplifier Specifications

Input: SDI x 2 Reclocked and equalized, 143 to 360Mbps, 2 BNC connectors
Output: SDI x 7 SMPTE 259M, 3 outputs matched to input 1, 4 outputs matched to input 2, 7 BNC connectors
Video Control None
Power Source Power derived from rack frame, 3W consumption
Dimensions Fits into AJA R-series and Leitch 6800 series rack frames
Weight Less than 1 lbs
