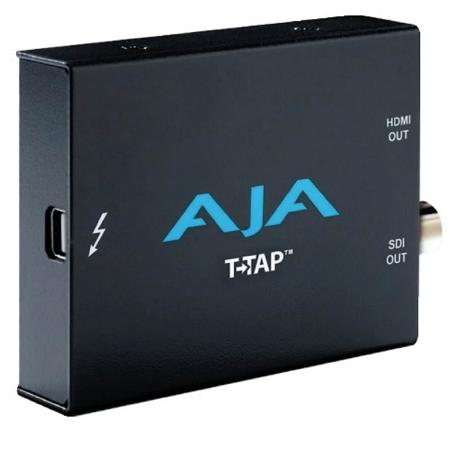

AJA T-TAP Portable Video Output

AJA
SKU: AJTTAB MFR: T-TAP
Made in USA
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

About AJA T-TAB

The AJA T-TAP provides video professionals with an inexpensive, extremely compact device that utilizes the power of Thunderbolt to deliver high-quality 10-bit SD, HD and 2K video and embedded audio output from any compatible Mac. Smaller than a deck of playing cards, T-TAP offers broadcast-quality performance you can fit in the palm of your hand.

AJA T-TAB Features

  • Thunderbolt connectivity: Simple to setup and use, T-TAP connects to your Mac via the blazing-fast Thunderbolt connection which provides the bandwidth necessary for full broadcast-quality video and audio output
  • The power of Io XT: Based on the same architecture as AJA's Io XT Thunderbolt I/O, T-TAP offers full 10-bit broadcast-quality output. 10-bit quality is far superior to DisplayPort adapters that only support 8-bit and are not true video output solutions for professional applications
  • Professional outputs: T-TAP features HD/SD SDI and HDMI outputs. The SDI output can be used to feed professional monitors or recording gear, while the HDMI output is able to feed directly into consumer HDMI monitors
  • 3D support: Need a compact solution for 3D monitoring? No problem. T-TAP can output directly from the HDMI output to 3D HDMI monitors for stereoscopic review, without the need for any additional hardware
  • Embedded audio: It may be compact, but T-TAP doesn't compromise on professional audio functionality. Full 8-channel embedded audio allows for multi-channel playback such as 5.1 - or even 7.1 mixes

AJA T-TAB Specifications

Input
1x Thunderbolt input
Video Output
1x SDI output
1x HDMI v1.3 output (Compressed 3D support)
Supported Video Formats
8-bit 4:2:2 and 10-bit 4:2:2 in the following formats:
525i 29.97
625i 25
720P 50,59.94,60
1080i 25, 29.97, 30
1080PsF 23.98, 24, 25, 29.97
1080p 23.98, 24, 25, 29.97
2K 1080p 23.98, 24, 25
2K 1080PsF 24, 25
Audio Support
24-bit SDI embedded audio, 8-channel, 48kHz
24-bit HDMI embedded audio, 8-channel, 48kHz
Dimensions (H x W x D)
2.28" x 2.95" x 1.18" / 5.8cm x 7.5cm x 3cm
