AJA Up/Down/Cross Converter, 2 Channel RCA Analog Audio Output

AJA
SKU: AJUDC MFR: UDC
Made in USA
Buy more and save
Quantity Discount
QuantityAmount

The quantity discount will be reflected in your shopping cart

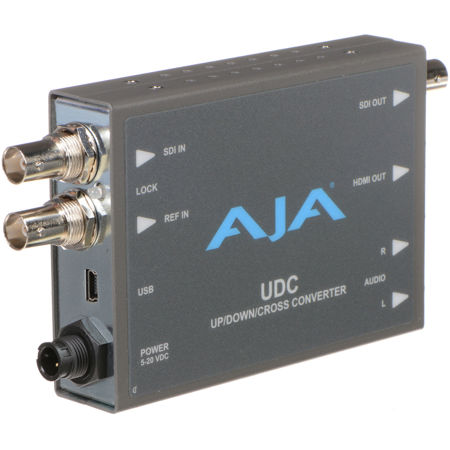

AJA Up/Down/Cross Converter: Picture 1 regular

About AJA Up/Down/Cross Converter

The AJA UDC is a broadcast quality Up/Down/Cross Mini-Converter which can convert between SD, HD and 3G video formats. Using the same AJA industry leading conversion technology as in AJA model FS2, the UDC provides very high quality conversions at a low price. I/Os include SD/HD/3G SDI Input and Output, HDMI output and 2-channel RCA style audio output. The UDC can be controlled by local dipswitches with additional control available via USB and AJA's MiniConfig application. A Reference Input allows the UDC to be locked to a local reference.

AJA Up/Down/Cross Converter Features

  • Converts between SD, HD and 3G HD formats
  • Supports 1080p50/60
  • Very high quality conversions
  • 16-channel embedded SDI audio input
  • 16-channel embedded SDI audio output
  • 8-channel HDMI audio output/li>
  • 2 RCA-style analog outputs at -10dBV (nominal)
  • Reference Input
  • Configure via Dipswitch or USB port and supplied MiniConfig software
  • Uses 5-20V power supply

AJA Up/Down/Cross Converter Specifications

SDI Input/Output
SD/HD-SDI (auto-selected), SMPTE-292/296/424, 1x BNC
SMPTE-292/296/424, 1x BNC525i, 625i
Formats
525i59.94, 625i50
1080i 50/59.94
720p 23.98/24/25/29.97/30/50/59.94/60
1080p 23.98/24/25/29.97/30/59.94/60
1080psf 23.98/24/25/29.97/30
Reference Input
Tri-Level sync
HDMI Output
10-bit HDMI v1.4a
Audio Input/Output
16-channel embedded SDI audio input
16-channel embedded SDI audio output
8-channel HDMI audio output
2 RCA-style analog outputs at -10dBV (nominal)
HDCP
The UDC does not encode the HDMI output with HDCP encryption. By definition, HD-SDI inputs to the UDC are unencrypted. The HDMI specification requires HDMI monitors to support unencrypted inputs
User Controls
USB port used with supplied cable and MiniConfig software application to configure device via PC/Mac
Power
+5VDC Regulated, 3 Watts, Power Supply Required
Dimensions
5.8x3.1x1" / 14.7x7.8x2.54cm
Mfr #
UDC
SKU
AJUDC
