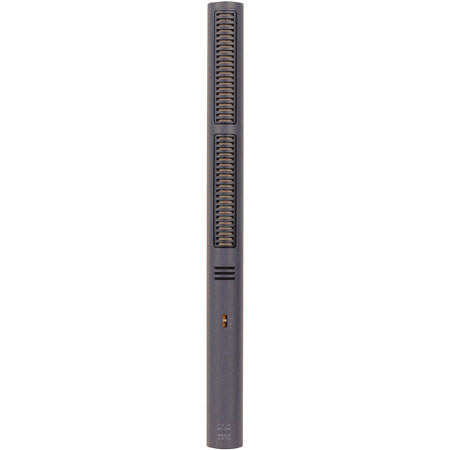

AKG Acoustcs C568B, Wired Hypercardioid Directional Short Shot Gun Microphone

Mfr. Part: 2168Z00040     SKU: AKC568B

AKG Acoustcs C568B, Wired Hypercardioid Directional Short Shot Gun Microphone
enlarge image

Free Shipping view details

Product Rating Write a Review

Please note! This is a Special Order Item and is Non Cancelable and Non Returnable.
We Charge you when you place your order. Approximate arrival at Adorama 1 - 2 Weeks from date of order.

Item Includes
C568B Short Shot Gun Mic - SA 60 Stand Adapter - W 68 Windscreen

Description
High directivity and wide frequency response in a relatively short shotgun make this microphone a perfect tool for theater, sound reinforcement, and film/TV applications.

Due to its compact and lightweight design, the C 568 B is ideal for camera mount applications. Below 500 Hz it functions as a hypercardioid microphone; above 500Hz the acoustic interference tube introduces increasing directivity.

A switchable 12 dB/octave 120 Hz bass cut filter effectively suppresses rumble andwind noise. The rugged, all-metal body contains the built-in preamp. Phantom powering (9 52 V) required; foam windscreen and stand adapter included.

Features
Compact, short shotgun microphone
Integrated, switchable bass cut filter minimizes mechanical noise
Operates on phantom power

Specifications
TypeSort Shot Gun Mic
Applications
Theater, sound reinforcement
Film/TV
Camera mount
Frequency Range20 to 20,000 Hz
Polar Patternhypercardioid/directional
Sensitivity11 mV/Pa (-39 dBV)
Max. SPL Capability128 dB
Connector3-pin XLR
S/N Ratio76 dB
Equivalent noise level(CCIR 468-3) 29 dB
Equivalent noise level: 18 dB-A
Impedance600 ohms
Recommended Load Impedance>2000 ohms
Power RequirementsSupply voltage: 9 to 52 V phantom power to DIN 45596
Current consumption: <2 mA
OtherBass filter: 12 dB/octave at 120 Hz
FinishDark gray
Dimensions21 dia. x 253 mm / 0.8 dia. x 10 in.
Net Weight160 g / 5.6 oz.
Shipping Weight715 g / 1.6 lbs.
