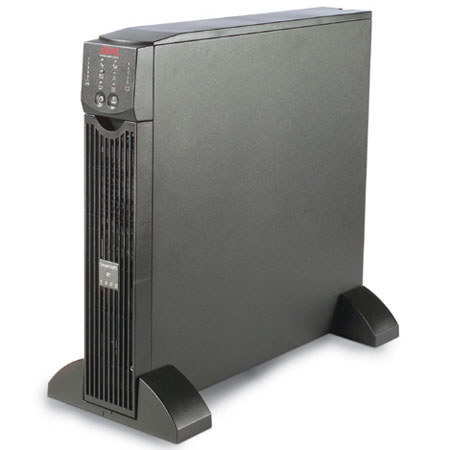

American Power Conversion (APC) Smart-UPS RT 1000VA 230V UPS, Rack Height 2 U

American Power Conversion (APC)

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About American Power Conversion (APC) Smart-UPS RT 1000VA

Using APC SURT1000XLI UPS devices, available for towers and racks, you can ensure that power supply is secured.

American Power Conversion (APC) Smart-UPS RT 1000VA Specifications

Output Power Capacity
700Watts / 1000VA
Max Configurable Power
700Watts / 1000VA
Nominal Output Voltage
Output Voltage Note
Configurable for 220: 230 or 240 nominal output voltage
Efficiency at Full Load
Output Voltage Distortion
Less than 3%
Output Frequency (sync to mains)
50/60 Hz +/- 3 Hz user adjustable +/- 0.1
Other Output Voltages
220, 240
Crest Factor
3: 1
Double Conversion Online
Waveform Type
Sine wave
Output Connections
(6) IEC 320 C13
(2) IEC Jumpers
Nominal Input Voltage
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
IEC-320 C14
Cord Length
6ft (1.82m)
Input Voltage Range for Main Operations
160 - 280V
Input voltage adjustable range
100 - 280V
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical Recharge Time
3 hour(s)
RBC Quantity
Interface Port(s)
DB-9 RS-232
Control panel
LED status display with load and battery bar-graphs and On Line: On Battery: Replace Battery: Overload and Bypass Indicators
Audible Alarm
Alarm when on battery: distinctive low battery alarm: overload continuous tone alarm
Surge Energy Rating
420 Joules
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449
Operating Environment
32 - 104deg.F (0 - 40deg.C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000ft (0-3000m)
Storage Temperature
5 - 113deg.F (-15 - 45deg.C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000ft (0-15000m)
Audible Noise at 1m
50.00 dBA
Online Thermal Dissipation
324.00 BTU/hr
Rack Height
Dimensions (HxWxD)
432x85x483mm / 17x3.34x19.01"
50.70lbs (23kg)
