American Power Conversion (APC) SUA1500RMJ2UB Smart UPS 1500VA USB & Serial 2U Rackmount UPS

American Power Conversion (APC)

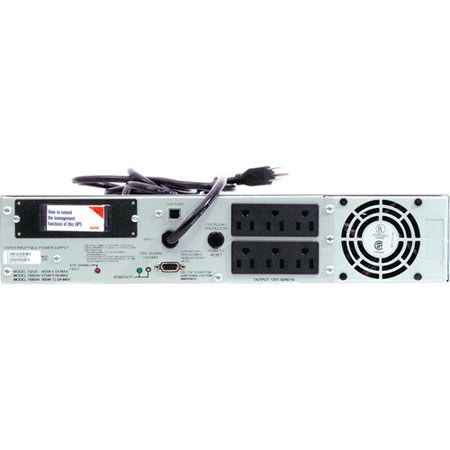

American Power Conversion (APC) SUA1500RMJ2UB: Picture 1 thumbnail American Power Conversion (APC) SUA1500RMJ2UB: Picture 2 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About American Power Conversion (APC) SUA1500RMJ2UB

The APC SUA1500RMJ2UB Smart UPS 1500VA USB & Serial 2U Rackmount UPS is a professional uninterruptible power supply designed to prevent blackouts, brownouts, sags and surges from reaching your valuable equipment. It filters small utility line fluctuations and isolates your equipment from danger by internally disconnecting it from the utility line. When disconnected from the utility line, power is provided continuously from its internal battery until normal or safe conditions return or the battery is fully discharged. This UPS can be placed on a desktop or mounted in a rack with the included hardware.

American Power Conversion (APC) SUA1500RMJ2UB Features

  • Front-access servicing : Simplifies installation and maintenance while minimizing space requirements
  • Boost and Trim Automatic Voltage Regulation (AVR): Gives higher application availability by correcting low and high voltage conditions without using the battery
  • Intelligent battery management: Maximizes battery performance, life and reliability through intelligent, precision charging
  • Power conditioning: Protects connected loads from surges, spikes, lightning and other power disturbances
  • Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature
  • Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power
  • Automatic self-test: Periodic battery self-test ensures early detection of a battery that needs to be replaced
  • Disconnected battery notification: Warns when a battery is not available to provide backup power
  • Network manageable: Provides remote management of the UPS over the network
  • Audible alarms: Actively let you know if the unit is on battery, if the battery is low or if there is an overload condition
  • LED status indicators: Quickly understand unit and power status with visual indicators
  • Serial Connectivity: Provides management of the UPS via a serial port
  • User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Predictive failure notification: Provides early-warning fault analysis ensuring proactive component replacement
  • Resettable circuit breakers: Enables a quick recovery from overload events
  • Battery failure notification: Provides early-warning fault analysis on batteries enabling timely preventive maintenance
  • Adjustable voltage-transfer points: Maximizes useful battery life by widening the input voltage window or tightening the output voltage regulation
  • Adjustable voltage sensitivity: Provides the ability to adapt the UPS for optimal performance in specific power environments or generator applications
  • Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment

American Power Conversion (APC) SUA1500RMJ2UB Specifications

Output Power Capacity
980W / 1500VA
Max Configurable Power
980W / 1500VA
Nominal Output Voltage
Output Voltage Distortion
Less than 5% at Full Load
Output Connections
(6) NEMA 5-15R
Output Frequency (sync to mains)
50/60Hz +/- 3 Hz user adjustable +/- 0.1
Line Interactive
Waveform Type
Sine wave
Nominal Input Voltage
Input Frequency
50/60 Hz +/- 3 Hz (auto sensing)
Input Connections
NEMA 5-15P
Cord Length
8' (2.44m)
Battery Type
Maintenance-free sealed Lead-Acid battery with suspended electrolyte: leakproof
Typical recharge time
3 hour(s)
RBC Quantity
Interface Port(s)
DB-9 RS-232, SmartSlot, USB
Available SmartSlot Interface Quantity
Audible Alarm
Alarm when on battery: distinctive low battery alarm: configurable delays
Surge energy rating
320 Joules
Full time multi-pole noise filtering: 0.3% IEEE surge let-through: zero clamping response time: meets UL 1449
Operating Environment
32-104deg.F (0-40deg.C)
Operating Relative Humidity
0 - 95%
Operating Elevation
0-10000' (0-3000m)
Storage Temperature
5-113deg.F (-15-45deg.C)
Storage Relative Humidity
0 - 95%
Storage Elevation
0-50000' (0-15000m)
Audible Noise
46.00 dBA at 1 meter from surface of unit
Online Thermal Dissipation
225.00 BTU/hr
Rack Height
Dimensions (HxWxD)
3.42x19.02x18.26" (8.686x48.31x46.38cm)
62.92lbs (28.54kg)
