American Power Conversion (APC)

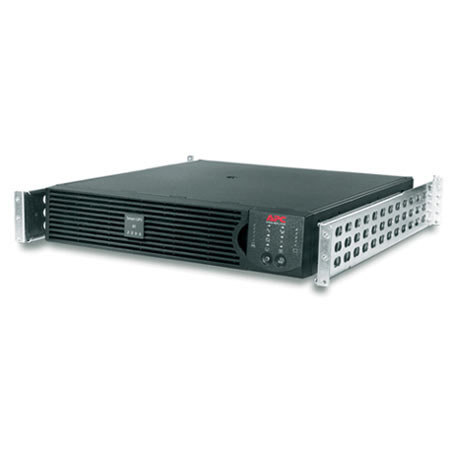

American Power Conversion (APC) Smart-UPS RT 2200VA RM 120V Tower/Rack Mountable UPS

SKU: APCA2200RXL2 MFR: SURTA2200RMXL2U
Ships in 1-2 business days
Why Adorama?
Easy Returns, Fast Shipping, Trusted for over 35 years.

Need help? Call 800-223-2500 212-741-0052

About this item

The APC Smart-UPS RT 2200VA RM 120V Tower/Rack Mountable UPS provides high density, true double-conversion on-line power protection for servers, voice / data networks, medical labs and light industrial applications. Capable of supporting loads from 1 to 20kVA in a rack/tower convertible form, the Smart-UPS On-Line is available from 2U to 12U.

Recent family extensions at 15 and 20kVA enable support of power hungry blade servers or heavily loaded equipment racks. When business-critical systems require runtime in hours, not minutes, Smart-UPS On-Line can be configured with matching battery packs to comply with aggressive runtime demands.

What's Included With This Item

  • APC Smart-UPS RT 2200VA RM 120V Tower/Rack Mountable UPS
  • Documentation CD
  • Installation Guide
  • Rack Mounting
  • Support Rails
  • Smart UPS Signaling RS-232 Cable
  • USB Cable
  • User Manual
  • APC 2 Years Warranty

Key Features

  • Automatic internal bypass: Supplies utility power to the connected loads in the event of a UPS overload condition or fault
  • Scalable runtime: Allows additional run time to be quickly added as needed
  • Intelligent battery management: Maximizes battery performance, life and reliability through intelligent, precision charging
  • Hot-swappable batteries: Ensures clean, uninterrupted power to protected equipment while batteries are being replaced
  • Automatic restart of loads after UPS shutdown: Automatically starts up the connected equipment upon the return of utility power
  • Temperature-compensated battery charging: Prolongs battery life by regulating the charge voltage according to battery temperature
  • Network manageable: Provides remote management of the UPS over the network
  • InfraStruXure Manager Compatible: Enables centralized management via the APC InfraStruXure Manager
  • SmartSlot: Customize UPS capabilities with management cards
  • LED status indicators: Quickly understand unit and power status with visual indicators
  • Serial Connectivity: Provides management of the UPS via a serial port
  • Plug-and-Play external batteries: Ensures clean, uninterrupted power to the loads when adding extra run time to the UPS
  • Rack/Tower convertible: Protects the initial investment in the UPS when migrating from tower to rack-mount environment
  • Flash upgradeable firmware: Install maintenance releases of firmware remotely using FTP
  • User-replaceable batteries: Increases availability by allowing a trained user to perform upgrades and replacements of the batteries reducing Mean Time to Repair (MTTR)
  • Automatic self-test: 'Periodic battery self-test ensures early detection of a battery that needs to be replaced
  • Predicitive failure notification: Provides early-warning fault analysis ensuring proactive component replacement
  • Disconnected battery notification: Warns when a battery is not available to provide backup power
  • Audible alarms: Provides notification of changing utility power and UPS conditions
  • Frequency and voltage regulation: Gives higher application availability by correcting poor frequency and voltage conditions without using the battery
  • Power conditioning: Protects connected loads from surges, spikes, lightning and other power disturbances
  • Input power factor correction: Minimizes installation costs by enabling the use of smaller generators and cabling
  • Generator compatible: Ensures clean, uninterrupted power to protected equipment when generator power is used
  • Cold-start capable: Provides temporary battery power when the utility power is out. Resettable circuit breaker: Easy recovery from overloads; no need to replace a fuse
  • Safety-agency approved: Ensures the product has been tested and approved to work safely with the connected service provider equipment and within the specified environment

Technical Specs

Output: Output Power Capacity 1600 Watts / 2200 VA
Output: Max Configurable Power 1600 Watts / 2200 VA
Output: Nominal Output Voltage 120V
Output: Output Voltage Distortion Less than 3%
Output: Output Frequency (sync to mains) 50/60 Hz +/- 3 Hz User Adjustable +/- 0.1
Output: Crest Factor 3:01
Output: Topology Double Conversion Online
Output: Waveform Type Sine wave
Output: Output Connections (6) NEMA 5-15R
Output: Bypass Built-in Bypass
Input: Nominal Input Voltage 120V
Input: Input Frequency 50/60 Hz +/- 5 Hz (Auto Sensing)
Input: Input Connections NEMA 5-20P
Input: Cord Length 6' / 1.82m
Input: Input Voltage Range 90 - 150V (for Main Operations)
Battery Type Maintenance-Free Sealed Lead-Acid Battery with Suspended Electrolyte: Leakproof
Battery Modules 1 (Included)
Typical Recharge Time 3 hour(s)
Replacement Battery RBC57
RBC Quantity 1
Extended Run Options APC Smart-UPS RT 2200VA RM 120V
Interface Port(s) DB-9 RS-232, Smart-Slot, USB
Control panel LED Status Display with Load and Battery Bar-Graphs And On Line: On Battery: Replace Battery: Overload and Bypass Indicators
Audible Alarm Alarm When on Battery: Distinctive Low Battery Alarm: Overload Continuous Tone Alarm
Emergency Power Off Yes (EPO)
Protection: Surge Energy Rating 540 Joules
Protection: Filtering Full Time Multi-Pole Noise Filtering: 0.3% IEEE Surge Let-Through: Zero Clamping Response Time: Meets UL 1449
Units per Pallet 8.00
Rack Height 2U
Operating Environment 32 - 104 deg.F / 0 - 40 deg.C
Operating Relative Humidity 0 - 95%
Operating Elevation 0-10000' / 0-3048m
Storage Temperature -4 - 122 deg.F / -20 - 50 deg.C
Storage Relative Humidity 0 - 95%
Storage Elevation 0-50000' / 0-15240m
Audible Noise 45.00 dBA at 1 Meter from Surface of Unit
Online Thermal Dissipation 587.00 BTU/hr
Regulatory Approvals BSMI, CSA, FCC Part 15 Class B, OSHPD, UL 1778
RoHS Compliant
REACH REACH: Contains No SVHCs
Dimensions 85x432x559mm / 3.34x17x22"
Weight 27.50 kg / 60.62 lbs
