American Power Conversion (APC) ACF503 Roof Fan Tray for NetShelter SX 750mm Enclosures

American Power Conversion (APC)
American Power Conversion (APC) ACF503: Picture 1 thumbnail American Power Conversion (APC) ACF503: Picture 2 thumbnail American Power Conversion (APC) ACF503: Picture 3 thumbnail

Our Price

Buy more and save
Quantity Discount

The quantity discount will be reflected in your shopping cart

About American Power Conversion (APC) ACF503

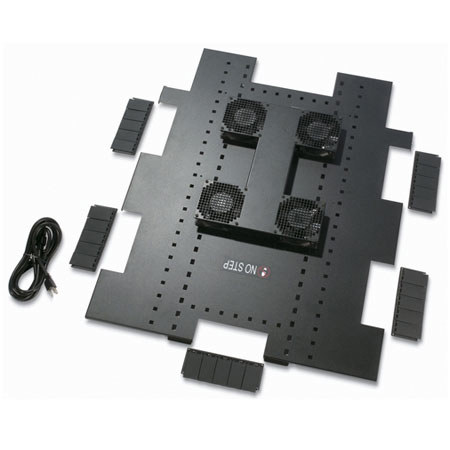

The APC ACF503 Sx Roof Fan Tray is a solution that aids in heat removal from a Netshelter Enclosure. The system easily installs into the top of the enclosure and expels heat from the roof of the rack. Wall-mounted enclosures have the additional option of installing the rack fan tray systems in the base of the rack as well. The fan trays are designed to promote bottom to top airflow within the enclosure.

American Power Conversion (APC) ACF503 Specifications

APC NetShelter SX 750mm Enclosures
Maximum Air Flow
440 CFM
Maximum Noise Level
51 dB(A)
Input Voltage
120 V AC
Dimensions (HxWxD)
2.4x28.5x35.2" (6.09x72.39x89.40cm)
Weight (Approximate)
22.58lbs (10.24kg)
